Eaton Tripp Lite N785-001-LC-MM 10/100/1000 LC Multimode Fiber to Ethernet Media Converter, 1804.46' (550 m), 850nm
N785-001-LC-MM|TC-N785001LC
Eaton Tripp Lite N785-001-LC-MM 10/100/1000 LC Multimode Fiber to Ethernet Media Converter, 1804.46' (550 m), 850nm
N785-001-LC-MM|TC-N785001LC
Key Features
What's Included
- 10/100/1000 UTP to Multimode Fiber conversion
- Supports up to 550ms range
- Auto-detects Full/Half Duplex Transfer Mode
Key Features
What's Included
- 10/100/1000 UTP to Multimode Fiber conversion
- Supports up to 550ms range
- Auto-detects Full/Half Duplex Transfer Mode
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
What's Included
- 10/100/1000 UTP to Multimode Fiber conversion
- Supports up to 550ms range
- Auto-detects Full/Half Duplex Transfer Mode
Eaton Tripp Lite
Eaton Tripp Lite N785-001-LC-MM 10/100/1000 LC Multimode Fiber to Ethernet Media Converter, 1804.46' (550 m), 850nm
N785-001-LC-MM | TC-N785001LC
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

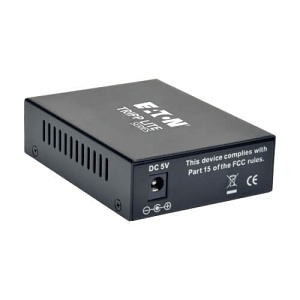

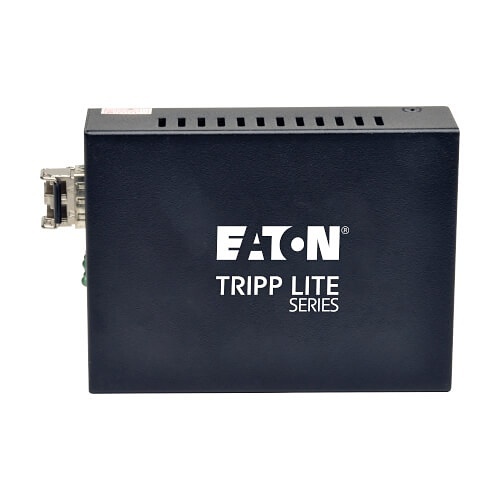

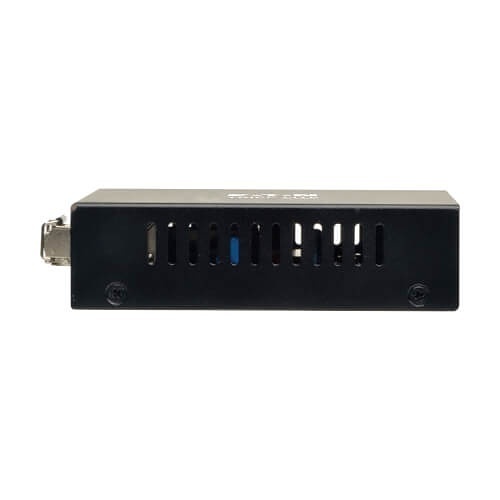

The N785-001-LC-MM 10/100/1000 to Multimode Media Converter (RJ45 to LC) is an economical way to extend the distance of network nodes up to 550 meters by converting Cat5e UTP cables to Multimode Fiber Optic. The Media Converter features automatic MDI/MDI-X configuration, and the UTP port senses the network speed automatically. Auto-detects half or full duplex operation on the fiber port. Power supplied by small form factor AC adapter.
Main Features
- 10/100/1000 UTP to Multimode Fiber conversion
- Supports up to 550ms range
- Auto-detects Full/Half Duplex Transfer Mode
- Auto Negotiation MDI/MDI-X

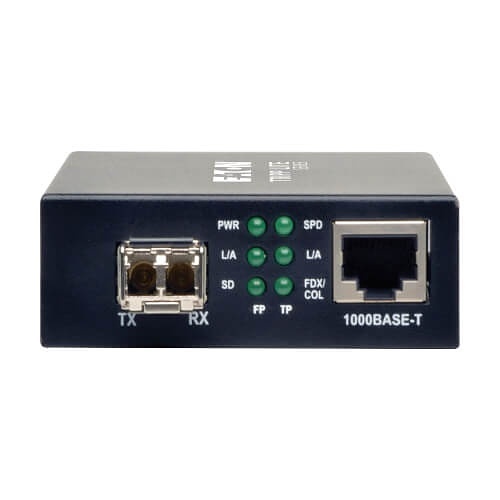

- 6 performance monitoring LEDs
- Operates at 850nm wavelength
- Compact and small design
- Supports Multimode 50/125 and 62.5/125 cables
General Information
Name: Eaton Tripp Lite N785-001-LC-MM 10/100/1000 LC Multimode Fiber to Ethernet Media Converter, 1804.46' (550 m), 850nm
Category: Video Surveillance, Data Comm & Networking, Networking Devices, Media Converters & Transceivers, Media Converters, Media Converters
UPC Code: 037332183927
Country of Origin: China. Country of origin is subject to change.
Specifications
-
ADI Part Number TC-N785001LC Brand Name Eaton Tripp Lite Manufacturer Eaton Manufacturer Part Number N785-001-LC-MM Packaged Quantity 1 Product Model N785-001-LC-MM Product Name 10/100/1000 LC Multimode Media Converter, 550M, 850nm Product Type Transceiver/Media Converter Weight 1lb
-
Media Type Supported Optical Fiber, Twisted Pair
-
Network (RJ-45) Yes Number of LC Ports 1 Number of Network (RJ-45) Ports 1 Number of Ports 2
-
Network Technology 10/100/1000Base-T, 1000Base-SX
-
Ethernet Technology Gigabit Ethernet
-
Color Black Depth 2.8" Height 1" Width 4.7"
-
Input Voltage 5V DC Power Source AC Adapter
-
Limited Warranty 2-Year
-
Country of Origin CN Environmental Certification RoHS, WEEE Environmentally Friendly Yes Package Contents - 10/100/1000 LC Multimode Media Converter, 550M, 850nm
- External Power Supply with NEMA 1-15P Plug (Input: 100-240V, 50/60Hz; Output: 5V, 1.2A)
