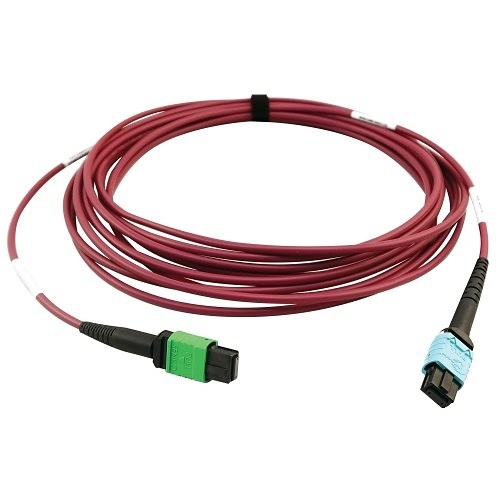

Eaton Tripp Lite N846D-05M-16CMG Fiber Optic Patch Cable
Eaton Tripp Lite N846D-05M-16CMG Fiber Optic Patch Cable
- 400 GbE Cable for high bandwidth data and voice networking
- Supports 400G Ethernet applications up to 100 m
- MTP/MPO Connectors for QSFP-DD transceivers
- 400 GbE Cable for high bandwidth data and voice networking
- Supports 400G Ethernet applications up to 100 m
- MTP/MPO Connectors for QSFP-DD transceivers
Sign In for Dealer Pricing
Become an ADI Customer- 400 GbE Cable for high bandwidth data and voice networking
- Supports 400G Ethernet applications up to 100 m
- MTP/MPO Connectors for QSFP-DD transceivers

Eaton Tripp Lite N846D-05M-16CMG Fiber Optic Patch Cable
N846D-05M-16CMG | TC-N846D05M1
Please sign in to view pricing and availability and to add to cart.
Product Overview
400 GbE Cable Supports Higher Bandwidths Needed for Next-Gen Data and Voice Networking
As the amount of traffic in data networks grows, so does the need for next-generation devices and fiber cables to support much higher bandwidths in cloud services, hyperscale data centers, telecom applications and equipment OEM companies. This multimode 50/125 OM4 cable is an ideal choice for 400G Ethernet applications up to 100 meters (at 850 nm). It has documented insertion loss and back reflection testing on every connector and attenuation loss that meets or exceeds current standards.

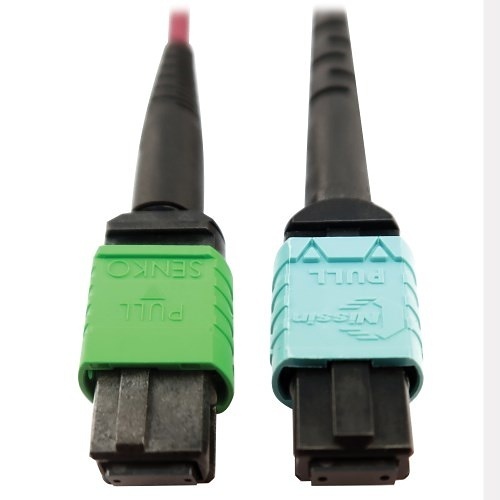

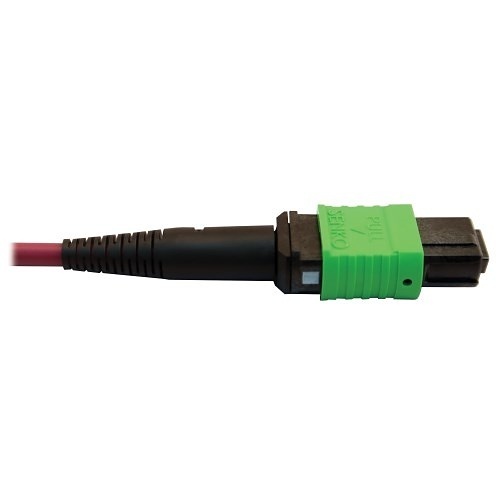

16-Fiber and 24-Fiber MTP/MPO Connectors Designed for the Latest QSFP-DD Transceivers
The MPO connectors have a wide parallel optical interface for use with the latest 400G QSFP-DD transceivers, making this cable an excellent solution for your high-density network application. The connectors are the same size as standard SC connectors, but 12 times denser, allowing vertical stacking in switches or patch panels where space is at a premium. Pull tabs make the cable easy to install or remove with one hand.
Magenta Jacket Helps Avoid Misidentification That Can Cause Costly Downtime
The OM4-rated cable has a magenta jacket, which is easy to identify quickly in a crowded patch panel or switch and helps prevent the cable from becoming accidentally disconnected. The three-millimeter ruggedized plenum-rated jacket has low smoke and flame characteristics, making it suitable for premise applications in ceilings, walls and ducts.
Main Features
- 400 GbE Cable for high bandwidth data and voice networking
- Supports 400G Ethernet applications up to 100 m
- MTP/MPO Connectors for QSFP-DD transceivers
- 12 Times denser than standard SC Connectors
- Easy installation with pull tabs
- Magenta jacket for quick identification
- Plenum-rated jacket for low smoke and flame
- Ideal for cloud services and data centers
General Information
Specifications
-
ADI Part Number TC-N846D05M1 Brand Name Eaton Tripp Lite Manufacturer Eaton Manufacturer Part Number N846D-05M-16CMG Product Model N846D-05M-16CMG Product Name N846D-05M-16CMG Fiber Optic Network Cable Product Type Network Cable
-
Cable Rating Plenum Cable Type Fiber Optic Connector on First End 1 x MTP/MPO Female Network, 16- Connector on Second End 1 x MTP/MPO Female Network, 24- Core/Cladding Diameter 50/125 µm Device Supported Network Device, Network Switch, Patch Panel, Transceiver Fiber Category OM4 Fiber Optic Mode Multimode Jacket Material PVC Jacket Type OFNP, Plenum Solid or Stranded Stranded
-
Fiber Count 16
-
Data Transfer Rate 400 Gbit/s
-
Application/Usage Commercial Cable Length 16.4' Color Magenta
-
Limited Warranty Lifetime
-
Compatibility For horizontal premise applications in air ducts and drop ceilings Country of Origin CN Environmental Certification REACH, RoHS Environmentally Friendly Yes Features Angled Physical Contact (APC), Rugged, Stranded Package Contents - N846D-05M-16CMG 400G Multimode 50/125 OM4 Fiber Optic Cable, Magenta, 5 m
