Eaton Tripp Lite NG5 5-Port 10/100/1000 Mbps Desktop Gigabit Ethernet Unmanaged Switch, Metal Housing, Supports Auto MDI/MDIX Cross-Over Function
NG5|TC-NG5
Eaton Tripp Lite NG5 5-Port 10/100/1000 Mbps Desktop Gigabit Ethernet Unmanaged Switch, Metal Housing, Supports Auto MDI/MDIX Cross-Over Function
NG5|TC-NG5
Key Features
What's Included
- 5 RJ45 Gigabit Ethernet ports
- Auto-negotiable 10/100/1000 Mbps
- 10 Gbps switching capacity
Key Features
What's Included
- 5 RJ45 Gigabit Ethernet ports
- Auto-negotiable 10/100/1000 Mbps
- 10 Gbps switching capacity
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
What's Included
- 5 RJ45 Gigabit Ethernet ports
- Auto-negotiable 10/100/1000 Mbps
- 10 Gbps switching capacity
Eaton Tripp Lite
Eaton Tripp Lite NG5 5-Port 10/100/1000 Mbps Desktop Gigabit Ethernet Unmanaged Switch, Metal Housing, Supports Auto MDI/MDIX Cross-Over Function
NG5 | TC-NG5
Please sign in to view pricing and availability and to add to cart.
Recommended
0E-5PGIGUN | 0E-5PGIGUN
0E-5PGIGUN | 0E-5PGIGUN
Sign In for Dealer Pricing
Accessories
Battery Packs
ADI # WT-OVRC1500U
MODEL # WT-OVRC1500U
WT-OVRC1500U|WT-OVRC1500U
Sign In for Dealer Pricing
Overview
Specifications
Documents
Product Overview
The NG5 5-Port 10/100/1000 Mbps Desktop Gigabit Ethernet Unmanaged Switch adds 10/100/1000 Mbps Ethernet capacity to your home office, small office, workgroup or creative production environment. Share large bandwidth-intensive files, such as CAD drawings and videos, at Gigabit speeds, improving efficiency and cutting costly downtime. This desktop switch features five twisted-pair RJ45 Gigabit Ethernet ports that support auto-negotiable 10/100/1000 Mbps and auto MDI/MDIX cross-over detection functions for convenient plug-and-play capability. No configuration is required, so you can have your Gigabit network up and running immediately. Easy-to-read LEDs indicate connection and activity status for each port. IEEE 802.3x flow control allows smooth transmission of large files. The NG5 supports IEEE 802.3az Energy Efficient Ethernet standards by putting unused ports into a low-power state without interrupting network connections. It consumes very little input power, just a single watt. The detachable five' input cord with NEMA 1-15P plug connects to a protected UPS, generator or mains input AC source. The heavy-duty metal housing includes keyhole tabs for optional wall-mounting.
Main Features
- 5 RJ45 Gigabit Ethernet ports
- Auto-negotiable 10/100/1000 Mbps
- 10 Gbps switching capacity
- Easy-to-read LED Indicators
- Supports 9k jumbo frames
- Energy Efficient Ethernet Compliant
- Fanless design for silent operation
- Plug-and-play setup
- Compatible with popular web browsers
General Information
Name: Eaton Tripp Lite NG5 5-Port 10/100/1000 Mbps Desktop Gigabit Ethernet Unmanaged Switch, Metal Housing, Supports Auto MDI/MDIX Cross-Over Function
Category: Video Surveillance, Data Comm & Networking, Networking Devices, Hubs, Routers & Switches, Network Switches, Network Switches
UPC Code: 037332194770
Country of Origin: China. Country of origin is subject to change.
Specifications
-
ADI Part Number TC-NG5 Brand Name Eaton Tripp Lite Manufacturer Eaton Manufacturer Part Number NG5 Packaged Quantity 1 Product Model NG5 Product Name 5-Port 10/100/1000 Mbps Desktop Gigabit Ethernet Unmanaged Switch, Metal Housing Product Type Ethernet Switch Weight 8.82oz
-
Media Type Supported Twisted Pair Network Switch Type Unmanaged
-
TAA Compliant Yes
-
Connector Type NEMA 1-15P Modular No Total Number of Network Ports 5 Uplink Port No
-
Manageable No
-
Network Technology 1000Base-T
-
Ethernet Technology Gigabit Ethernet Layer Supported 2
-
Depth 3.1" Height 1.1" Width 5.5"
-
Power Source AC Adapter
-
Limited Warranty 5-Year
-
Country of Origin CN Environmental Certification RoHS, WEEE Environmentally Friendly Yes Features EN 55022; EN 55024; EN 60950-1; IEC 60950-1; NOM (Mexico) Package Contents - NG5 5-Port 10/100/1000 Mbps Desktop Gigabit Ethernet Unmanaged Switch

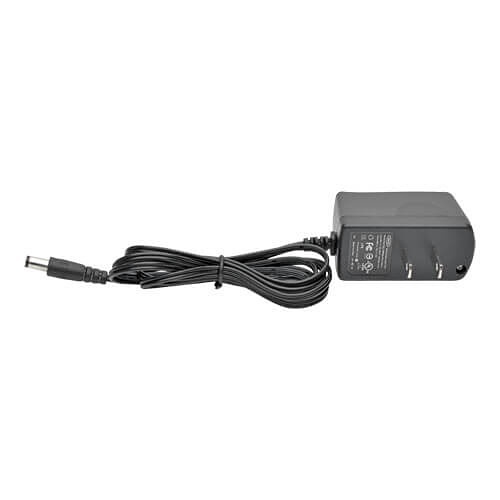

- External power supply w/NEMA 1-15P plug and 5 ft. cord
- Owner’s manual
