Tripp Lite NGI-S05C2POE4 5-Port Lite Managed Industrial Gigabit Ethernet Switch, 10/100/1000 Mbps

Brand: Tripp Lite by Eaton
ADI #:TC-NGIS05C2P Model #: NGI-S05C2POE4  Name: Tripp Lite NGI-S05C2POE4 5-Port Lite Managed Industrial Gigabit Ethernet Switch, 10/100/1000 Mbps
  • 5 Auto-negotiable RJ45 and 2 GbE SFP ports connect devices over a LAN
  • PoE+ Ports deliver up to 30W each with a total PoE budget up to 240W
  • Industrial-grade switch supports operating temperature range of -10° to 60°C

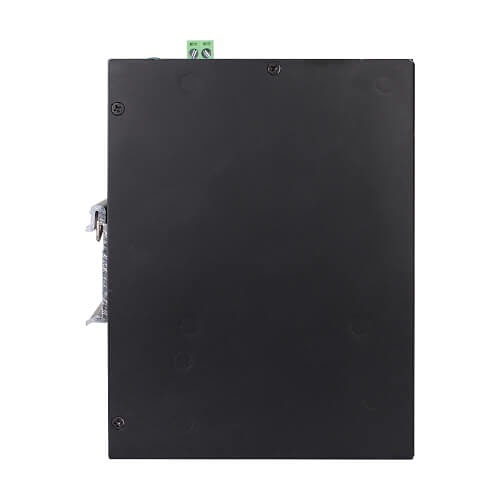

Image of TC-NGIS05C2P

Product Overview

Lite Managed switch expands 1G Ethernet connectivity to warehouses and other environments with space constraints and wide temperature ranges.

General Information

Name : Tripp Lite NGI-S05C2POE4 5-Port Lite Managed Industrial Gigabit Ethernet Switch, 10/100/1000 Mbps , Tripp Lite by Eaton
Category : Network Switches
UPC Code :

Specifications

General Information

ADI Part Number : TC-NGIS05C2P
Brand Name : Tripp Lite by Eaton
Manufacturer : Tripp Lite by Eaton
Manufacturer Part Number : NGI-S05C2POE4
Product Model : NGI-S05C2POE4
Product Name : NGI-S05C2POE4 Ethernet Switch
Product Type : Ethernet Switch
Weight (Approximate) (g) : 861.826

Technical Information

Media Type Supported : Twisted Pair
Network Switch Type : Managed
Power Consumption : 14W

I/O Expansions

Expansion Slot Type : SFP (mini-GBIC)
Number of SFP Slots : 2
Number of Total Expansion Slots : 2
Shared SFP Slot : No

Interfaces/Ports

Modular : Yes
Network (RJ-45) : Yes
Port/Expansion Slot Details : 2 x Gigabit Ethernet Uplink, 5 x Gigabit Ethernet PoE+
Total Number of Network Ports : 5
Uplink Port : Yes

Management & Protocols

Manageable : Yes

Media & Performance

Network Technology : 10/100/1000Base-T, 1000Base-SX/LX, 1000Base-X, 100Base-FX

Network & Communication

Ethernet Technology : 10 Gigabit Ethernet
Layer Supported : 2
Networking Standards : IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

Physical Characteristics

Depth : 4.7"
Depth (mm) : 119.888

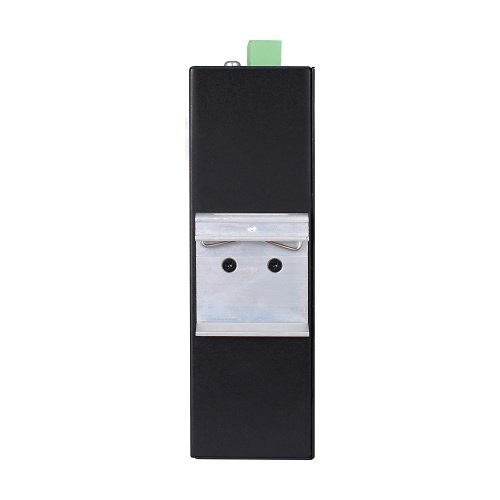

Form Factor : DIN Rail Mount
Height : 6.3"
Height (mm) : 160.02
Product Material : Metal
Weight (Approximate) : 1.90 lb
Width : 2"
Width (mm) : 50.038

Power Description

Plug/Connector Type : Terminal Block
PoE (RJ-45) Port : Yes
PoE Budget : 120W
PoE Budget (W) : 120
Power Consumption (W) : 14.000

Warranty

Limited Warranty : 3 Year

Miscellaneous

Environmentally Friendly : Yes
Package Contents : <ul> <li>NGI-S05C2POE4 Ethernet Switch</li> <li>DIN Rail-mounting Clip (Pre-installed)</li> </ul>
TAA Compliant : Yes
