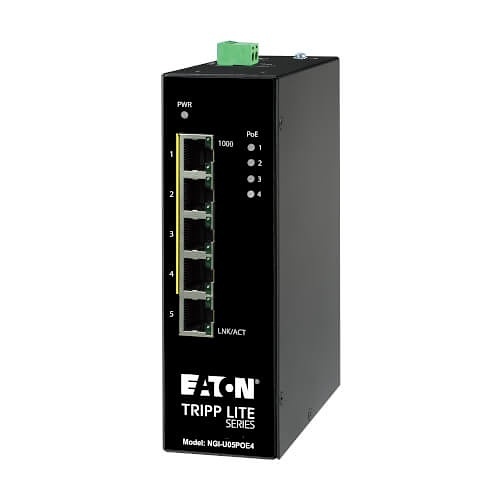

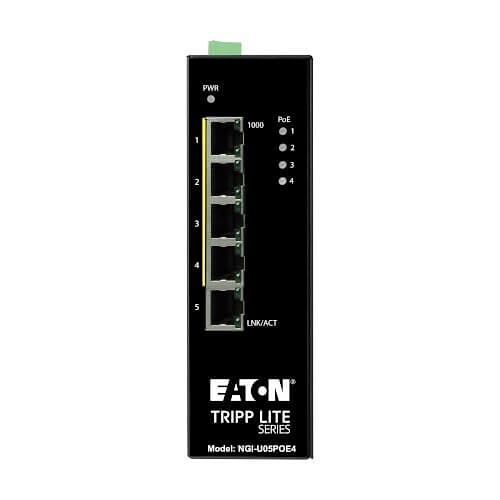

Eaton Tripp Lite NGI-U05POE4 5-Port Unmanaged Industrial Gigabit Ethernet Switch, 30W

NGI-U05POE4|TC-NGIU05POE

Eaton Tripp Lite NGI-U05POE4 5-Port Unmanaged Industrial Gigabit Ethernet Switch, 30W

NGI-U05POE4|TC-NGIU05POE
Key Features
What's Included
  • 5-Port Unmanaged Gigabit Ethernet Switch
  • Supports 10/100/1000 Mbps speeds
  • PoE+ Ports deliver up to 30W Power
Key Features
What's Included
  • 5-Port Unmanaged Gigabit Ethernet Switch
  • Supports 10/100/1000 Mbps speeds
  • PoE+ Ports deliver up to 30W Power

Sign In for Dealer Pricing

Become an ADI Customer
Key Features
What's Included
  • 5-Port Unmanaged Gigabit Ethernet Switch
  • Supports 10/100/1000 Mbps speeds
  • PoE+ Ports deliver up to 30W Power
Eaton Tripp Lite

Eaton Tripp Lite NGI-U05POE4 5-Port Unmanaged Industrial Gigabit Ethernet Switch, 30W

NGI-U05POE4 | TC-NGIU05POE

Please sign in to view pricing and availability and to add to cart.

Accessories

W Box 0E-C6BL36 CAT6 Patch Cable, 3' (0.91m), 6-Pack, Blue
ADI # 0E-C6BL36
MODEL # 0E-C6BL36
Sign In for Dealer Pricing
W Box 0E-C6BL76 CAT6 Patch Cable, 7' (2.13m), 6-Pack, Blue
ADI # 0E-C6BL76
MODEL # 0E-C6BL76
Sign In for Dealer Pricing
Image of TC-N001001BL
ADI # TC-N001001BL
MODEL # N001-001-BL
Sign In for Dealer Pricing
Image of TC-N001010BK
ADI # TC-N001010BK
MODEL # N001-010-BK
Sign In for Dealer Pricing
Image of TC-N002010BK
ADI # TC-N002010BK
MODEL # N002-010-BK
Sign In for Dealer Pricing
Image of TC-N200025BK
ADI # TC-N200025BK
MODEL # N200-025-BK
Sign In for Dealer Pricing
Image of TC-N201001BK
ADI # TC-N201001BK
MODEL # N201-001-BK
Sign In for Dealer Pricing
Image of TC-N201010BK
ADI # TC-N201010BK
MODEL # N201-010-BK
Sign In for Dealer Pricing
Image of TC-N201015BK
ADI # TC-N201015BK
MODEL # N201-015-BK
Sign In for Dealer Pricing
Image of TC-N201020BK
ADI # TC-N201020BK
MODEL # N201-020-BK
Sign In for Dealer Pricing
Overview
Specifications
Documents

Product Overview

5-Port Unmanaged Gigabit Ethernet Switch Connects Your Devices to a LAN
This space-saving Tripp Lite Power over Ethernet (PoE) switch transmits both power and data over a Gigabit Ethernet network. Five auto-negotiating 10/100/1000 Mbps ports send data only to the devices designated to receive it, which improves the efficiency and potential throughput of the network.

PoE+ Ports Deliver Power to Devices Without Access to AC Outlets
This unmanaged switch features four PoE ports capable of powering compatible devices, such as cameras, sensors, clocks, digital signage and wireless access points, without the need to run separate power lines or install the devices near an AC outlet. The NGI-U05POE4 provides PoE+ compatibility up to 30W per PoE port and a PoE budget of 120W.

Ruggedized Metal Housing Built to Last in Harsh Environments
The compact NGI-U05POE4 adds 10/100/1000 Mbps Gigabit Ethernet capacity to your industrial and commercial applications, such as factory floors, warehouse operations and other environments with space constraints and wide temperature ranges. The industrial-grade high-strength case withstands vibration, shock and free fall. It can also operate in extreme temperatures ranging from 14 degrees to 140 degrees Fahrenheit.

Unmanaged Switch Requires Little to No Configuration
Quickly connect your network devices with little to no configuration. LEDs indicate when the switch is powered on and which Ethernet ports are showing activity. The NGI-U05POE4 supports MAC address auto-learning and auto-aging for efficient routing, as well as automatic MDI/MDI-X crossover detection for plug-and-play functionality. IEEE 802.3x flow control allows smooth transmission of large files.

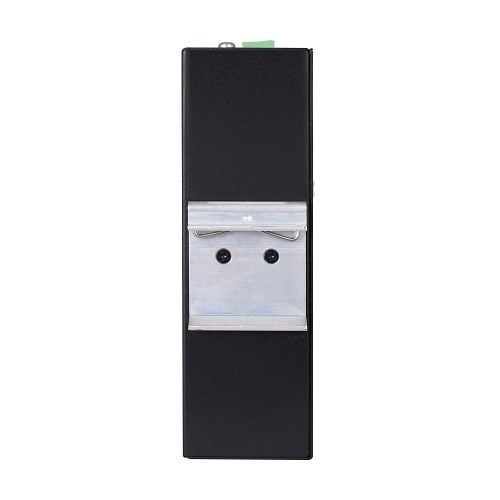

Pre-Installed DIN Rail Clip Allows for Convenient Installation

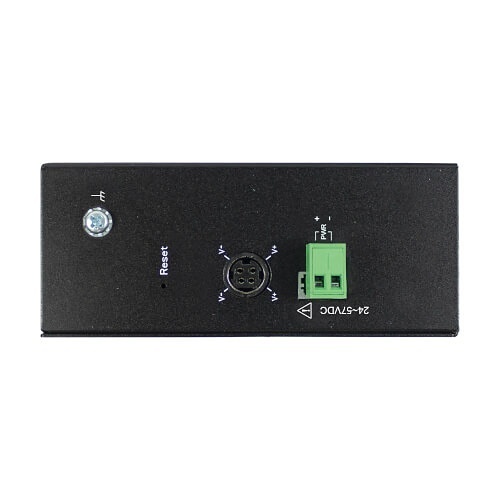

The device may be DIN mounted using the pre-installed rail clip, which mounts firmly to any standard 35 mm DIN rail. Providing seamless operation in the event of power dips or failures, the switch features a 2-pin 24-57VDC terminal block power input to help prevent unnecessary downtime. Device power must be supplied by SELV circuit.

TAA-Compliant for GSA Schedule Purchases
The NGI-U05POE4 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

Main Features

  • 5-Port Unmanaged Gigabit Ethernet Switch
  • Supports 10/100/1000 Mbps speeds
  • PoE+ Ports deliver up to 30W Power
  • Rugged metal Housing for harsh environments
  • Operates in -10° to 60°C temperature range
  • DIN mount for easy installation
  • No configuration required for setup
  • Compatible with popular web browsers
  • TAA-Compliant for federal contracts

General Information

Name: Eaton Tripp Lite NGI-U05POE4 5-Port Unmanaged Industrial Gigabit Ethernet Switch, 30W
Category: Video Surveillance, Data Comm & Networking, Networking Devices, Hubs, Routers & Switches, Network Switches, Network Switches
UPC Code:
Country of Origin: . Country of origin is subject to change.
