Tripp Lite NPOE-30W-1G-INT Tripp Lite Series Gigabit PoE+ Midspan Active Injector, 30W, 1-Port, International Power Cords

Brand: Tripp Lite by Eaton
ADI #:TC-NPOE3W1G Model #: NPOE-30W-1G-INT  Name: Tripp Lite NPOE-30W-1G-INT Tripp Lite Series Gigabit PoE+ Midspan Active Injector, 30W, 1-Port, International Power Cords
  • Saves money by delivering 30W of power + data up to 100 m through existing cabling
  • Extends power + data to any PoE or PoE+ device installed where no AC outlet is available
  • Supports Gigabit Ethernet data transfer speeds up to 1000 Mbps (1 Gbps)

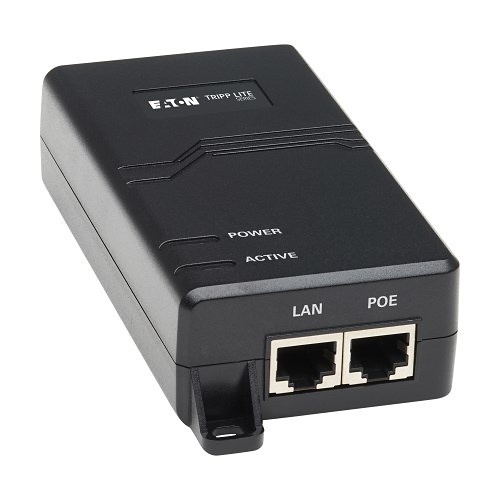

Image of TC-NPOE3W1G

Product Overview

PoE+ injector uses existing Cat5e/6/6a cable to supply power to a PoE device connected to a non-PoE switch.

Features | Adds a PoE Device to Your LAN Without Adding a PoE Switch
Now you can add a surveillance camera, wireless access point, VoIP phone or other PoE (Power over Ethernet) device to your home or office network, even if your network switch doesn't support PoE. Instead of making an expensive upgrade to a PoE switch, you can use this single-port PoE+ injector to send 30 watts of power, as well as Gigabit Ethernet data, through your existing Cat5e/6/6a cabling.

Saves You Time and Money on Unnecessary Equipment Updates
This compact PoE+ injector delivers 10/100/1000 Mbps of data and up to 30 watts of power using existing Cat5e/6/6a cables. That means, in addition to not buying a new PoE network switch, you also don't need to install new AC power lines and electrical outlets. This cost-effective midspan injector sends DC power and Ethernet data through your Ethernet cable, cutting down on cable clutter, equipment costs and installation time and labor.

Expands Your PoE Network Up to 100 Meters
The NPOE-30W-1G-INT delivers both power and data to any IEEE 802.3at (PoE+) or IEEE 802.3af (PoE) device up to 100 meters (328 feet) away. This allows you to install a device in a building lobby, on a ceiling, inside a warehouse or anywhere else an AC power outlet is unavailable. The PoE+ injector supports full-duplex 2 Gbps communication for sending and receiving data simultaneously. It also protects your device against short circuits, high voltage and overloads.

Simple Plug-and-Play Installation Has Your Device Connected in Minutes

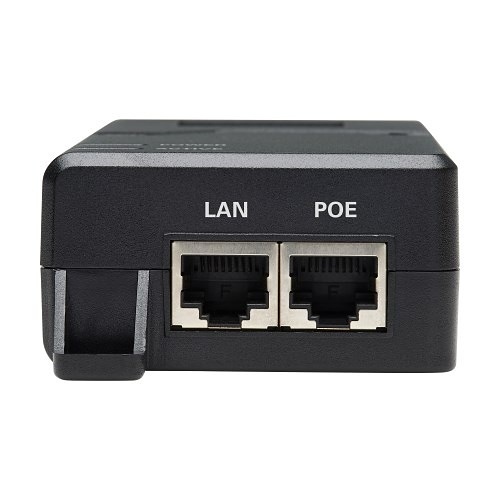

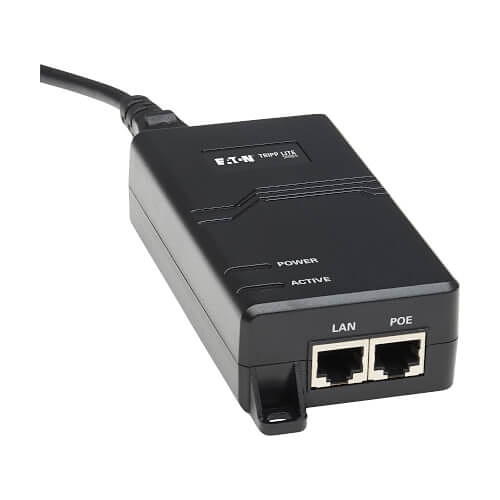

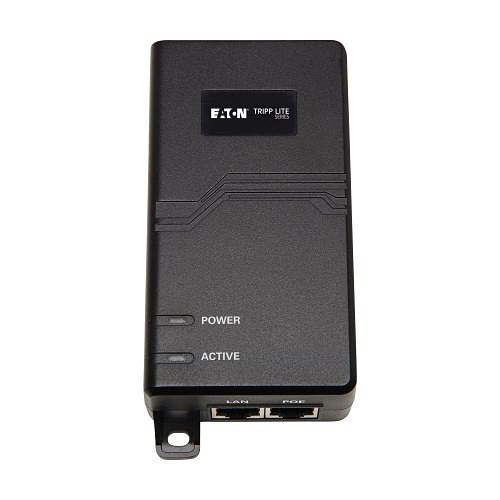

No configuration or software is required to add the NPOE-30W-1G-INT to your LAN. Just connect your switch or network jack to the shielded RJ45 LAN port and your PoE device to the shielded RJ45 POE port using existing Cat5e/6/6a cable. Connect the unit's C6 inlet to an outlet using the included power supply and international plug adapters. LEDs indicate the unit is receiving power and is ready to transmit data.

Designed for Installation Almost Anywhere
Mounting holes are featured for installing the midspan injector on a shelf, desktop, wall or any other smooth surface with user-supplied hardware. The black plastic housing fits in the palm of your hand, so it is small enough to hide away without interfering with your workflow or décor. The fanless design is ideal for silent operation.

General Information

Name : Tripp Lite NPOE-30W-1G-INT Tripp Lite Series Gigabit PoE+ Midspan Active Injector, 30W, 1-Port, International Power Cords , Tripp Lite by Eaton
Category : PoE Injectors
UPC Code :

Specifications

General Information

ADI Part Number : TC-NPOE3W1G
Brand Name : Tripp Lite by Eaton
Manufacturer : Tripp Lite by Eaton
Manufacturer Part Number : NPOE30W1GINT
Product Model : NPOE-30W-1G-INT
Product Name : NPOE-30W-1G-INT PoE+ Injector
Product Series : Tripp Lite
Product Type : PoE+ Injector
Weight (Approximate) (g) : 249.476

Interfaces/Ports

Input Ports : RJ-45
Output Ports : RJ-45

Physical Characteristics

Color Family : Black
Depth : 5.4"
Depth (mm) : 137.16
Form Factor : Desktop Mount
Height : 1.4"
Height (mm) : 35.56
Weight (Approximate) : 8.80 oz
Width : 2.6"
Width (mm) : 66.04

Power Description

Input Voltage : 120V AC, 230V AC
Maximum Input Current : 750 mA
Maximum Input Current (A) : 0.75
Maximum Output Voltage : 53 V DC

Product Information

Protection Type : Over Voltage, Overload Protection, Short Circuit

Warranty

Limited Warranty : 3 Year

Miscellaneous

Certifications & Standards : <ul> <li>IEEE Standards Supported 802.3</li> <li>IEEE Standards Supported 802.3ab</li> <li>IEEE Standards Supported 802.3af</li> <li>IEEE Standards Supported 802.3at</li> <li>IEEE Standards Supported 802.3</li> <li>UL Listed</li> <li>FCC (USA)</li> </ul>
Environmentally Friendly : Yes
Package Contents : <ul> <li>NPOE-30W-1G-INT PoE+ Injector</li> <li>External Power Supply (Input: 100-240V, 50/60 Hz, 0.75A)</li> <li>4 x International Plug Adapters (North America, Europe, U.K., Australia)</li> <li>Owner's Manual</li> </ul>
