Eaton Tripp Lite NPOEI-60W-1G Ethernet PoE Injector Industrial, IP30 Housing, Dual, 60W
Eaton Tripp Lite NPOEI-60W-1G Ethernet PoE Injector Industrial, IP30 Housing, Dual, 60W
- 60W PoE++ Power for high-demand devices
- Supports IEEE 802.3af/at/bt standards
- Operates in extreme temperatures: -40℃ to +75℃
- 60W PoE++ Power for high-demand devices
- Supports IEEE 802.3af/at/bt standards
- Operates in extreme temperatures: -40℃ to +75℃
Sign In for Dealer Pricing
Become an ADI Customer- 60W PoE++ Power for high-demand devices
- Supports IEEE 802.3af/at/bt standards
- Operates in extreme temperatures: -40℃ to +75℃

Eaton Tripp Lite NPOEI-60W-1G Ethernet PoE Injector Industrial, IP30 Housing, Dual, 60W
NPOEI-60W-1G | TC-NPOEI601G
Please sign in to view pricing and availability and to add to cart.
Accessories
Product Overview
Now You Can Add a PoE Device to Your LAN Without a PoE Switch
Add a surveillance camera, wireless access point, VoIP phone, outdoor kiosk, smart lights or other PoE (Power over Ethernet) device to your home or office network, even if your network switch doesn't support PoE. Instead of making an expensive upgrade to a PoE switch, you can use this single-port PoE++ injector to send 60W of power, as well as Gigabit Ethernet data, through your existing Cat5e/6/6a cabling. It is recommended for Wi-Fi applications that require more than 30W of power.
Saves You Time and Money on Unnecessary Equipment Updates
This compact PoE plus injector delivers 10/100/1000 Mbps (1 Gbps) of data and up to 60W of power using existing Cat5e/6/6a cables. That means, in addition to not buying a new PoE network switch, you also don't need to install new AC power lines and electrical outlets. This cost-effective midspan injector sends DC power and Ethernet data through your Ethernet cable, cutting down on cable clutter, equipment costs and installation time and labor.
Expand Your PoE Network Up to 328 ft.
The NPOEI-60W-1G delivers both power and data to any IEEE 802.3af (PoE), 802.3at (PoE+) or 802.3bt (4PPoE) device up to 328 feet (100 meters) away. This allows you to install a device in a building lobby, on a ceiling, inside a warehouse or anywhere else an AC power outlet is unavailable. The PoE+ injector supports full-duplex 2 Gbps communication for sending and receiving data simultaneously. It also protects your device against short circuits, high voltage and overloads.
Simple Plug-and-Play Installation Has Your Device Connected in Minutes

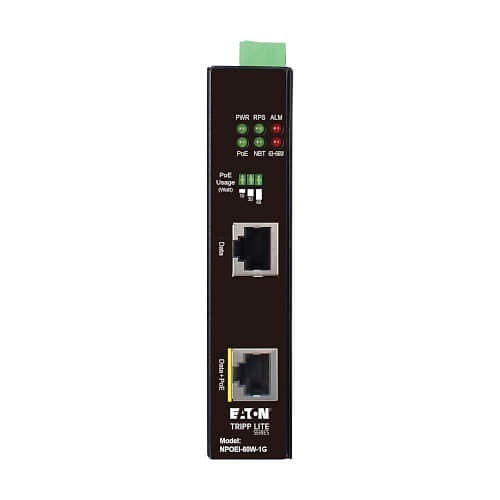

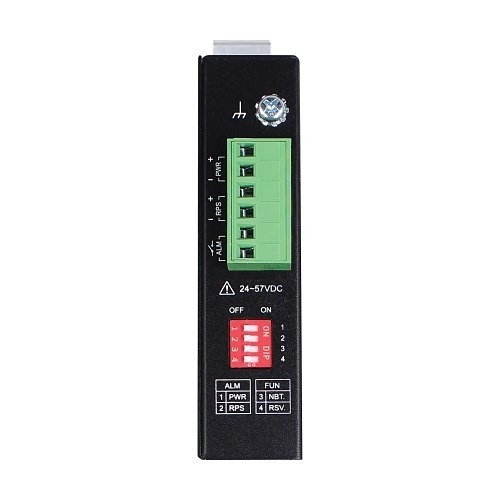

No configuration or software is required to add the NPOEI-60W-1G to your LAN (local area network). Just connect your switch or Ethernet network to the shielded RJ45 LAN port and your PoE device to the shielded RJ45 PoE port using existing Cat5e/6/6a cable. The included terminal block offers dual primary and redundant power inputs. DIP switches and LEDs help you find the right settings for your application. The NPOEI-60W-1G automatically detects which connected devices are compatible.
Designed for Installation on a DIN Rail

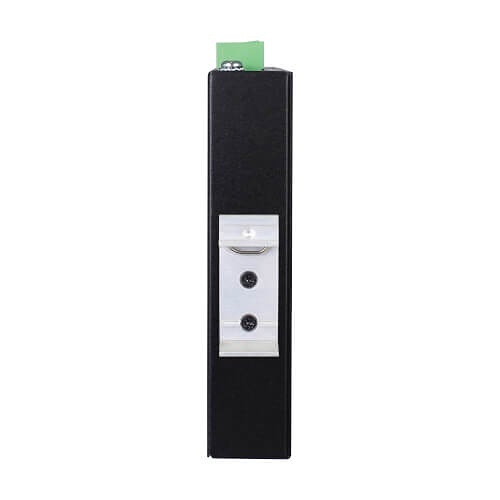

A DIN rail kit is included for mounting the IP30-rated metal housing on a well-grounded corrosion-free rail. The fanless design is ideal for silent operation.
Main Features
- 60W PoE++ Power for high-demand devices
- Supports IEEE 802.3af/at/bt standards
- Operates in extreme temperatures: -40℃ to +75℃
- IP30-Rated Housing for industrial environments
- DIN rail mountable for easy installation
- Compatible with CAT5e/6/6a cables
- Extends PoE network up to 328 ft
- Plug-and-play installation, no software needed
- Dual 24-57VDC Power inputs for redundancy
- Protects against short circuits and overloads
General Information
Specifications
ADI Part Number TC-NPOEI601G Brand Name Eaton Tripp Lite Manufacturer Eaton Manufacturer Part Number NPOEI60W1G Product Model NPOEI-60W-1G Product Name NPOEI-60W-1G PoE Injector Product Type PoE Injector
TAA Compliant Yes
Input Ports 1 x Ethernet Output Ports 1 x RJ-45
Application/Usage Commercial Color Black Depth 3.9" Form Factor DIN Rail Mount, Rack Mount, Wall Mount Height 4.6" Width 1"
Input Voltage 57V DC Maximum Frequency 60 Hz Minimum Frequency 50Hz
Protection Type Over Voltage, Overload Protection, Short Circuit
Limited Warranty 3-Year
Additional Information - Operating Temperature Range: -49 to 167 F (-40 to 75 C)
- Storage Temperature Range: -49 to 185 F (-40 to 85 C)
- Relative Humidity: 5 to 95% RH, Non-Condensing
Certifications & Standards CE FCC IEEE Standards Supported 802.3af 802.3at 802.3bt Compatibility - Surveillance Camera
- Wireless Access Point
- VoIP Phone
- Outdoor Kiosk
- Smart Lights
- PoE (Power Over Ethernet) Device
Country of Origin TW Environmentally Friendly Yes Package Contents - NPOEI-60W-1G Industrial Gigabit PoE++ Midspan Injector
- 24-57VDC terminal block
- DIN rail-mounting kit
- Quick Start Guide
