Eaton Tripp Lite OMNIVS1000 OmniVS 120V 1000VA 500W Line-Interactive UPS, Tower, USB Port, UPS Battery Supported Outlets, Surge-Only Outlets
OMNIVS1000
|TC-OMNIVS100
Shop All Eaton Tripp Lite
Eaton Tripp Lite OMNIVS1000 OmniVS 120V 1000VA 500W Line-Interactive UPS, Tower, USB Port, UPS Battery Supported Outlets, Surge-Only Outlets
OMNIVS1000 | TC-OMNIVS100
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

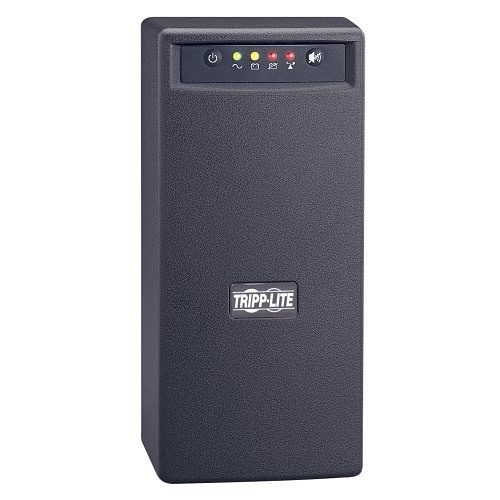

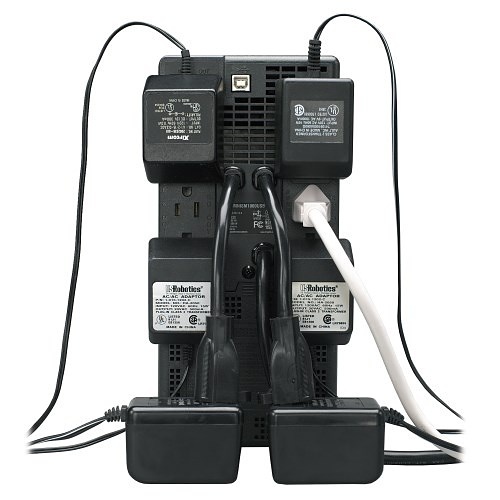

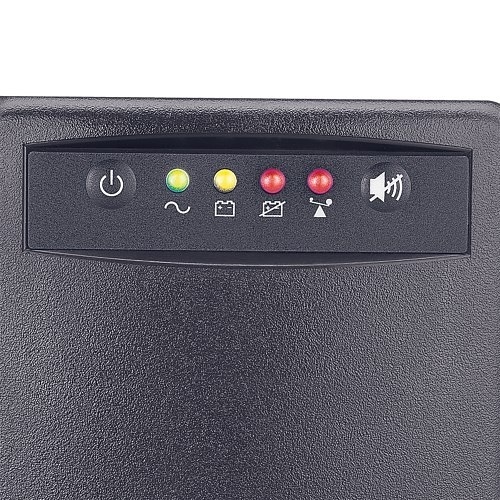

OMNIVS1000 line-interactive UPS system offers voltage regulation, surge suppression and long-lasting battery support for personal computers, internetworking equipment and other sensitive electronics. Internal UPS circuits support entry-level PC systems for up to 60 minutes during power failures so that connected equipment can be shut down without data loss. Automatic Voltage Regulation (AVR) circuits regulate brownouts as low as 89 volts back to usable levels without using battery power. Offers complete desktop power protection in an attractive black tower configuration. Includes six battery-supported outlets for computer, monitor and one vital system peripheral, plus two additional surge suppression-only outlets for printers and other system accessories not requiring battery support. USB port enables optional unattended system shutdown without data loss in the case of extended power failure, USB cable included. PowerAlert software available via free download. Built-in RJ45 TEL/Ethernet suppression jacks protect modem, fax machine, cordless phone or other peripheral with a standard single-line tel/DSL or data line connection. Built-in audible alarm and four front-panel LEDs indicate line power status, battery power status, battery low/replace status and overload. 1000VA/500W power handling ability supports entry-level PCs, network workstations, point-of-sale equipment, small business phone systems, audio/video equipment and home theater systems. Offers 3.5 minutes battery runtime with a full load of 1000VA/500W and 14 minutes with a half load of 500VA/250W. Supports battery replacement via built-in access panel.
Specifications
ADI Part Number TC-OMNIVS100 Brand Name Eaton Tripp Lite Manufacturer Eaton Manufacturer Part Number OMNIVS1000 Packaged Quantity 1 Product Line Omni Product Model OMNIVS1000 Product Name 8-Outlet Line Interactive UPS System Product Series VS Product Type Line-interactive UPS Sector Data Comm & Networking

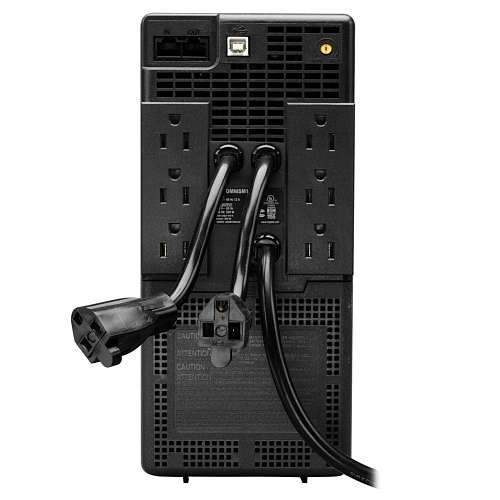

Backup/Run Time (Full Load) 3.5-Minute Backup/Run Time (Half Load) 14-Minute Dataline Protection RJ-45 Output Voltage 120V AC Receptacle Detail 2 x NEMA 5-15R, 6 x NEMA 5-15R Receptacle Type NEMA 5-15R Transfer Time 4-Millisecond
Battery Chemistry Lead Acid Battery Life 6 Year Battery Recharge Time 4-Hour
Status Indicators Yes
Maximum Operating Temperature 122°F (50°C)
Alarm On Battery
Color Black Depth 7.3" Form Factor Tower Height 10.8" Weight 21lb Width 5.3"
Input Voltage 110V AC Plug/Connector Type NEMA 5-15P Surge Energy Rating 480 J Waveform Type Pulse-width Modulated Sine Wave
Additional Warranty Information 2 year warranty. $200,000 connected equipment insurance (USA & Canada Only). Limited Warranty 2-Year
Country of Origin CN Package Contents - OMNIVS1000 Line Interactive UPS
- USB and telephone cable
- User manual with warranty information
