Tripp Lite P167-000 HDMI over Dual CAT5 / CAT6 Extender Wall Plate Kit with Transmitter and Receiver
P167-000
|TC-P167000
Shop all Eaton Tripp Lite
Tripp Lite P167-000 HDMI over Dual CAT5 / CAT6 Extender Wall Plate Kit with Transmitter and Receiver
P167-000 | TC-P167000
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

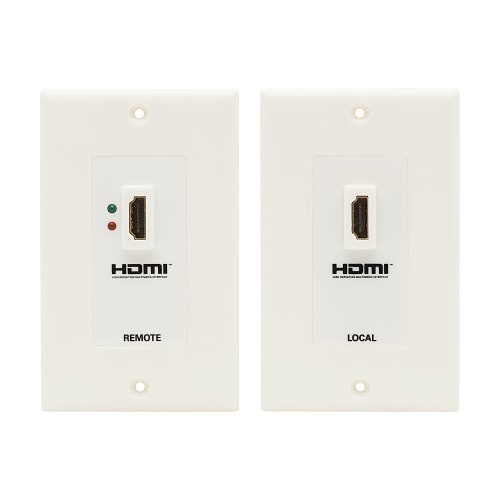

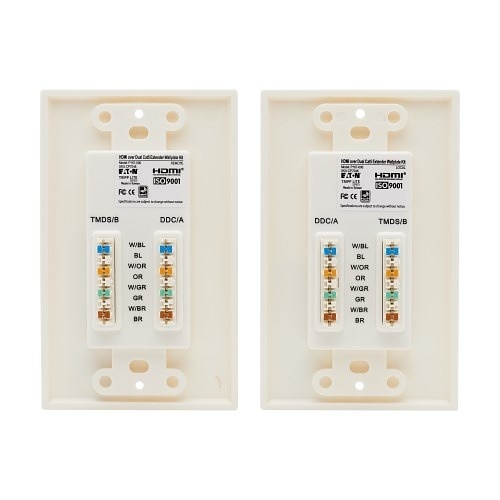

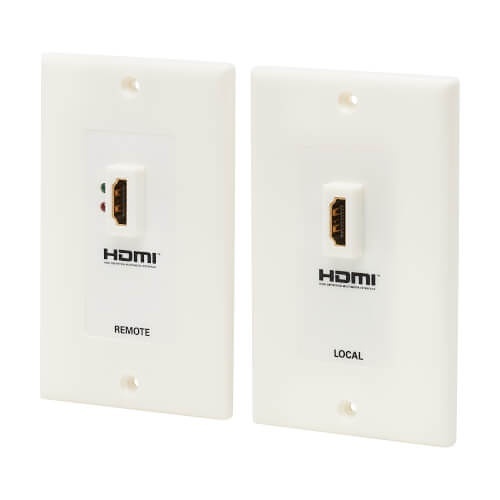

This HDMI Over Dual Cat5 Extender Wall Plate Kit is the perfect solution for those who need to extend a HDMI signal over a long distance over two Cat5/6 cables. When using 24 AWG Solid Wire Cat6 cable, a 1080p (24 Hz) or 1080i (60 Hz) signal can be extended up to 150' from the source. When using 24 AWG Solid Wire Cat6 cable, a 3D signal can be extended up to 100'. When using 24 AWG Solid Wire Cat5 cable, a 1080p (24 Hz) or 1080i (60 Hz) signal can be extended up to 100' (30.5m) from the source. When using 24 AWG Solid Wire Cat5 cable, a 3D signal can be extended up to 50' Simply run two Cat5/6 cables between the local transmitter and remote receiver wall plates, and plug in standard HDMI cables to the HDMI source and the display. The green LED on the remote receiver wall plate lets you know that power from the source and monitor. When functioning properly, only the green LED will be lit. If the red LED is illuminated, it means the remote receiver is not receiving a functional signal from the source. The P167-000 comes with both local transmitter and remote receiver wall plates. DTS-HD, Dolby True HD and 7.1 Channel Surround Sound audio are supported, and it is compliant with HDCP, EDID and DDC. 24-bit True Color (8 bits per channel) is supported. No external power is required.
Main Features
- Extends 1080p signal up to 150' with Cat6
- Supports 3D signal up to 100' with Cat6
- Compatible with DTS-HD, Dolby True HD, 7.1 Surround Sound
- Supports HDCP, EDID, and DDC
- 24-bit True Color support
- No external Power required
General Information
Name: Tripp Lite P167-000 HDMI over Dual CAT5 / CAT6 Extender Wall Plate Kit with Transmitter and Receiver
Category: Pro AV, Commercial Video Signal Distribution, Pro HDMI Extenders, ADI Pro Rewards
UPC Code: 037332143730
Country of Origin: China. Country of origin is subject to change.
Specifications
ADI Part Number TC-P167000 Brand Name Eaton Tripp Lite Manufacturer Eaton Manufacturer Part Number P167-000 Packaged Quantity 2 Product Model P167-000 Product Name Cat5 Digital Audio/Video Faceplate Product Type Faceplate
TAA Compliant Yes
Color White
Limited Warranty 3-Year
Country of Origin TW Features HDMI v1.3 and HDCP compliant, Locate your HDMI display screen up to 230 ft. away from the HDMI source, Uses ordinary Cat5 or Cat6 cable Package Contents - Local Transmitter and Remote Receiver Wallplates
- 110 Punchdown Tool
- (x4) Wallplate Screws
- Owner's Manual
