Image of TC-PDU3EVNR4

Eaton Tripp Lite PDU3EVNR6H50A PDU 3-Phase Power Distribution Unit, 6-Pack, 50A

PDU3EVNR6H50A|TC-PDU3EVNR4

Eaton Tripp Lite PDU3EVNR6H50A PDU 3-Phase Power Distribution Unit, 6-Pack, 50A

PDU3EVNR6H50A|TC-PDU3EVNR4
Key Features
  • 14.4kW 3-Phase PDU with 18 outlets
  • Real-time remote monitoring via network interface
  • Built-in GbE-capable network management card
Key Features
  • 14.4kW 3-Phase PDU with 18 outlets
  • Real-time remote monitoring via network interface
  • Built-in GbE-capable network management card

Sign In for Dealer Pricing

Become an ADI Customer
Key Features
  • 14.4kW 3-Phase PDU with 18 outlets
  • Real-time remote monitoring via network interface
  • Built-in GbE-capable network management card
Eaton Tripp Lite

Eaton Tripp Lite PDU3EVNR6H50A PDU 3-Phase Power Distribution Unit, 6-Pack, 50A

PDU3EVNR6H50A | TC-PDU3EVNR4

Please sign in to view pricing and availability and to add to cart.

Accessories

Software & Licenses
Image of TC-WEXT2L
ADI # TC-WEXT2L
MODEL # WEXT2L
Sign In for Dealer Pricing
Software & Licenses
Eaton Tripp Lite WEXT3L Extended Warranty, 3-Year
ADI # TC-WEXT3L
MODEL # WEXT3L
Sign In for Dealer Pricing
Software & Licenses
Eaton Tripp Lite WEXT1L Extended Warranty, 1-Year
ADI # TC-WEXT1L
MODEL # WEXT1L
Sign In for Dealer Pricing
Overview
Specifications
Documents

Product Overview

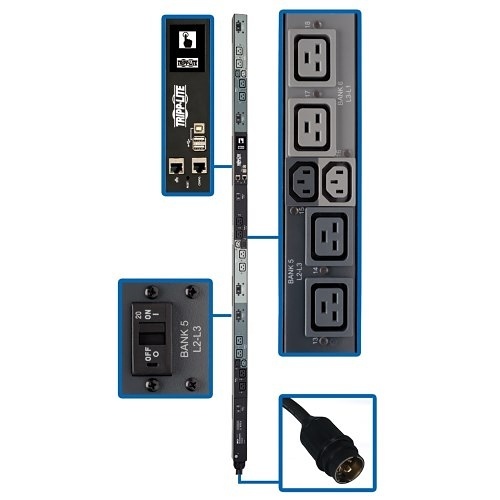

14.4kW 3-Phase PDU Distributes and Monitors Network-Grade Power

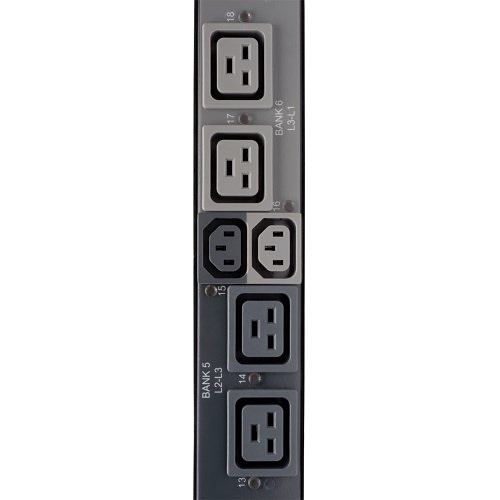

This monitored PDU provides real-time remote monitoring of voltage and load levels via its built-in network interface. Ideal for your data center, computer room or high-density network closet, the PDU3EVNR6H50A features six C13 and 12 C19 208V outlets in six breakered load banks, which distribute AC power to rack equipment. Plug-lock insert sleeves are included to prevent equipment cables from becoming accidentally dislodged.

Monitored Per-Outlet PDU Lets You Keep Track of Power Consumption in Real Time

Not only can you remotely monitor voltage and frequency, but the PDU3EVNR6H50A also allows metering of per-phase input current, as well as output current per bank and per outlet. Banks can be individually monitored to ensure proper load balance and prevent downtime. Monitoring each outlet allows you to study power consumption trends for each connected device. This helps you detect hardware problems and network traffic bottlenecks, as well as compare power usage among various devices.

Built-In LX Platform Network Management Card Allows Remote Access 24/7

The Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, Telnet or SSH. Full 10/100/1000 Mbps auto-sensing enables optimal communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, FTP, DHCP and NTP.

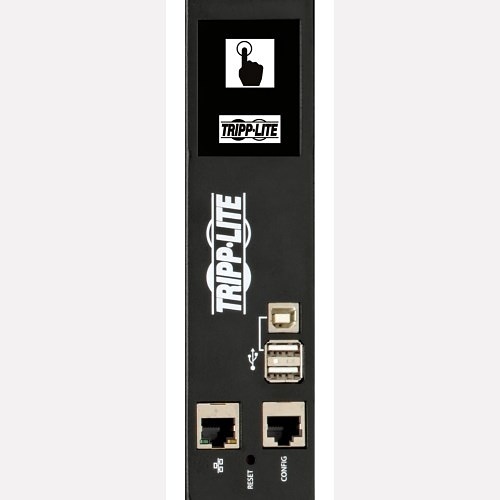

Color Touchscreen LCD Gives You Important Data at a Glance

An easy-to-navigate color touchscreen LCD reports network data, including IP address, input current level per phase, and output current per load bank and per outlet with ±1% billing-grade accuracy. It also generates a unique QR code to allow read-only access to the PDU via PowerAlert® Device Manager. If an EnviroSense2 module is connected, the LCD also displays status and environmental data, including temperature and humidity.

Easy to Install Vertically in an EIA-Standard 19 in. Rack

The 70-inch 0U PDU mounts vertically using the included toolless mounting buttons or the included rack-mounting brackets. Spare buttons are also included. Use the included PDUMVROTATEBRKT kit to install the PDU with outlets facing the rear for better airflow or equipment access. A six-foot cord with a Hubbell 50A CS8365C 208V input connects the PDU to a compatible AC power source, generator or protected UPS.

TAA-Compliant for GSA Schedule Purchases

The PDU3EVNR6H50A is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

Main Features

  • 14.4kW 3-Phase PDU with 18 outlets
  • Real-time remote monitoring via network interface
  • Built-in GbE-capable network management card
  • Color touchscreen LCD with +/-1% accuracy
  • Toolless vertical installation in 19" rack
  • Six breakered load banks for AC Power distribution
  • Plug-lock insert sleeves prevent Cable dislodgement
  • Customizable dashboard graphs for remote management
  • Six-foot Cord with Hubbell 50A CS8365C input

General Information

Name: Eaton Tripp Lite PDU3EVNR6H50A PDU 3-Phase Power Distribution Unit, 6-Pack, 50A
Category: Batteries & Power Supplies, Power Management, Power Distribution Units
UPC Code:
Country of Origin: . Country of origin is subject to change.

Specifications
