Eaton Tripp Lite PDUH32HV Single-Phase Basic PDU with 10-C13 Outlets, EC 309 32A Blue Input, 3.6' Cord, 1U Rack Mount
PDUH32HV
|TC-PDUH32HV
Shop All Eaton Tripp Lite
Eaton Tripp Lite PDUH32HV Single-Phase Basic PDU with 10-C13 Outlets, EC 309 32A Blue Input, 3.6' Cord, 1U Rack Mount
PDUH32HV | TC-PDUH32HV
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

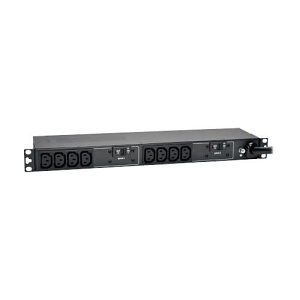

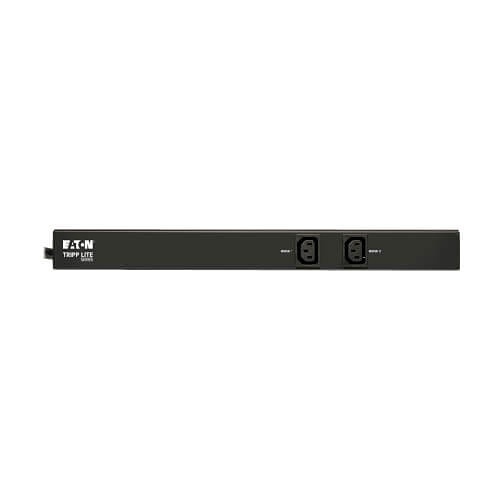

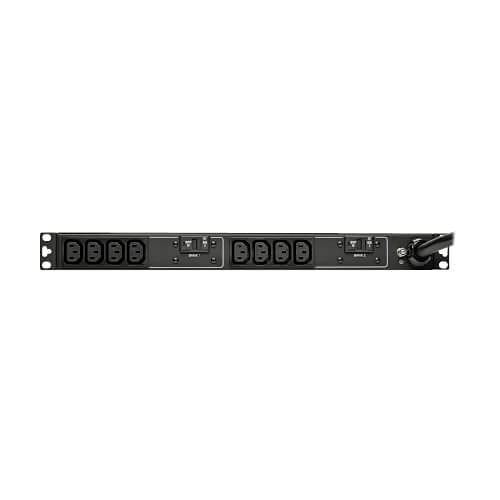

The PDUH32HV 7.7kW Single-Phase 200-240V Basic PDU is a versatile no-frills unit for data centers, server rooms and network wiring closets. Perfectly suited for high-density IT environments, the PDUH32HV features 10 total outlets—two in front and eight in the rear. The IEC 309 32A Blue (2P+E) input plug with 3.6m cord connects to your facility's compatible AC power source, generator or protected UPS to distribute power to connected equipment. The switchless design prevents an accidental shutdown, which could lead to costly downtime. Dual 20A circuit breakers protect connected equipment from dangerous overloads. The reversible all-metal housing supports a variety of mounting options, including 1U horizontal or 0U vertical mounting in EIA-standard 19" racks, under a counter or on a wall or workbench.
Specifications
ADI Part Number TC-PDUH32HV Brand Name Eaton Tripp Lite Manufacturer Tripp Lite Manufacturer Part Number PDUH32HV Product Line Basic Product Model PDUH32HV Product Name Basic PDUH32HV 10-Outlets PDU Product Type PDU Sector Data Comm & Networking
PDU Type Basic Receptacle Detail 10 x IEC 60320 C13 Receptacle Type IEC 60320 C13
Color Blue Depth 5" Mounting Orientation Horizontal Rack Height 1U Width 18"
Input Voltage 230V AC Plug/Connector Type IEC 60309 32A Blue (2P+E)
Mount Type Rack Mount, Wall Mount Protection Type Overload Protection
Limited Warranty 2-Year
Country of Origin CN Environmental Certification RoHS Environmentally Friendly Yes Package Contents - PDUH32HV 7.7kW Single-Phase 230V Basic PDU
- Mounting hardware
- Owner’s manual
