Tripp Lite PDUMH15 Single-Phase Local Metered PDU, 15' (4.57m) Cord, 1.4kW, 120V 12A, 13 NEMA 5-15R Outlets, 5-15P Input, 1U

Brand: Tripp Lite by Eaton
ADI #:TC-PDUMH15 Model #: PDUMH15  Name: Tripp Lite PDUMH15 Single-Phase Local Metered PDU, 15' (4.57m) Cord, 1.4kW, 120V 12A, 13 NEMA 5-15R Outlets, 5-15P Input, 1U
  • Metered single phase 15A 120V PDU
  • 1U horizontal rackmount, Digital current meter

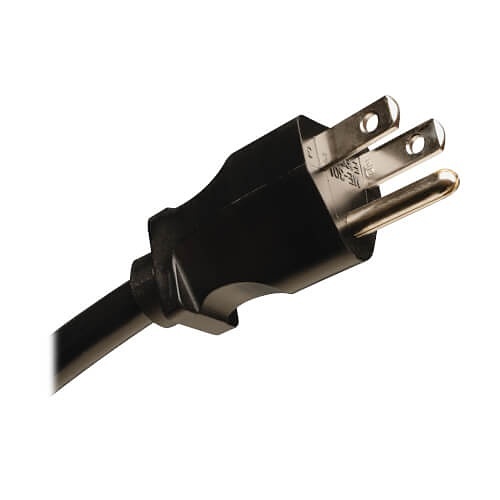

  • NEMA 5-15P input with 15 ft. / 4.5m line cord
Tripp Lite PDU Metered 120V 15A 5-15R 13 Outlet 5-15P Horizontal 1URM

Product Overview

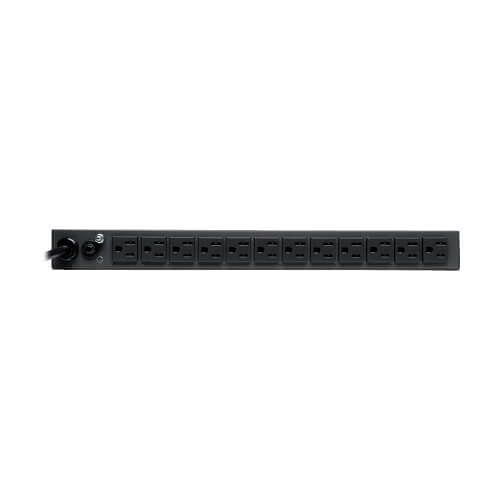

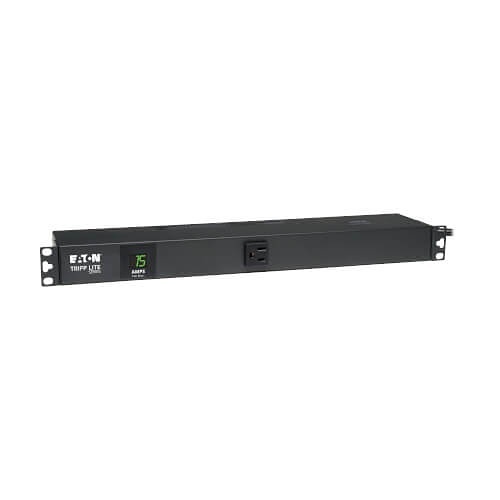

Tripp Lite's PDUMH15 AC power distribution unit offers a digital current monitor and provides 15 amps of 120 volt capacity in a versatile multi-mount cabinet. Detachable mounting flanges are configurable for wallmount, under-counter, or 1U/0U rackmount installation. Uses only 1U of rack space when installed in any 19-inch rack, with the potentional for zero U mounting in the cable management area of most rack enclosures. Built-in digital ammeter display offers continuous visual power consumption data for the entire PDU. Attractive rackmount housing with 1 front and 12 rear facing outlets measures only 4.5 inches in depth. Unfiltered electrical pass-through without a power switch makes the PDUMH15 ideal for distributing alternate waveform UPS or generator power in rack enclosures, network closets, and more. Includes 12 rear facing NEMA 5-15R and one front facing outlet, 15-ft. AC power cord, 15 amp breaker, TVSS grounding lug and rugged all metal rackmount case design.

General Information

Name : Tripp Lite PDUMH15 Single-Phase Local Metered PDU, 15' (4.57m) Cord, 1.4kW, 120V 12A, 13 NEMA 5-15R Outlets, 5-15P Input, 1U , Tripp Lite by Eaton
Category : Power Distribution Units
UPC Code : 037332132529
Country of Origin : China. Country of origin is subject to change.

Specifications

General Information

ADI Part Number : TC-PDUMH15
Brand Name : Tripp Lite
Manufacturer : Tripp Lite by Eaton
Manufacturer Part Number : PDUMH15
Product Model : PDUMH15
Product Name : PDUMH15 PDU Metered 120V 15A 13 Outlet
Product Type : PDU
Weight (Approximate) (g) : 2041.166

Technical Information

Output Voltage : 120 V AC
Output Voltage (V AC) : 120
Receptacle Detail : 13 x NEMA 5-15R
Receptacle Type : NEMA 5-15R

Management

Management : <p>Unfiltered electrical pass-through reliably distributes alternate waveform AC power from UPS or generator to supported equipment</p>

Physical Characteristics

Depth : 4.5"
Depth (mm) : 114.3
Height : 1.8"
Height (mm) : 44.45
Mounting Orientation : Vertical
Rack Height : 1U
Weight (Approximate) : 4.50 lb
Width : 17.5"
Width (mm) : 444.5

Power Description

Input Voltage : 120 V AC
Input Voltage (V AC) : 120
Plug/Connector Type : NEMA 5-15P

Product Information

Mount Type : Rack-mountable
Protection Type : Overload Protection

Warranty

Limited Warranty : 2 Year

Miscellaneous

Country of Origin : China
Environmentally Friendly : Yes
Package Contents : <ul><li>PDUMH15 PDU Metered 120V 15A 13 Outlet</li><li>PDUMH15 Metered rackmount PDU</li><li>Owner's manual with warranty information</li></ul>
