Eaton Tripp Lite PDUMH15NET2LX Single-Phase Switched PDU with LX Interface, 12' (3.66m) Cord, 1.4kW, 120V 12A, NEMA 5-15R Outlets, 5-15P Input, 1U, TAA
PDUMH15NET2LX
|TC-PDUMH1512
Shop All Eaton Tripp Lite
Eaton Tripp Lite PDUMH15NET2LX Single-Phase Switched PDU with LX Interface, 12' (3.66m) Cord, 1.4kW, 120V 12A, NEMA 5-15R Outlets, 5-15P Input, 1U, TAA
PDUMH15NET2LX | TC-PDUMH1512
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

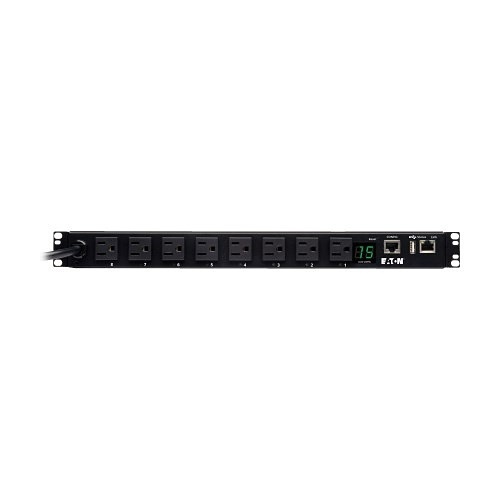

The PDUMH15NET2LX 1.4kW Single-Phase Switched PDU provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. By reducing the frequency of on-site visits, these advanced remote capabilities can save you money and reduce downtime. The 1U PDU features eight switched NEMA 5-15R outlets with an included cord retention bracket to prevent cables from becoming accidentally disconnected. A 12' (3.66m) cord with NEMA 5-15P plug connects the PDU to a compatible AC power source, generator or protected UPS. The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. A digital ammeter allows you to monitor the total load in real time to ensure it remains well below maximum capacity with no danger of overload. The rack-mount PDU installs in 1U of space in EIA-standard 19" racks. You can also mount it vertically in 0U of rack space or on a wall or under a counter with the included brackets and user-supplied screws.
Specifications
ADI Part Number TC-PDUMH1512 Brand Name Eaton Tripp Lite Manufacturer Eaton Manufacturer Part Number PDUMH15NET2LX Packaged Quantity 1 Product Model PDUMH15NET2LX Product Name PDUMH15NET2LX 8-Outlet PDU Product Type PDU
Output Voltage 100V AC, 120V AC, 127V AC PDU Type Switched Phase Single Phase Receptacle Detail 8 x NEMA 5-15R Receptacle Type NEMA 5-15R
TAA Compliant Yes
Depth 4.3" Height 1.8" Mounting Orientation Horizontal Rack Height 1U Weight 5.20lb Width 17.5"
Input Current 15A Input Voltage 120V AC Plug/Connector Type NEMA 5-15P
Length 12' Mount Type Rack Mount
Limited Warranty 2-Year
Country of Origin TW Environmental Certification RoHS Environmentally Friendly Yes Features CAN/CSA-C22.2 No. 60950-1 (Canada); NOM (Mexico); UL 60950-1 Package Contents - PDUMH15NET2LX 1.4kW Single-Phase Switched PDU

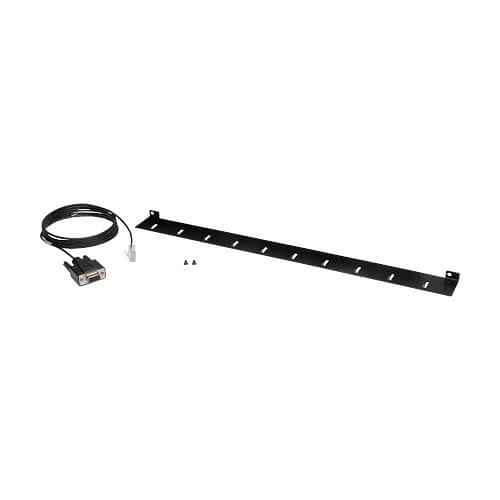

- Built-in LX Platform interface
- Configuration cable
- (8) Cable ties
- Cord retention bracket
- Mounting hardware
- Owner’s manual
