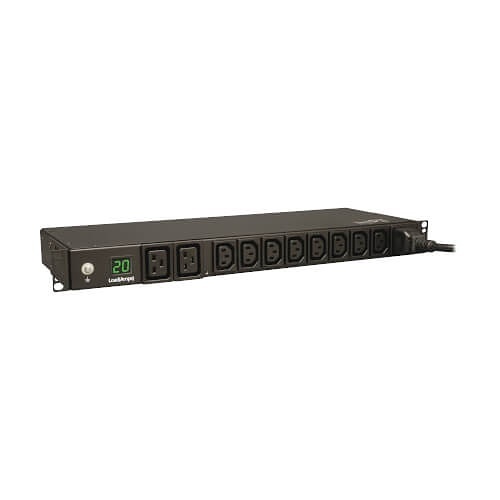

Eaton Tripp Lite PDUMH20HV 3.7kW Single-Phase Local Metered PDU, 208/230V (8 C13 and 2 C19), C20 / L6-20P Adapter, 12' (3.66 m) Cord, 1U Rack-Mount, TAA
PDUMH20HV
|TC-PDUMH20H
Shop All Eaton Tripp Lite
Eaton Tripp Lite PDUMH20HV 3.7kW Single-Phase Local Metered PDU, 208/230V (8 C13 and 2 C19), C20 / L6-20P Adapter, 12' (3.66 m) Cord, 1U Rack-Mount, TAA
PDUMH20HV | TC-PDUMH20H
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents

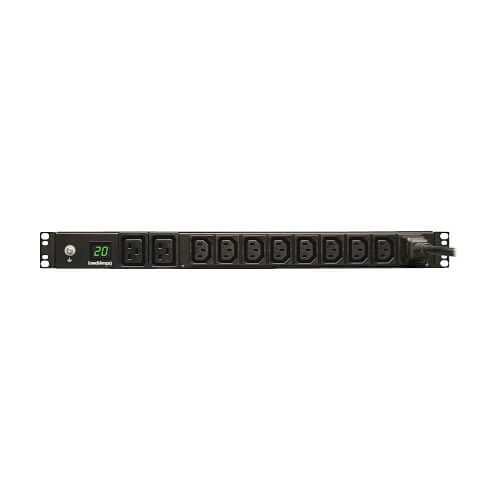

Product Overview
Introducing the Tripp Lite by Eaton 3.7kW Single-Phase Local Metered PDU, designed for efficiency and reliability. This power distribution unit operates at 208/230V and features eight C13 outlets along with two C19 outlets, providing versatile connectivity options for your equipment. The included C20 / L6-20P adapter and a generous 12 ft. (3.66 m) cord ensure flexibility in placement, while the 1U rack-mount design saves valuable space in your setup. Perfect for data centers and server rooms, this PDU meets TAA compliance, making it an ideal choice for government and military applications. Upgrade your power management today and experience the Tripp Lite difference!
Main Features
- 3.7kW Single-Phase Local Metered PDU
- Supports 20A capacity at 208/240 & 230V
- Includes C20 inlet and detachable input cable
- 10 total output receptacles (8 C13, 2 C19)

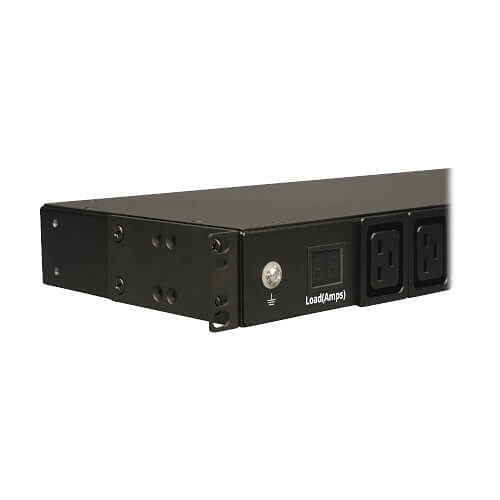

- Visual current meter for combined outlet tracking
- 1U rackmount installation in 19 inch racks
- Cord retention bracket for secure connections
- Reversible mounting ears for versatile setup
General Information
Name: Eaton Tripp Lite PDUMH20HV 3.7kW Single-Phase Local Metered PDU, 208/230V (8 C13 and 2 C19), C20 / L6-20P Adapter, 12' (3.66 m) Cord, 1U Rack-Mount, TAA
Category: Batteries & Power Supplies, Power Management, Power Distribution Units
UPC Code: 37332159014
Country of Origin: Taiwan. Country of origin is subject to change.
Specifications
ADI Part Number TC-PDUMH20H Brand Name Eaton Tripp Lite Country of Origin TW Manufacturer Tripp Lite Manufacturer Part Number PDUMH20HV Product Model PDUMH20HV Product Name Metered PDUMH20HV 10-Outlets PDU Product Series Metered Product Type PDU
Receptacle Detail 2 x IEC 60320 C19, 8 x IEC 60320 C13 Receptacle Type IEC 60320 C13, IEC 60320 C19
TAA Compliant Yes
Depth 7.00" Mounting Orientation Horizontal Rack Height 1U Width 18.00"
Input Voltage 230V AC Plug/Connector Type IEC 60320 C20, NEMA L6-20P
Length 12.00' Mount Type Rack Mount Protection Type Overload Protection
Limited Warranty 2-Year

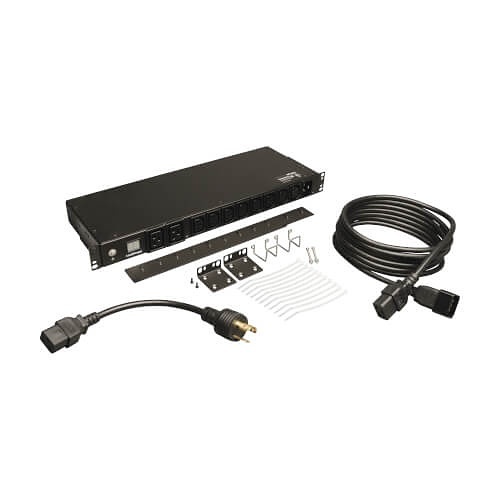

Environmental Certification RoHS Environmentally Friendly Yes Package Contents - Rackmount PDU
- C19 to L6-20P plug adapter
- Rack mounting brackets
