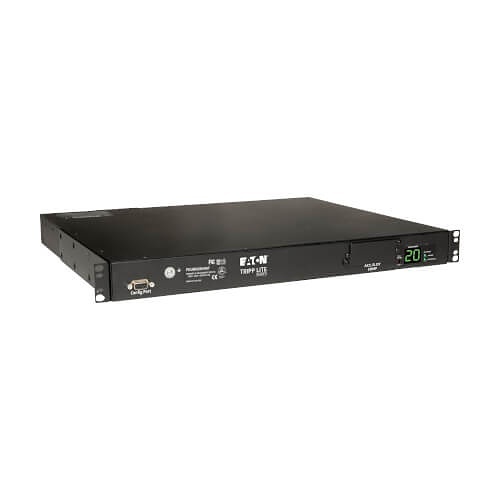

Eaton Tripp Lite PDUMH20HVAT Single-Phase Local Metered Automatic Transfer Switch PDU, Two 200-240V C20 Inlets, 8 C13 and 2 C19 Outputs, 1U, 3.8kW
PDUMH20HVAT | TC-PDUMH2HV
Please sign in to view pricing and availability and to add to cart.
Accessories
Product Overview
Tripp Lite Metered ATS / Auto Transfer Switch provides a redundant power option for single-corded network devices. Dual input cords support separate connection to PRIMARY and SECONDARY power sources. The ATS will normally maintain continuous output to all outlets as derived from the primary input cable. If the primary power source becomes unstable or fails altogether, the ATS will switch over to the secondary power source until the primary input is restored and stable. Super-fast switchover between primary and secondary power sources occurs within milliseconds. ATS functionality is supported by any two compatible AC power sources, regardless of phase angle, to support a variety of advanced redundant power networking applications. Enables fault tolerant hot-swappable UPS protection when used with a single UPS and fully redundant UPS protection when each cord is connected to a separate UPS system. In a two-UPS environment, the primary input cable must be supported by a full time sine wave UPS with zero transfer time. Tripp Lite SmartOnline series is highly recommended for use as the primary UPS in a two-UPS application. ATS configurations utilizing separate mains circuits, backup generators and even separate utility power grid feeds are fully supported. On-board ATS processor constantly evaluates power quality on both input sources to prevent transfer to the secondary source when unavailable or of lower quality than the primary source. Front input LED's display primary or secondary power availability.
Main Features
- Single-phase local metered automatic transfer switch
- Supports dual input cords for redundancy

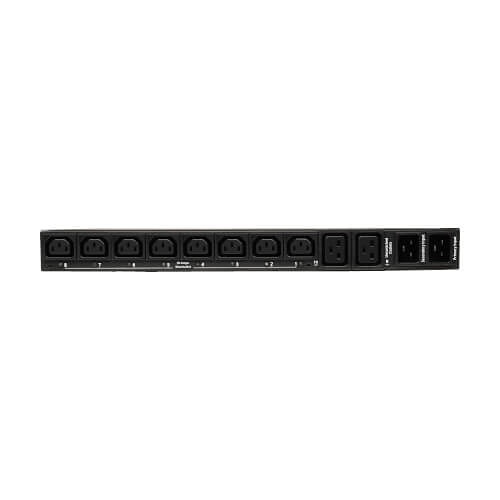

- 8 C13 and 2 C19 outputs for versatile connectivity
- 3.8kW power capacity for high-demand devices
- Automatic switchover within milliseconds
- Compatible with any two AC power sources
- Supports fault tolerant and redundant UPS protection

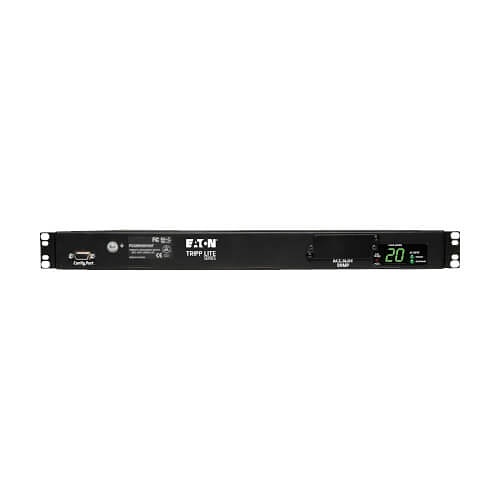

- LED indicators for power source availability
- Optional SNMPWEBCARD for Monitoring
General Information
Specifications
-
ADI Part Number TC-PDUMH2HV Brand Name Eaton Tripp Lite Manufacturer Tripp Lite Manufacturer Part Number PDUMH20HVAT Product Model PDUMH20HVAT Product Name Metered PDUMH20HVAT 10-Outlets PDU Product Series Metered Product Type PDU Sector Data Comm & Networking
-
TAA Compliant Yes
-
Depth 14" Width 17"
-
Limited Warranty 2-Year
-
Country of Origin TW Environmental Certification RoHS Environmentally Friendly Yes Package Contents - Local Metered PDU with ATS Support
- 2x IEC C19-to-C20 AC input cables
- Plug-lock cable retention sleeves
- Mounting hardware
- User manual with warranty information
