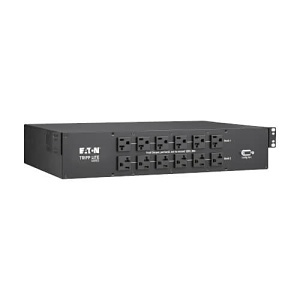

Eaton Tripp Lite PDUMNH30AT2 2.9kW 120V Single-Phase ATS/Monitored PDU, Dual L5-30P Inputs, 10' Cords, 2U, TAA
PDUMNH30AT2
|TC-PDUMNH30A
Shop All Eaton Tripp Lite
Eaton Tripp Lite PDUMNH30AT2 2.9kW 120V Single-Phase ATS/Monitored PDU, Dual L5-30P Inputs, 10' Cords, 2U, TAA
PDUMNH30AT2 | TC-PDUMNH30A
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
ATS PDU allows real-time current metering and remote power monitoring to help prevent circuit overloads and ensure proper load balance.
Features
Single-Phase 30A ATS PDU Distributes and Monitors Network-Grade Power in Real Time This monitored PDU provides real-time remote monitoring of voltage, frequency and load levels via its built-in network interface. Ideal for network IT applications, small computer rooms and other equipment rack applications, the PDUMNH30AT2 features 24 NEMA 5-15/20R 120V outlets and one NEMA L5-30R outlet, which distribute AC power to rack equipment. Dual 10-foot (3.1-meter) power cords with NEMA L5- 30P inputs connect to separate primary and secondary mains circuits, backup generators, UPS systems or utility power grids, including out-of-phase sources.
Switches from Primary to Secondary Power Source in Milliseconds
Dynamic solid-state automatic transfer switching (ATS) allows the PDU to switch to the secondary source within 1-5 milliseconds, should the primary source fail or become unstable, to ensure your connected equipment operates without interruption. An on-board ATS processor constantly evaluates the power quality of both input sources. It prevents switching if the secondary source is unavailable or of lower quality than the primary source.
Built-In LX Platform Network Management Card Allows Remote Access 24/7
The HTML5-based WEBCARDLX network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. The latest version of PowerAlert Device Manager (PADM20) provides enhanced remote management capabilities, including customizable dashboard graphs to fit user preferences. The PADM20 upgrade and Tripp Lite's PowerAlert Element Manager (PAEM) form a powerful tool for expanding maintenance functions in large installations, including firmware update checks and backup and restoration of device configurations.
Digital LED Display and Load Meter Helps Prevent Potentially Expensive Overloads
A three-digit LED display shows measured or calculated amperage, kilowatt and voltage values at a glance. Monitoring amperage helps ensure load levels remain well below maximum capacity with no danger of overload that could lead to costly downtime or damaged equipment. Maintaining proper load levels, even while adding new equipment, can keep your TCO (total cost of ownership) low. Monitoring current provides 1% billing grade accuracy.
Mounts into 2U of Rack Space or on a Wall
Features
Single-Phase 30A ATS PDU Distributes and Monitors Network-Grade Power in Real Time This monitored PDU provides real-time remote monitoring of voltage, frequency and load levels via its built-in network interface. Ideal for network IT applications, small computer rooms and other equipment rack applications, the PDUMNH30AT2 features 24 NEMA 5-15/20R 120V outlets and one NEMA L5-30R outlet, which distribute AC power to rack equipment. Dual 10-foot (3.1-meter) power cords with NEMA L5- 30P inputs connect to separate primary and secondary mains circuits, backup generators, UPS systems or utility power grids, including out-of-phase sources.
Switches from Primary to Secondary Power Source in Milliseconds
Dynamic solid-state automatic transfer switching (ATS) allows the PDU to switch to the secondary source within 1-5 milliseconds, should the primary source fail or become unstable, to ensure your connected equipment operates without interruption. An on-board ATS processor constantly evaluates the power quality of both input sources. It prevents switching if the secondary source is unavailable or of lower quality than the primary source.
Built-In LX Platform Network Management Card Allows Remote Access 24/7
The HTML5-based WEBCARDLX network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. The latest version of PowerAlert Device Manager (PADM20) provides enhanced remote management capabilities, including customizable dashboard graphs to fit user preferences. The PADM20 upgrade and Tripp Lite's PowerAlert Element Manager (PAEM) form a powerful tool for expanding maintenance functions in large installations, including firmware update checks and backup and restoration of device configurations.
Digital LED Display and Load Meter Helps Prevent Potentially Expensive Overloads
A three-digit LED display shows measured or calculated amperage, kilowatt and voltage values at a glance. Monitoring amperage helps ensure load levels remain well below maximum capacity with no danger of overload that could lead to costly downtime or damaged equipment. Maintaining proper load levels, even while adding new equipment, can keep your TCO (total cost of ownership) low. Monitoring current provides 1% billing grade accuracy.
Mounts into 2U of Rack Space or on a Wall
Use the included mounting hardware to install the all-metal housing into 2U of space in an EIA-standard 19-inch rack. You may also use the mounting brackets to secure the PDU to a wall or under a counter. Included cord retention brackets help organize connected power cords and eliminate cable clutter.
TAA-Compliant for GSA Schedule Purchases
The PDUMNH30AT2 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts
Main Features
- 2.9kW 120V Single-Phase ATS/Monitored PDU
- 24 5-15/20R and 1 L5-30R Outlets
- Dual L5-30P Inputs with 10' Cords
- Real-time remote monitoring via network interface
- Automatic transfer switching within 1-5 ms
- HTML5-Based Remote access with WEBCARDLX
- Digital LED display for load monitoring
- Mounts in 2U rack space or on a wall
General Information
Name: Eaton Tripp Lite PDUMNH30AT2 2.9kW 120V Single-Phase ATS/Monitored PDU, Dual L5-30P Inputs, 10' Cords, 2U, TAA
Category: Batteries & Power Supplies, Power Management, Power Distribution Units
UPC Code:
Country of Origin: .Country of origin is subject to change.
Specifications
ADI Part Number TC-PDUMNH30A Brand Name Eaton Tripp Lite Manufacturer Eaton Manufacturer Part Number PDUMNH30AT2 Product Model PDUMNH30AT2 Product Name PDUMNH30AT2 25-Outlets PDU Product Type PDU
Output Voltage 120V AC PDU Type Monitored Phase Single Phase Receptacle Detail 1 x NEMA L5-30R, 24 x NEMA 5-15/20R Receptacle Type NEMA 5-15/20R, NEMA L5-30R
TAA Compliant Yes
Network (RJ-45) Yes
Depth 11.9" Form Factor 2U Height 3.4" Mounting Orientation Horizontal Rack Height 2U Weight 13.71lb Width 17.3"
Input Current 30A Input Voltage 120V AC Plug/Connector Type NEMA L5-30P
Length 10' Mount Type Rack Mount, Wall Mount Protection Type Overload Protection
Limited Warranty 2-Year
Country of Origin TW Environmentally Friendly Yes Package Contents - PDUMNH30AT2 2.9kW Single-Phase ATS/Monitored PDU
- Configuration cable, USB-A to USB Micro-B
- Rack-mounting hardware
- (4) Cord retention brackets
- (24) Cable ties
- Owner's manual
