Overview
Specifications
Documents
Product Overview
Tripp Lite single phase Metered PDU / Power Distribution Units offer real-time local reporting of load level in amps via built-in digital display. Enables visual monitoring of PDU load levels to prevent overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
Main Features
- 20A Single-Phase 100-127V Local Metered PDU

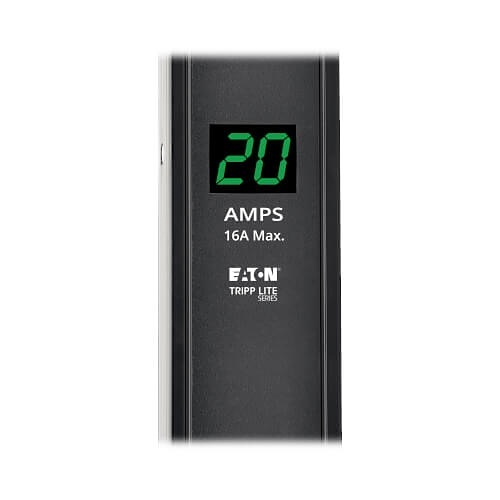

- Two-digit lighted meter for Output current
- NEMA L5-20P Input Plug with 15' line cord

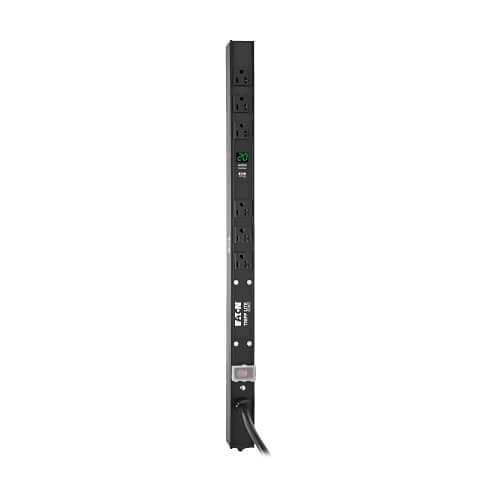

- 0U 24" Vertical rackmount format

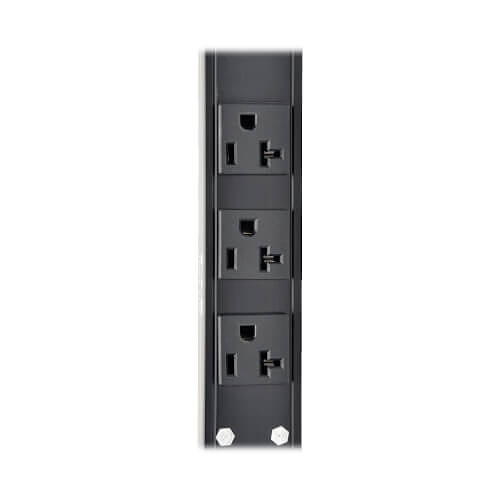

- 6 NEMA 5-15/20R Outlets
- Includes 20A circuit breaker
- Lighted Power switch with protective cover
- Toolless installation in compatible racks
- Bolt-down installation brackets included
General Information
Name: Eaton Tripp Lite PDUMV20-24 Single-Phase Local Metered PDU, 1.6-2kW, 100-127V 16A, NEMA 5-15/20R Outlets, L5-20P/5-20P Adapter, 24" (61cm) 0U Vertical
Category: Batteries & Power Supplies, Power Management, Power Distribution Units
UPC Code: 037332182845
Country of Origin: . Country of origin is subject to change.
Specifications
-
ADI Part Number TC-PDUMV2024 Brand Name Eaton Tripp Lite Manufacturer Eaton Manufacturer Part Number PDUMV20-24 Packaged Quantity 1 Product Line Metered Product Model PDUMV20-24 Product Name PDUMV20-24 Metered Vertical PDU Product Type PDU Weight 3.20 lb
-
Output Voltage 120V AC PDU Type Metered Receptacle Detail 6 x NEMA 5-15/20R Receptacle Type NEMA 5-15/20R
-
Depth 1.3" Height 24" Mounting Orientation Vertical Rack Height 0U Width 1.8"
-
Input Current 5A Input Voltage 120V AC Plug/Connector Type NEMA L5-20P
-
Mount Type Rack Mount Protection Type Overload Protection
-
Limited Warranty 2-Year
-
Country of Origin CN Environmental Certification RoHS Environmentally Friendly Yes Features RETIE (Colombia); NOM (Mexico); UL 60950-1 Package Contents - PDUMV20-24 Local Metered Vertical PDU
- (1) L5-20P to 5-20P plug adapter
- Mounting hardware and spare mounting buttons
- Instruction manual with warranty information
