Eaton Tripp Lite PDUMV30HV2 Single-Phase Local Metered PDU, 10' (3m) Cord, 4.8-5.8kW, 200-240V Outlets, 30A, C19 and 40 C13 Outlets, L6-30P Input, 70" (178cm) 0U Vertical, TAA

PDUMV30HV2|TC-PDUMV30H
Shop all Eaton Tripp Lite

Eaton Tripp Lite PDUMV30HV2 Single-Phase Local Metered PDU, 10' (3m) Cord, 4.8-5.8kW, 200-240V Outlets, 30A, C19 and 40 C13 Outlets, L6-30P Input, 70" (178cm) 0U Vertical, TAA

PDUMV30HV2|TC-PDUMV30H
Key Features
What's Included
  • 5.8kW Single-Phase Power Distribution
  • 48 Outlets; 8 C19 and 40 C13
  • Dual Digital Amm for Load Monitoring
Key Features
What's Included
  • 5.8kW Single-Phase Power Distribution
  • 48 Outlets; 8 C19 and 40 C13
  • Dual Digital Amm for Load Monitoring

Sign In for Dealer Pricing

Become an ADI Customer
Speco
Key Features
What's Included
  • 5.8kW Single-Phase Power Distribution
  • 48 Outlets; 8 C19 and 40 C13
  • Dual Digital Amm for Load Monitoring
Image of TC-PDUMV30H
Eaton Tripp Lite

Eaton Tripp Lite PDUMV30HV2 Single-Phase Local Metered PDU, 10' (3m) Cord, 4.8-5.8kW, 200-240V Outlets, 30A, C19 and 40 C13 Outlets, L6-30P Input, 70" (178cm) 0U Vertical, TAA

PDUMV30HV2 | TC-PDUMV30H

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

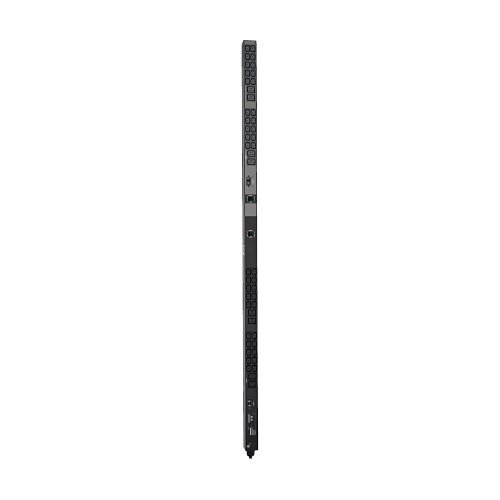

The 70" (178-centimeter) PDUMV30HV2 30A 200-240V 5.8kW Single-Phase Local Metered Power Distribution Unit features 48 outlets for distributing single-phase AC power to rack-mounted equipment, including computers, routers, switches and servers. Outlets are arranged in two separate load banks, each with 24 outlets (4 C19 and 20 C13), a dedicated 20A circuit breaker and a digital meter that reports the bank's real-time output current in amps. The ammeters let you visually monitor each bank and maintain balanced loads to prevent circuit overloads and downtime due to breakers tripping. Special guards prevent the breakers from tripping accidentally. Outlets, breakers and ammeters are color-coded and labeled for easy identification. An ideal PDU for server rooms, network closets and data centers, the PDUMV30HV2's all-metal housing comes ready to mount vertically in your rack using the preinstalled 9mm buttons or the included hardware. The NEMA L6-30P input plug with 10' (3.05m) cord connects to your facility's compatible AC power source, generator or protected UPS. Included C20 and C14 plug-lock inserts connect to your components' plugs to ensure they remain connected and continuously powered. Use the included ground screw to connect any equipment that requires a chassis ground.

Main Features

  • 5.8kW Single-Phase Power Distribution

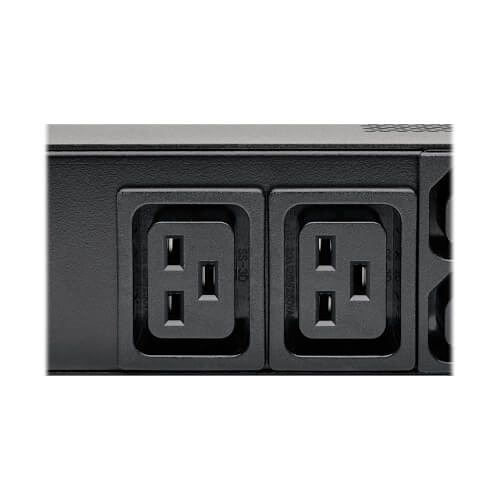

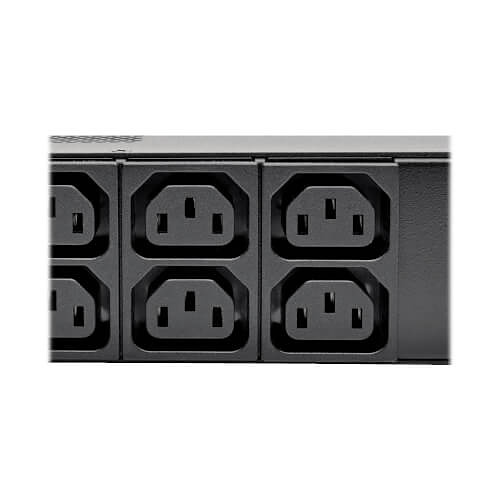

  • 48 Outlets; 8 C19 and 40 C13
  • Dual Digital Amm for Load Monitoring
  • NEMA L6-30P Input Plug with 10' Cord
  • Toolless 0U Vertical Installation
  • Color-Coded Load Banks with Circuit Breakers
  • Plug-Lock Inserts for Secure Connections
  • Ground Screw for Chassis Grounding

General Information

Name: Eaton Tripp Lite PDUMV30HV2 Single-Phase Local Metered PDU, 10' (3m) Cord, 4.8-5.8kW, 200-240V Outlets, 30A, C19 and 40 C13 Outlets, L6-30P Input, 70" (178cm) 0U Vertical, TAA
Category: Batteries & Power Supplies, Power Management, Power Distribution Units
UPC Code: 037332182807
Country of Origin: Taiwan. Country of origin is subject to change.
