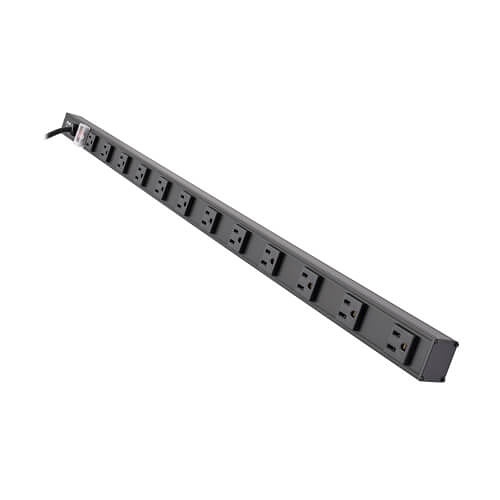

Tripp Lite PS3612B Tripp Lite PS3612 Vertical Power Strip, 15' (4.57m) Cord, 36" (91cm) Housing, 120V 15A, 12 NEMA 5-15R Outlets, 5-15P Input

Brand: Tripp Lite by Eaton
ADI #:TC-PS3612B Model #: PS3612B  Name: Tripp Lite PS3612B Tripp Lite PS3612 Vertical Power Strip, 15' (4.57m) Cord, 36" (91cm) Housing, 120V 15A, 12 NEMA 5-15R Outlets, 5-15P Input
  • Sturdy all-metal 36 inch corded strip format with 2.638 inch center-to-center outlet spacing
  • Includes 12 NEMA 5-15R output receptacles
  • Ideal for horizontal or vertical raceway style power distribution in office, workbench, industrial, networking and telecom applications
Tripp Lite 12 Outlet Power Strip 5-15R 15' Cord Vertical 5-15P 15A 36" Black

Product Overview

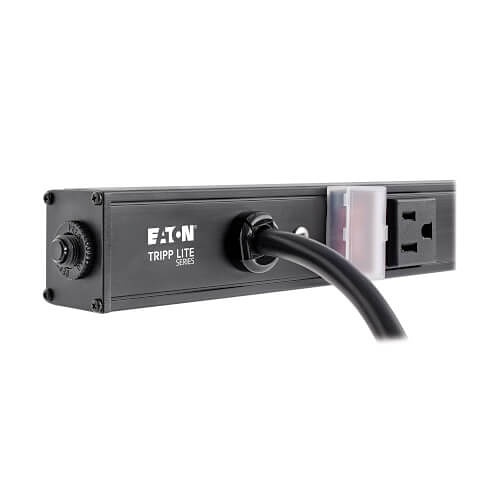

Tripp Lite's PS3612 power strip offers 15 amp, 120V multi-outlet AC power distribution in a convenient 36 inch mountable housing. Ideal for horizontal or vertical raceway style power distribution in office, workbench, industrial, networking and telecom applications. Includes 12 NEMA 5-15R output receptacles with 2.638 inch center-to-center spacing, 15 ft AC line cord and lighted power switch with locking transparent cover to prevent accidental shutoff. Sturdy all-metal extruded aluminum housing stands up to demanding network, laboratory or factory environments.

General Information

Name : Tripp Lite PS3612B Tripp Lite PS3612 Vertical Power Strip, 15' (4.57m) Cord, 36" (91cm) Housing, 120V 15A, 12 NEMA 5-15R Outlets, 5-15P Input , Tripp Lite by Eaton
Category : Power Strips
UPC Code : 037332199836
Country of Origin : China. Country of origin is subject to change.

Specifications

General Information

ADI Part Number : TC-PS3612B
Brand Name : Tripp Lite
Manufacturer : Tripp Lite by Eaton
Manufacturer Part Number : PS3612B
Packaged Quantity : 1
Product Model : PS3612B
Product Name : 12-Outlet Vertical Power Strip, 120V, 15A, 15-ft. Cord, 5-15P, 36 in.
Product Type : Power Strip
Weight (Approximate) (g) : 1723.651

Technical Information

Cord Length (mm) : 4572
Material : Aluminum
Maximum Frequency (Hz) : 60
Receptacles Spacing : 2.64"
Receptacles Spacing (mm) : 67.005

Audio

Shipping Weight (Approximate) (g) : 1678.292

Interfaces/Ports

Receptacles : 12 x NEMA 5-15R

Physical Characteristics

Color : Black
Depth : 1.5"
Depth (mm) : 38.1
Form Factor : Desk Mount, Horizontal/Vertical Rack Mount
Height : 36"
Height (mm) : 914.4
Shipping Depth : 40"
Shipping Depth (mm) : 1016
Shipping Height : 2.50"
Shipping Height (mm) : 63.5
Shipping Weight (Approximate) : 3.70 lb
Shipping Width : 3.40"
Shipping Width (mm) : 86.36
Weight (Approximate) : 3.80 lb
Width : 1.5"
Width (mm) : 38.1

Power Description

Circuit Breaker : Yes
Cord Length : 15'
Input Voltage : 120V AC
Input Voltage (V AC) : 120
Maximum Frequency : 60 Hz
Maximum Input Current : 15 A
Maximum Input Current (A) : 15
Minimum Frequency : 50 Hz
Minimum Frequency (Hz) : 50
Plug/Connector Type : NEMA 5-15P
Power Rating : 1800W
Power Rating (W) : 1800
Power Switch : Yes

Product Information

Mount Type : Rack Mount

Warranty

Limited Warranty : Lifetime

Miscellaneous

Certifications & Standards : <ul> <li>UL1363 (Power Tap): UL1363</li> <li>cUL / CSA (Canada): cUL</li> </ul>
System Requirements : AC Socket
