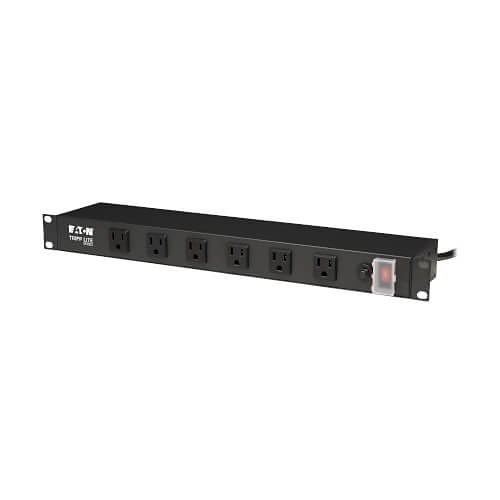

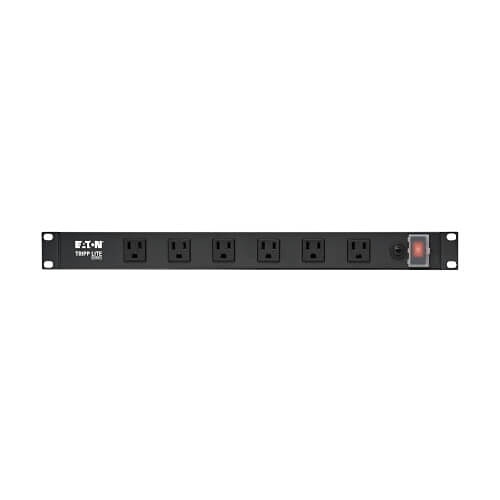

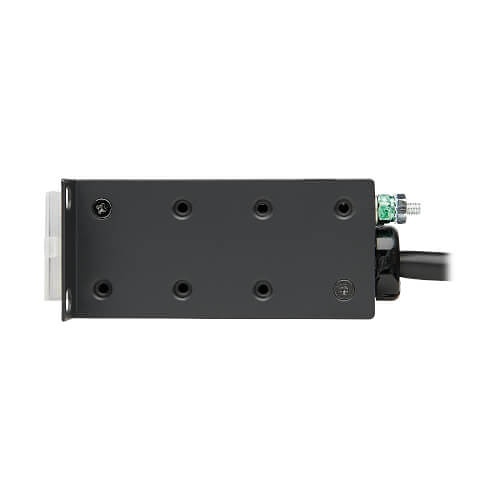

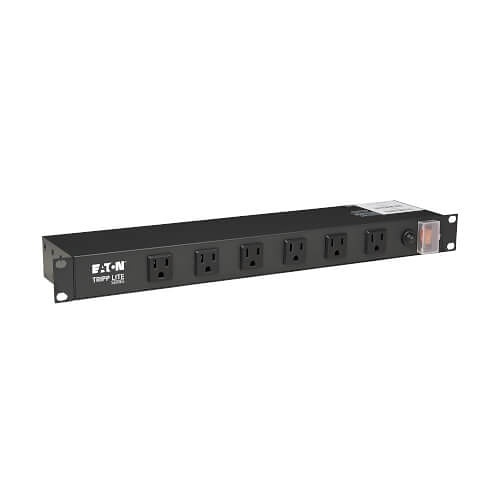

Tripp Lite RS-1215-RA 1U Rackmount Power Strip, 120V 15A, 5-15P, 12 Widely Spaced Right Angle Outlets, 15' Cord Wire
Brand: Tripp Lite by Eaton
ADI #:TC-RS1215RA
Model #: RS-1215-RA
Name: Tripp Lite RS-1215-RA 1U Rackmount Power Strip, 120V 15A, 5-15P, 12 Widely Spaced Right Angle Outlets, 15' Cord Wire
- Outlets placed at right angle to accommodate bulky transformers
- 12 widely spaced outlets (6 front / 6 rear)
- Designed for standard 19-in. racks (1U high)
Product Overview
Power strip offers 15A-capacity, AC power distribution in a versatile multi-mount cabinet. Detachable mounting flanges are configurable for rack-mount, wall-mount and under-counter installation. Power strip uses only one rack space when installed in any 19" rack meeting EIA standards. Unfiltered electrical passthrough makes this power strip perfect for distributing alternate waveform UPS or generator power in rack enclosures, network closets and more. 12 NEMA5-15R outlets are placed at a right angle with the ground pin at bottom. 15' AC power cord makes it easy to connect to faraway outlets. Lighted power switch has a cover that prevents risk of accidental shutoff.
General Information
Name : Tripp Lite RS-1215-RA 1U Rackmount Power Strip, 120V 15A, 5-15P, 12 Widely Spaced Right Angle Outlets, 15' Cord Wire , Tripp Lite by EatonCategory : Power Strips
UPC Code : 037332099402
Country of Origin : China. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : TC-RS1215RA
Brand Name : Tripp Lite
Manufacturer : Tripp Lite by Eaton
Manufacturer Part Number : RS-1215-RA
Packaged Quantity : 1 Each
Product Name : Power Strip 120V AC
Product Type : Power Strip
Weight (Approximate) (g) : 2086.525
Technical Information
Cord Length (mm) : 4572
Maximum Frequency (Hz) : 60
Audio
Shipping Weight (Approximate) (g) : 2413.111
Interfaces/Ports
Receptacles : 12 x NEMA 5-15R
Physical Characteristics
Color : Black
Depth : 4.5"
Depth (mm) : 114.3
Form Factor : Rack-mountable
Height : 1.8"
Height (mm) : 44.45
Shipping Depth : 20.30"
Shipping Depth (mm) : 515.62
Shipping Height : 9.30"
Shipping Height (mm) : 236.22
Shipping Weight (Approximate) : 5.32 lb
Shipping Width : 2.25"
Shipping Width (mm) : 57.15
Weight (Approximate) : 4.60 lb
Width : 17.5"
Width (mm) : 444.5
Power Description
Circuit Breaker : Yes
Cord Length : 15 ft
Input Voltage : 120 V AC
Input Voltage (V AC) : 120
Maximum Frequency : 60 Hz
Maximum Input Current : 15 A
Maximum Input Current (A) : 15
Maximum Output Voltage : 120 V AC
Maximum Output Voltage (V AC) : 120
Plug/Connector Type : NEMA 5-15P
Power Switch : Yes
Warranty
Limited Warranty : Lifetime
Miscellaneous
Certifications & Standards : <ul><li>UL1363</li><li>cUL</li></ul>
Country of Origin : China
Package Contents : <ul> <li>Power Strip 120V AC</li> <li>Instruction manual with warranty information</li> </ul>
