Product Overview

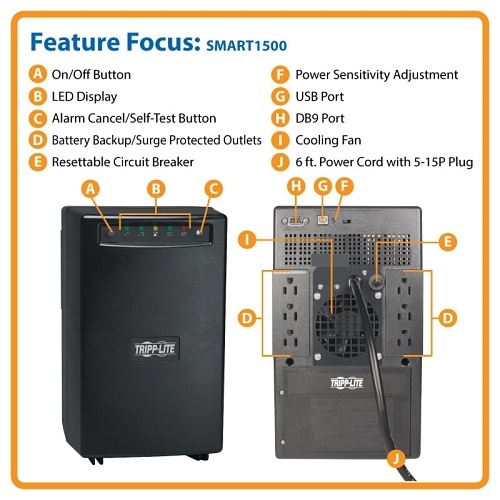

Tripp Lite's SMART1500 intelligent, line interactive UPS system protects servers, networking accessories and telecommunications equipment from blackouts, voltage fluctuations and transient surges. Large internal batteries offer 20 minutes half load runtime and 7 minutes at full load during power failures. 1500VA/980 watt power handling capability. Includes a total of 6 outlets, 1 of which can be individually powered on and off via software interface to selectively reboot remote equipment or to automatically shed less significant loads to extend battery runtime for more critical equipment. Supports remote monitoring of UPS and site power conditions via built-in USB and DB9 monitoring ports. Includes PowerAlert UPS monitoring and unattended shutdown software. Supports SNMP with optional SNMPWEBSOLO external adapter. Built-in audible alarm and 5 front panel LEDs indicate status of line power, battery power, battery low/replace, voltage regulation and load level.
General Information
Name : Tripp Lite SMART1500 SmartPro Line Interactive UPS with LCD Display, 900W, 120V 1500VA, 8-Outlet, 2U , Tripp Lite by Eaton
Category : UPS
UPC Code : 037332115812
Country of Origin : China. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : TC-SMART1500
Brand Name : Tripp Lite
Manufacturer : Tripp Lite by Eaton
Manufacturer Part Number : SMART1500
Product Line : SmartPro
Product Name : SmartPro 1500VA UPS
Product Type : Line-interactive UPS
Weight (Approximate) (g) : 17417.947
Technical Information
Backup/Run Time (Full Load) : 7 Minute
Backup/Run Time (Full Load) (Second) : 420
Backup/Run Time (Half Load) : 20 Minute
Backup/Run Time (Half Load) (Second) : 1200
Hot Swappable : Yes
Output Voltage : 120 V AC
Output Voltage (V AC) : 120
Receptacle Detail : 6 x NEMA 5-15R
Receptacle Type : NEMA 5-15R
Transfer Time : 4 ms
Transfer Time (Second) : 0.004
Battery Information
Battery Chemistry : Sealed Lead Acid (SLA)
Battery Life : 6 Year
Battery Life (Second) : 189341556
Typical Battery Recharge Time : 4 Hour
Typical Battery Recharge Time (Second) : 14400
Category Specific Attributes
Surge Energy Rating (J) : 480
Controls/Indicators
Status Indicators : Includes 5 front panel LEDs to indicate BATTERY CHARGE LEVEL, AC LINE POWER STATUS, VOLTAGE REGULATION STATUS, UPS LOAD LEVEL and BATTERY LOW / REPLACE information
Environmental Conditions
Maximum Operating Temperature : 122°F (50°C)
Maximum Operating Temperature (°F) : 122
Management
Alarm : Low Battery, On Battery, Overload
Network Management : SNMP Manageable
Physical Characteristics
Color : Black
Depth : 9"
Depth (mm) : 228.6
Form Factor : Tower
Height : 12.8"
Height (mm) : 323.85
Weight (Approximate) : 38.40 lb
Width : 7.5"
Width (mm) : 190.5
Power Description
Input Voltage : 120 V AC
Input Voltage (V AC) : 120
Plug/Connector Type : NEMA 5-15P
Surge Energy Rating : 480 J
Product Information
Load Capacity (W) : 1500.000
Software
Software Included : PowerAlert Software
Warranty
Limited Warranty : 3 Year
Miscellaneous
Country of Origin : China

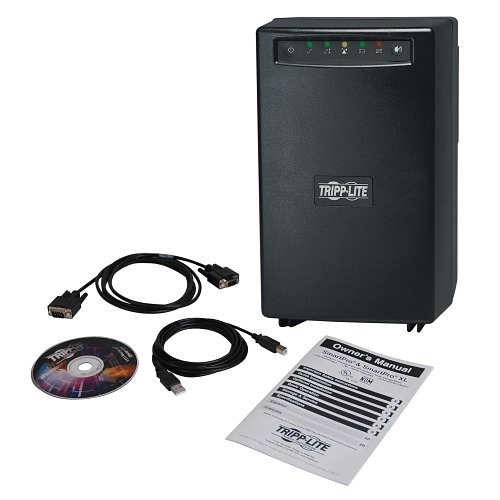

Package Contents : <ul><li>UPS System</li><li>USB and DB9 monitoring cables</li><li>PowerAlert unattended shutdown and UPS/Power monitoring software CD</li><li>Instruction manual with warranty information</li></ul>
