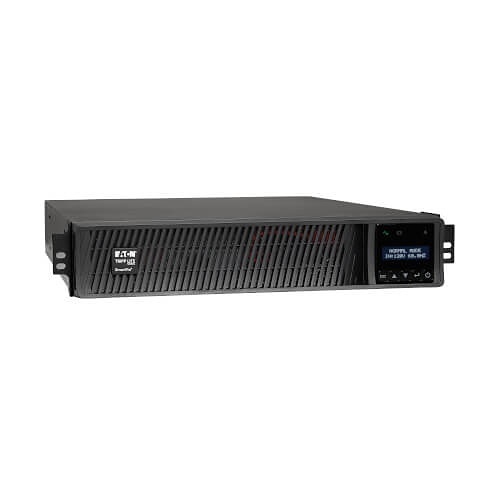

Tripp Lite SMART2200RMXL2U 1920W UPS Smart Rackmount AVR 120V LCD USB DB9 2URM
SMART2200RMXL2U|TC-SMT22XL2U
Tripp Lite SMART2200RMXL2U 1920W UPS Smart Rackmount AVR 120V LCD USB DB9 2URM
SMART2200RMXL2U|TC-SMT22XL2U
Tripp Lite by Eaton
Tripp Lite SMART2200RMXL2U 1920W UPS Smart Rackmount AVR 120V LCD USB DB9 2URM
SMART2200RMXL2UÂ |Â TC-SMT22XL2U
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Main Features
- 2.2kVA / 2200VA / 1920W 2U Rack or Tower Interactive UPS, Sine Wave
- Extended autonomy options up to 1600W, Power Factor 0.9, kit for installation on 4 poles
- USB, RS232, EPO and network management card slot options

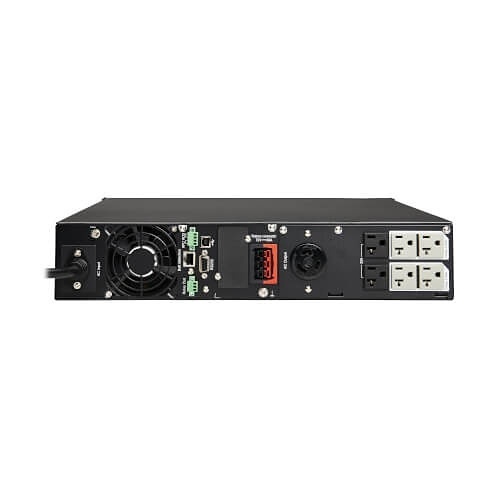

- 120V input, NEMA 5-20P;4 NEMA 5-20R and 4 NEMA 5-15R outlets
- 2 year warranty, 3 years with registration.Note: Registration is required for the 3-year warranty.
General Information
Name: Tripp Lite SMART2200RMXL2U 1920W UPS Smart Rackmount AVR 120V LCD USB DB9 2URM
Category: Tripp Lite by Eaton, Batteries & Power Supplies, Data Comm & Networking, Power Management, Power Products, UPS, UPS
UPC Code: 037332118059
Country of Origin: China. Country of origin is subject to change.
Specifications
-
ADI Part Number TC-SMT22XL2U Brand Name Tripp Lite by Eaton Manufacturer Tripp Lite by Eaton Manufacturer Part Number SMART2200RMXL2U Packaged Quantity 1 Each Product Line SmartPro Product Model SMART2200RMXL2U Product Name SMART2200RMXL2U UPS System Product Type Line-interactive UPS Weight (Approximate) (g) 29029.912 Â
-
Backup/Run Time (Full Load) 4.50 Minute Backup/Run Time (Full Load) (Second) 270 Backup/Run Time (Half Load) 12 Minute Backup/Run Time (Half Load) (Second) 720 Hot Swappable Yes Load Capacity (VA) 1950 VA Output Voltage 110V AC, 120V AC Output Voltage (V AC) 200, 208, 220, 230, 240 Overload Protection Yes Phase Single Phase Receptacle Detail 4 x NEMA 5-15R, 4 x NEMA 5-20R Receptacle Type NEMA 5-15R, NEMA 5-20R Transfer Time 1-4ms for normal mode Transfer Time (Second) 0.004 USB (HID Compliant) Port Yes Â
-
Battery Characteristics Valve-regulated Battery Chemistry Lead Acid DC System Voltage 72 V DC Replaceable Battery Yes Typical Battery Recharge Time 4.50-Hour Typical Battery Recharge Time (Second) 16200 Â
-
Output Voltage (V) 200, 208, 220, 230, 240 Surge Energy Rating (J) 380 Â
-

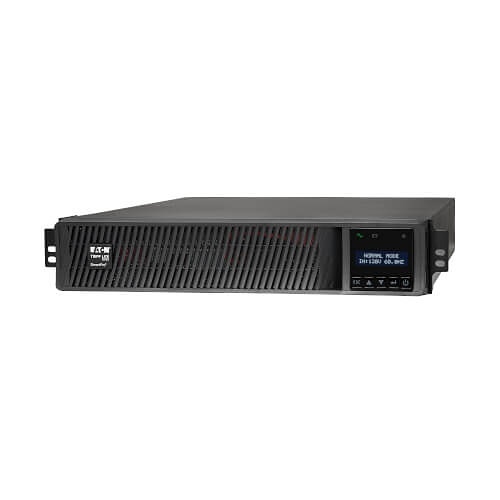

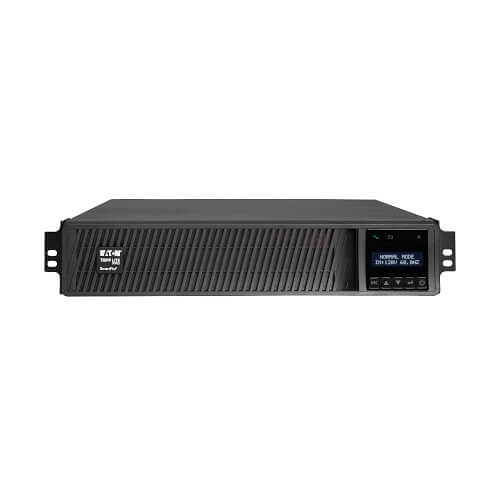

Status Indicators 5 Front Panel Leds:
- Green Power Led
- Green Voltage Correction Led
- 3 Color Battery Charge Led
- 3 Color Output Load Led
- Red Battery Warning Led
Â
-
Maximum Operating Elevation 10000 ft Maximum Operating Elevation (mm) 3048000 Maximum Operating Temperature 104°F (40°C) Maximum Operating Temperature (°F) 104 Maximum Storage Elevation 32808 ft Maximum Storage Elevation (mm) 9999878.4 Â
-
EPO Port Yes Serial Port Yes Â
-
Alarm Low Battery, On Battery, Overload Network Management SNMP Manageable Â
-
Application/Usage Data Storage, IT Equipment, Server, Switch Depth 23.7" Depth (mm) 601.98 Form Factor Rack Mount Height 3.5" Height (mm) 88.9 Rack Height 2U Weight (Approximate) 64 lb Width 17.5" Width (mm) 444.5 Â
-
Input Voltage 120V AC Input Voltage (V AC) 120 Output Frequency 60 Hz Plug/Connector Type NEMA 5-20P Surge Energy Rating 380 J Waveform Type Sine Wave Â
-
Load Capacity (VA) (W) 1950VA|1950W Load Capacity (W) 1950.000 Â
-
Limited Warranty 2-Year Â
-
Environmental Certification RoHS Environmentally Friendly Yes Package Contents - SMART2200RMXL2U UPS System
- Poweralert Software CD-ROM
- USB, Serial And EPO Cabling
- Owner's Manual
TAA Compliant Yes Â
