Overview
Specifications
Documents
Product Overview

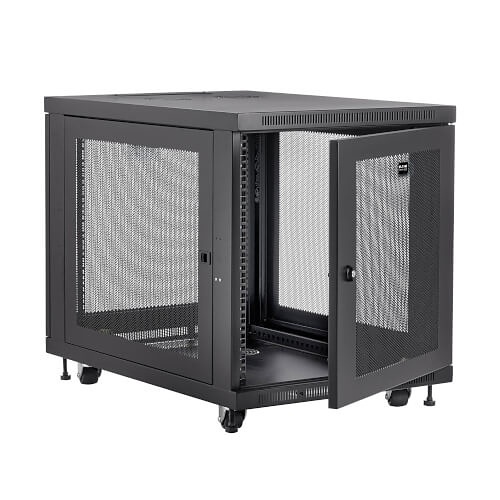

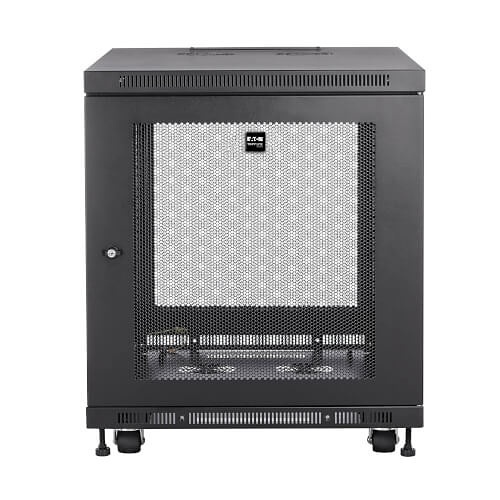

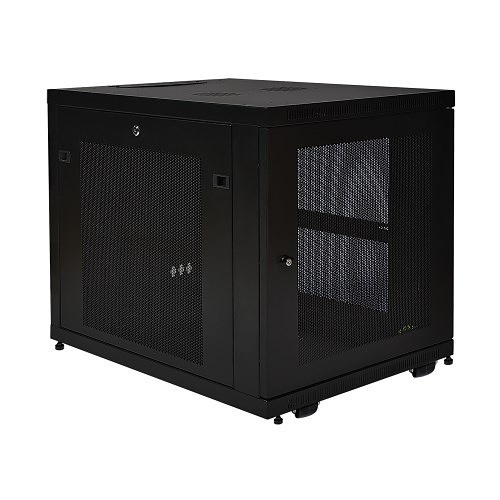

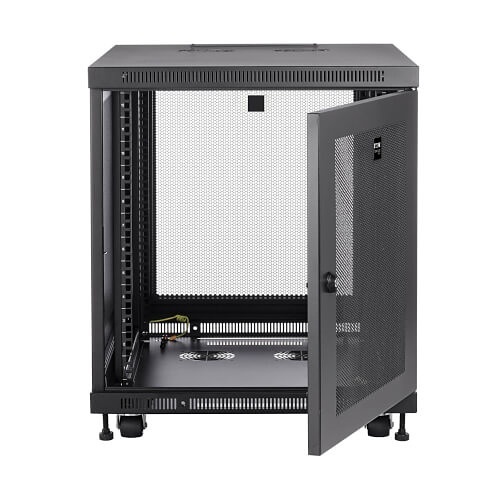

This SmartRack 12U Mid-Depth Rack Enclosure Cabinet is designed to simplify rack equipment installations and rack equipment maintenance. Compatible with all standard 19" rack equipment, it features front and rear pairs of vertical rails with square mounting holes. The rails are adjustable in quarter inches increments to accommodate equipment depths from 3 to 32.5", ideal for standard server installation. The rails are capable of supporting up to 1,000 lb (453.6 kg) of equipment. The top and bottom panels are provided with ports for cable routing, and are furnished with vents designed to help remove warm air from the enclosure and draw in cool air by convection. The panels also support installation of standard user-supplied case fans (SRFANWM, sold separately). With a locking reversible front / rear doors and locking removable side panels, the SR12UB provides for the safe, secure installation of all equipment. To simplify deployment, the SR12UB comes with an accessory caster kit so it can easily be maneuvered into the desired location, and then secured in place by adjusting the unit's levelers. It ships fully assembled for quick installation.
Main Features
- 12U Mid-Depth Rack Enclosure
- Supports up to 1000 lb (453.6 kg)
- Adjustable Rails for 3-32.5 inch Depths
- Locking, Reversible Front/Rear Doors
- Removable Side Panels for Easy Access
- Vented Panels for Convection Cooling
- Includes Casters for Easy Mobility
- Compatible with 19" Rack Equipment
- Square Mounting Holes for Easy Installation
- Numbered Rack Spaces for Easy Reference
General Information
Name: Eaton Tripp Lite SR12UB SmartRack 12U Mid-Depth Small Rack Enclosure
Category: Data Comm & Networking, Racks & Enclosures, Rack Cabinets & Frames
UPC Code: 037332157911
Country of Origin: China. Country of origin is subject to change.
Specifications
-
ADI Part Number TC-SR12UB Brand Name Eaton Tripp Lite Manufacturer Eaton Manufacturer Part Number SR12UB Product Line SmartRack Product Model SR12UB Product Name SmartRack SR12UB Enclosure Rack Cabinet Product Type Rack Cabinet Weight 105lb
-
Depth 33.5" Height 25" Maximum Weight Capacity 1000 lb Rack Height 12U Rack Width 19" Width 23.6"
-
Limited Warranty 5-Year
-
Country of Origin CN Environmental Certification RoHS Environmentally Friendly Yes Features UL 60950-1 Package Contents - SmartRack 12U Mid-Depth Rack Enclosure Cabinet
- (36) M6 screws
- (36) M6 cage nuts
- (36) M6 washers
- SRACASTER kit (includes 4 casters)
- (2) keys
- Owner's Manual
