Eaton Tripp Lite SR12UBFFD SmartRack Mid-Depth Small Rack Enclosure for Harsh Environments, 1000lb (453.6kg), 12U
SR12UBFFD|TC-SR12UBFFD
Eaton Tripp Lite SR12UBFFD SmartRack Mid-Depth Small Rack Enclosure for Harsh Environments, 1000lb (453.6kg), 12U
SR12UBFFD|TC-SR12UBFFD
Key Features
- 12U floor enclosure for harsh environments
- Protection from dirt, dust, drips, and splashes
- Adjustable mounting depths from 3" to 32.5"
Key Features
- 12U floor enclosure for harsh environments
- Protection from dirt, dust, drips, and splashes
- Adjustable mounting depths from 3" to 32.5"
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- 12U floor enclosure for harsh environments
- Protection from dirt, dust, drips, and splashes
- Adjustable mounting depths from 3" to 32.5"

Eaton Tripp Lite
Eaton Tripp Lite SR12UBFFD SmartRack Mid-Depth Small Rack Enclosure for Harsh Environments, 1000lb (453.6kg), 12U
SR12UBFFD | TC-SR12UBFFD
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
This SmartRack 12U Mid-Depth Rack Enclosure Cabinet protects sensitive electronic equipment from harsh conditions that would overwhelm a typical rack enclosure. It is deal for use in factories, construction areas, utility plants, warehouses and other areas with limited space that are high in moisture, dust and debris. It can protect your equipment from falling dirt, dust, drips, splashes and accidental contact with personnel. On the front door there is a built-in dust filter. The filter is removable and can be replaced with standard furnace filters; they're simple, inexpensive and effective. To compensate for the added air resistance of the filters, there are 4 large, high-performance intake fans in the front door. The fans pull air through the enclosure, from front to side. Adjustable rack rails with square mounting holes accommodate up to 12U of standard 19" rackmount equipment. Supports up to 1000 lb (453.6 kg) of equipment.
Main Features
- 12U floor enclosure for harsh environments
- Protection from dirt, dust, drips, and splashes
- Adjustable mounting depths from 3" to 32.5"
- Ventilating louvers on front door

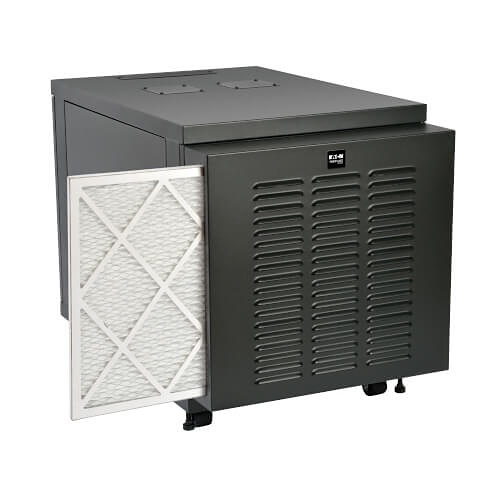

- Removable dust filter compatible with standard furnace filters
- 4 high-performance fans for efficient airflow
- Cable Ports maintain dust and moisture resistance
- Locking, reversible front door for security
- Locking, removable solid side panels
- Fully assembled for quick installation
General Information
Name: Eaton Tripp Lite SR12UBFFD SmartRack Mid-Depth Small Rack Enclosure for Harsh Environments, 1000lb (453.6kg), 12U
Category: Data Comm & Networking, Racks & Enclosures, Rack Cabinets & Frames
UPC Code: 037332183439
Country of Origin: China. Country of origin is subject to change.
Specifications
-
ADI Part Number TC-SR12UBFFD Brand Name Eaton Tripp Lite Manufacturer Eaton Manufacturer Part Number SR12UBFFD Product Line SmartRack Product Model SR12UBFFD Product Name SmartRack 12U Industrial Floor Enclosure (Includes Doors and Side Panels) Product Type Rack Cabinet Weight 96 lb
-
Color Black Depth 38.5" Form Factor Floor Standing Height 25.2" Maximum Weight Capacity 1000 lb Rack Depth 32.50" Rack Height 12U Rack Width 19" Width 23.6"
-
Limited Warranty 2-Year
-
Assembly Required No Country of Origin CN Environmental Certification RoHS Environmentally Friendly Yes Features Adjustable Mounting Rails, Cable Management, Casters, Leveling Feet, Lockable Door, Removable Door, Removable Side Panel
