Overview
Specifications
Documents
Product Overview

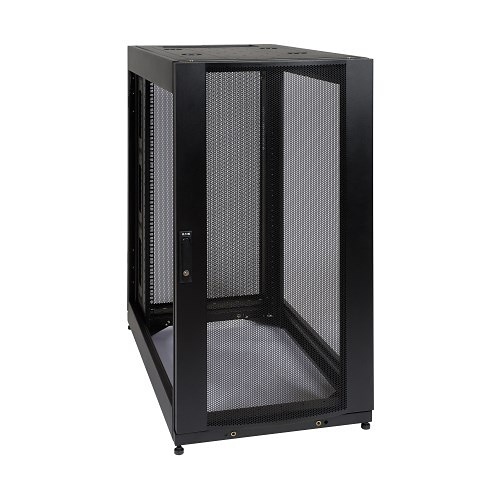

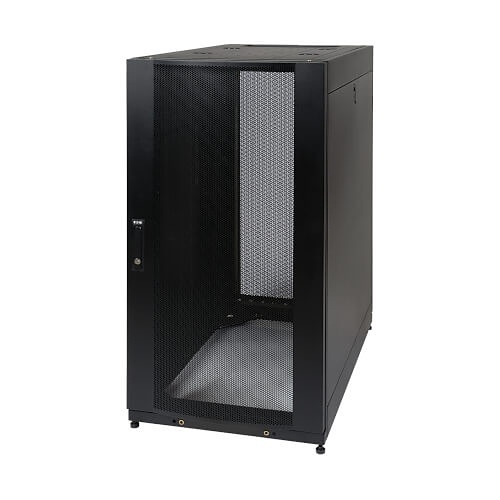

The SR25UB premium SmartRack Enclosure Cabinet is packed with features designed to simplify rack equipment installations and rack equipment maintenance: top and bottom cable routing ports, perforated door and side panels to promote efficient airflow, adjustable vertical mounting rails and more. And as part of the SmartRack family, the SR25UB is compatible with an extensive range of rack-mount accessories, enabling you to customize your solution to meet any requirement. The SR25UB ships fully assembled for quick installation. The SR25UB has 25U of capacity and is compatible with all standard 19" rack equipment. The front and rear pairs of vertical rails feature square mounting holes and are numbered by rack space for easy reference. The rails are adjustable in quarter inches increments to accommodate equipment depths from four to 37". Adjustment is quick and convenient: simply unscrew the rails, slide them to the desired depth and restore the screws. The rails feature square mounting holes and are capable of supporting up to 3,500 lb (1588 kg) of equipment with included installation hardware (2,250 lb (1020.6 kg) rolling capacity). With a locking, reversible front door and locking, removable side panels, SR25UB provides safe, secure installation for all equipment. This prevents unauthorized access to installed equipment while making it easy for authorized personnel to perform inspections, maintenance and equipment replacement. The enclosure meets all requirements toward PCI DSS compliance. The top and bottom panels of the SR25UB are furnished with vents designed to help remove warm air from the enclosure and draw in cool air by convection. They also support installation of standard user-supplied case fans (SRFANROOF). The top and bottom panels are also provided with ports for cable routing. To simplify deployment, the SR25UB comes with casters that enable it to be maneuvered into to desired location, and then secured in place by adjusting the unit's levelers. Note: The casters are intended for minor position adjustments within the final installation area only and are not designed for moving the enclosure over long distances.
Main Features
- 25U SmartRack with standard-depth for efficient server storage
- Ships fully assembled with removable heavy-duty casters
- Adjustable mounting rails with easy-view depth index
- Tool-less accessory mounting for quick installation
- Includes 50 M6 cage nuts and screws for mounting
- Textured powder coat finish for environmental resistance
- 65%+ open space for optimal ventilation
- Locking, reversible, and removable front and rear doors

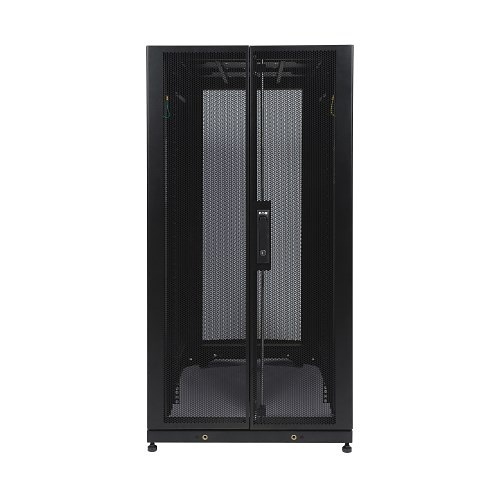

- Split rear door design for reduced clearance needs
- Locking removable side panels for easy installation
General Information
Name: Eaton Tripp Lite SR25UB SmartRack Standard-Depth Half-Height Server Rack Enclosure with Doors and Side Panels, 42" (107cm), 3000lb (1360.8kg), 25U
Category: Data Comm & Networking, Racks & Enclosures, Rack Cabinets & Frames
UPC Code: 037332123763
Country of Origin: China. Country of origin is subject to change.
Specifications
ADI Part Number TC-SR25UB Brand Name Eaton Tripp Lite Manufacturer Eaton Manufacturer Part Number SR25UB Product Line SmartRack Product Model SR25UB Product Name SR25UB Rack Enclosure Server Cabinet - 25U - 19" Product Type Rack Cabinet
Depth 43" Height 49" Maximum Weight Capacity 3000 lb Rack Height 25U Rack Width 19" Width 23.6"
Limited Warranty 5-Year
Compatibility Compatibility with air management accessories Country of Origin CN Features UL 60950-1 Package Contents - SR25UB Rackmount Enclosure
- (2) Side panels
- (2) Side panel locks
- (50) M6 screws
- (50) M6 cage nuts
- (50) M6 washers
- (2) Door & side panels
- Owner's Manual
