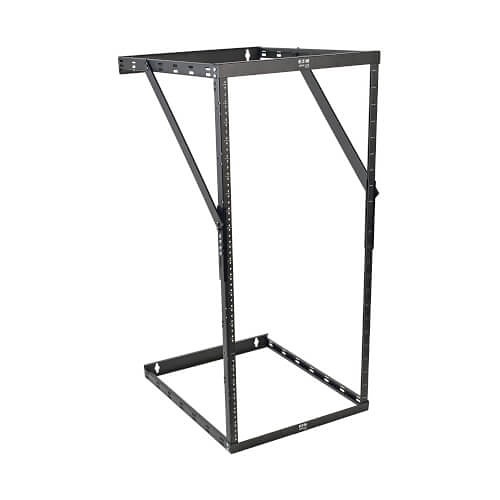

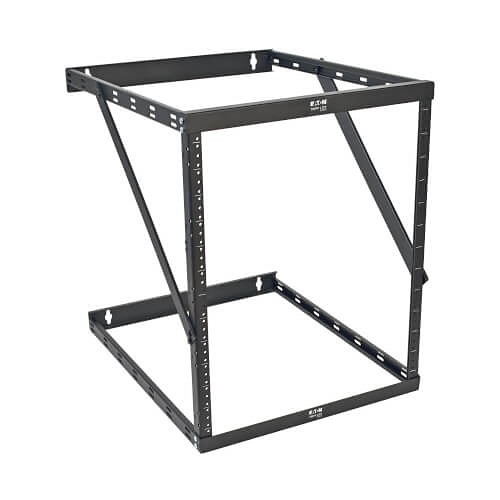

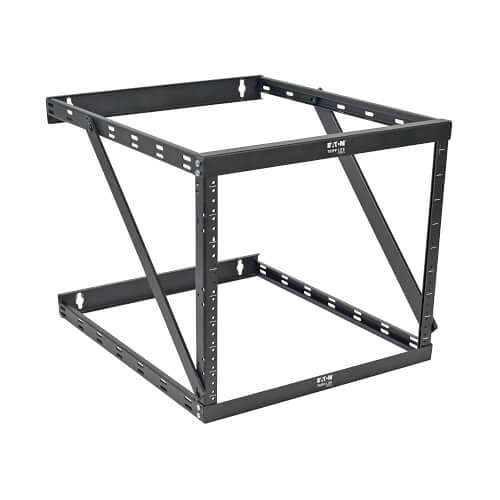

Eaton Tripp Lite SR42BMDEXPNDNR3 42U SmartRack, 4-Post Mid-Depth Open Frame Rack, Expansion Version, No Sides, Doors or Roof
SR42BMDEXPNDNR3|TC-SR42BMDEX
Eaton Tripp Lite SR42BMDEXPNDNR3 42U SmartRack, 4-Post Mid-Depth Open Frame Rack, Expansion Version, No Sides, Doors or Roof
SR42BMDEXPNDNR3|TC-SR42BMDEX
Key Features
What's Included
- 42U mid-depth open frame rack
- Supports 3000 lb of 19-inch equipment
- Adjustable rails from 4 to 31 inches
Key Features
What's Included
- 42U mid-depth open frame rack
- Supports 3000 lb of 19-inch equipment
- Adjustable rails from 4 to 31 inches
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
What's Included
- 42U mid-depth open frame rack
- Supports 3000 lb of 19-inch equipment
- Adjustable rails from 4 to 31 inches

Eaton Tripp Lite
Eaton Tripp Lite SR42BMDEXPNDNR3 42U SmartRack, 4-Post Mid-Depth Open Frame Rack, Expansion Version, No Sides, Doors or Roof
SR42BMDEXPNDNR3 | TC-SR42BMDEX
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The SR42BMDEXPNDNR3 offers 36" (927mm) depth opposed to the standard 42" (1050mm). The SR42BMDEXPNDNR3 houses 3,500 lb (1588 kg) of standard 19" rack equipment in 42U. It is an expansion model that comes without sides, doors or roof. The front and rear pairs of vertical rails have square mounting holes that are adjustable in quarter-inches increments from 4 to 28.75". Adjustment is quick and an easy-view depth index ensures consistent rail placement without requiring time-consuming measurements. Each rack space within the enclosure is numbered for ready reference and supports tool-less button-mount 0U installation of up to four compatible PDUs and cable managers. All components of the SR42BMDEXPNDNR3 are grounded to the enclosure frame. Front and rear threaded grounding points are provided for connection to the facility earth ground. To simplify deployment, the SR42BMDEXPNDNR3 comes with preinstalled 3" casters that enable it to be easily maneuvered into the desired location, where it can be secured by adjusting the preinstalled levelers. Note: The casters are intended for minor position adjustments and are not designed for moving the enclosure over long distances.
Main Features
- 42U mid-depth open frame rack
- Supports 3000 lb of 19-inch equipment
- Adjustable rails from 4 to 31 inches
- Tool-less 0U PDU and cable manager installation
- Preinstalled casters for easy positioning
- 5-year product warranty
- Compatible with Tripp Lite accessories
- 3500 lb weight capacity, stationary and rolling
- Built-in baying tabs for secure row combination
- Leveling feet for uneven floors, removable
General Information
Name: Eaton Tripp Lite SR42BMDEXPNDNR3 42U SmartRack, 4-Post Mid-Depth Open Frame Rack, Expansion Version, No Sides, Doors or Roof
Category: Data Comm & Networking, Racks & Enclosures, Rack Cabinets & Frames
UPC Code: 037332175687
Country of Origin: China. Country of origin is subject to change.
Specifications
-
ADI Part Number TC-SR42BMDEX Brand Name Eaton Tripp Lite Manufacturer Tripp Lite Manufacturer Part Number SR42BMDEXPNDNR3 Product Line SmartRack Product Model SR42BMDEXPNDNR3 Product Name 42U Mid-Depth 4-Post SmartRack Premium Open Frame Rack (No Sides, Doors or Roof) Product Type Rack Frame
-
Application/Usage Commercial Color Black Depth 36" Maximum Weight Capacity 795.38 lb Rack Height 42U Width 24"
-
Limited Warranty 5-Year
-
Assembly Required No Country of Origin CN Environmental Certification RoHS Environmentally Friendly Yes Package Contents - SR42BMDEXPNDNR3
- Mounting Hardware
- Owner's Manual
