Eaton Tripp Lite SR42UBMDEXPND SmartRack Mid-Depth Open Frame Rack without Sides or Doors, 36" (91cm), 3000lb (1360.8kg), 4-Post, 42U
SR42UBMDEXP | TC-SR42UBMDE
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

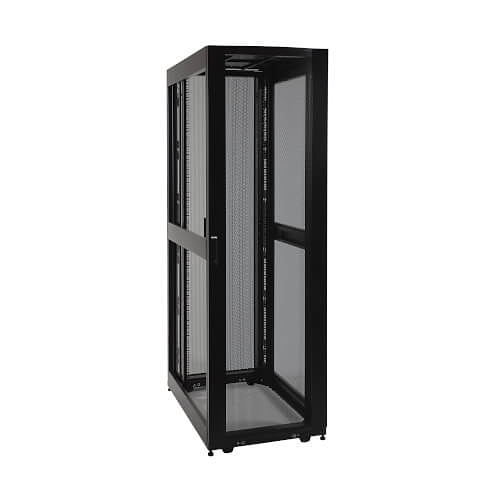

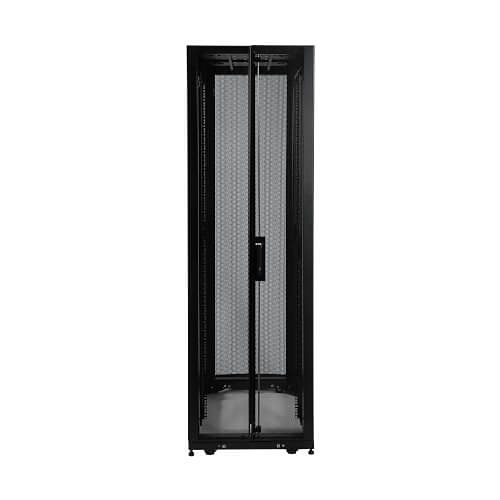

The SR42UBMDEXP is an expansion model with a depth of 36" (927mm) and width of 24" (600mm). An expansion cabinet is ideal when several cabinets are bayed together. It has doors and a roof, but no side panels. Its integrated baying tabs make it easy to combine multiple enclosures in rows for data center application. The SR45UBMDEXP is also compatible with hot aisle / cold aisle configurations. The SR42UBMDEXP houses 3,500 lb (1588 kg) of standard 19" rack equipment in 42U. Offers vendor-neutral square hole / cage nut mounting for guaranteed compatibility with all EIA-310-E compliant 19" equipment. Its front and rear pairs of vertical rails are adjustable in quarter-inches increments from 4 to 28.75". Adjustment is quick and an easy-view depth index ensures consistent rail placement without requiring time-consuming measurements. Each rack space within the enclosure is numbered for ready reference. Two of these adjustable vertical mounting rails support toolless button-mount 0U installation of up to four compatible PDUs and cable managers. This feature makes it easier to route cabling to rack equipment and reduces cord clutter. The top panel of the SR42UBMDEXP is vented to help remove warm air from the enclosure and draw in cool air by convection. The top panel includes ports for cable routing and can be quickly removed without tools. To facilitate cable access, the SR42UBMDEXP is open-bottom. All components of the SR42UBMDEXP are grounded to the enclosure frame. Front and rear threaded grounding points are provided for connection to the facility earth ground. The removable front and rear doors feature quick-release ground wires. To simplify deployment, the SR42UBMDEXP comes with preinstalled casters that enable it to be easily maneuvered into the desired location, where it can be secured by adjusting the preinstalled levelers. Note: The casters are intended for minor position adjustments and are not designed for moving the enclosure over long distances.
Main Features
- 42U SmartRack Mid-Depth Expansion
- Ships fully assembled with removable casters
- Adjustable equipment mounting rails
- Toolless accessory mounting rails
- Includes 50 M6 cage nuts and screws
- Textured powder coat finish
- 65%+ open space for ventilation
- 31" maximum internal depth
- 3500 lb stationary weight capacity
- Locking, reversible, removable doors
General Information
Name: Eaton Tripp Lite SR42UBMDEXPND SmartRack Mid-Depth Open Frame Rack without Sides or Doors, 36" (91cm), 3000lb (1360.8kg), 4-Post, 42U
Category: Data Comm & Networking, Racks & Enclosures, Rack Cabinets & Frames
UPC Code: 037332175663
Country of Origin: China. Country of origin is subject to change.
Specifications
-
ADI Part Number TC-SR42UBMDE Brand Name Eaton Tripp Lite Manufacturer Eaton Manufacturer Part Number SR42UBMDEXP Product Line SmartRack Product Model SR42UBMDEXP Product Name 42U Mid-Depth 4-Post SmartRack Premium Open Frame Rack (No Sides or Doors) Product Type Rack Frame Weight 103 lb
-
Color Black Depth 36" Height 78.5" Material Metal, Steel Maximum Weight Capacity 3000 lb Rack Height 42U Rack Width 19" Width 23.6"
-
Limited Warranty 5-Year
-
Assembly Required No Country of Origin CN Environmental Certification RoHS Environmentally Friendly Yes Features UL 60950-1 Package Contents - SR42UBMDEXP
- (2) Door keys
- (50) M6 screws
- (50) M6 cage nuts
- (50) M6 washers
- Owner's Manual
