Eaton Tripp Lite SR42UBSD SmartRack Shallow-Depth Rack Enclosure Cabinet with Doors and Side Panels, 32" (81cm), 3000lb (1360.8kg), 42U
SR42UBSD|TC-SR42UBSD
Eaton Tripp Lite SR42UBSD SmartRack Shallow-Depth Rack Enclosure Cabinet with Doors and Side Panels, 32" (81cm), 3000lb (1360.8kg), 42U
SR42UBSD|TC-SR42UBSD
Key Features
What's Included
- Shallow depth for limited space installations
- Ships fully assembled with removable casters
- Adjustable mounting rails with easy-view depth index
Key Features
What's Included
- Shallow depth for limited space installations
- Ships fully assembled with removable casters
- Adjustable mounting rails with easy-view depth index
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
What's Included
- Shallow depth for limited space installations
- Ships fully assembled with removable casters
- Adjustable mounting rails with easy-view depth index
Eaton Tripp Lite
Eaton Tripp Lite SR42UBSD SmartRack Shallow-Depth Rack Enclosure Cabinet with Doors and Side Panels, 32" (81cm), 3000lb (1360.8kg), 42U
SR42UBSD | TC-SR42UBSD
Please sign in to view pricing and availability and to add to cart.
Accessories
Keystone Jacks
ADI # 0E-C6KEYBL10
MODEL # 0E-C6KEYBL10
0E-C6KEYBL10|0E-C6KEYBL10
Sign In for Dealer Pricing
Rack Accessories
ADI # TC-4POSTRAIL
MODEL # 4POSTRAILKIT
4POSTRAILKIT|TC-4POSTRAIL
Sign In for Dealer Pricing
Rack Bases, Doors & Panels
ADI # TC-SR1UPANEL
MODEL # SR1UPANEL10
SR1UPANEL10|TC-SR1UPANEL
Sign In for Dealer Pricing
Rack Accessories
ADI # TC-SRBOLTDWN
MODEL # SRBOLTDOWN
SRBOLTDOWN|TC-SRBOLTDWN
Sign In for Dealer Pricing
Cable Ducts
ADI # TC-SRCABDCT1
MODEL # SRCABLEDUCT1U
SRCABLEDUCT1U|TC-SRCABDCT1
Sign In for Dealer Pricing
Cable Managers
ADI # TC-SRCABL1U
MODEL # SRCABLERING1U
SRCABLERING1U|TC-SRCABL1U
Sign In for Dealer Pricing
Cable Managers
ADI # TC-SRCABL2U
MODEL # SRCABLERING2U
SRCABLERING2U|TC-SRCABL2U
Sign In for Dealer Pricing
Rack Accessories
ADI # TC-SRCAGENUS
MODEL # SRCAGENUTS1224
SRCAGENUTS1224|TC-SRCAGENUS
Sign In for Dealer Pricing
Overview
Specifications
Documents
Product Overview

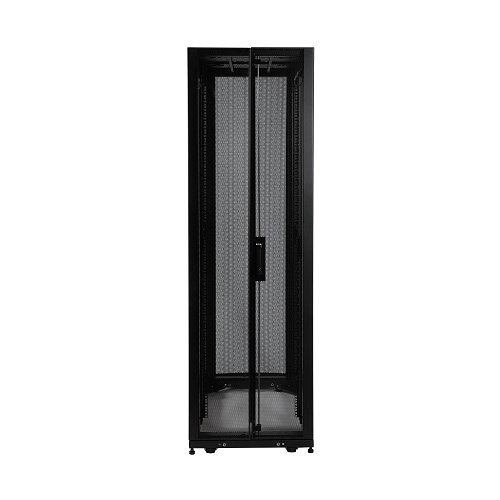

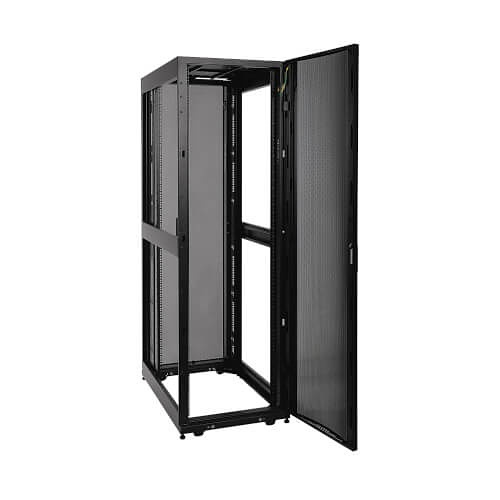

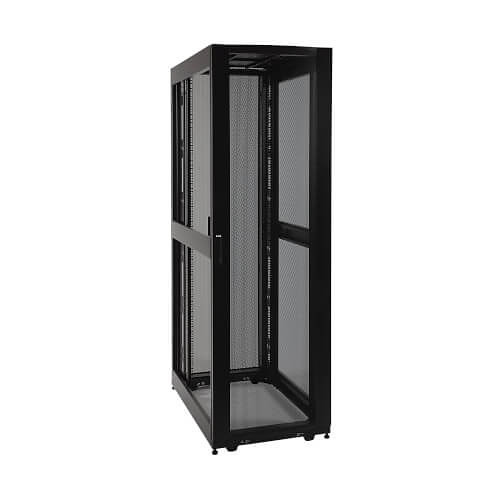

The shallow depth of the SR42UBSD makes it an ideal cabinet for shallow-depth audio / video equipment, smaller equipment installs or areas with limited floor space. It houses 3,500 lb (1588 kg) of standard 19" rack equipment in 42U. Its front and rear pairs of vertical rails have square mounting holes that are adjustable in quarter-inches increments from 4 to 27". Adjustment is quick and an easy-view depth index ensures consistent rail placement without requiring time-consuming measurements. Each rack space within the enclosure is numbered for ready reference. Two of the adjustable vertical mounting rails support tool-less button-mount 0U installation of up to four compatible PDUs and cable managers. This feature makes it easier to route cabling to rack equipment and reduces cord clutter. With its locking, reversible, removable front and rear doors and locking, removable side panels, the SR42UBSD provides ultimate equipment safety. The side panels are half-size for ease of removal and reinstallation. The split rear door design allows the enclosure to be placed closer to a wall. The SR42UBSD meets all requirements toward PCI DSS compliance. The top panel of the SR42UBSD is vented to help remove warm air from the enclosure and draw in cool air by convection. The top panel includes ports for cable routing and can be quickly removed without tools. To facilitate cable access, the SR42UBSD is open-bottom. The SR42UBSD features a massive front-to-rear ventilation capacity that meets or exceeds server manufacturer requirements. Its integrated baying tabs make it easy to combine multiple enclosures in rows for data center applications. This enclosure is also compatible with hot-aisle / cold-aisle configurations. All components of the SR42UBSD are grounded to the enclosure frame. Front and rear threaded grounding points are provided for connection to the facility earth ground. The removable front and rear doors feature quick-release ground wires. To simplify deployment, the SR42UBSD comes with preinstalled casters that enable it to be easily maneuvered into the desired location, where it can be secured by adjusting the preinstalled levelers. Note: The casters are intended for minor position adjustments and are not designed for moving the enclosure over long distances.
Main Features
- Shallow depth for limited space installations
- Ships fully assembled with removable casters
- Adjustable mounting rails with easy-view depth index
- Toolless accessory mounting for PDUs and Cable managers
- Includes 50 M6 cage nuts and screws
- Textured powder coat finish for durability
- 65%+ open space for ventilation
- 27" maximum internal depth
- 3500 lb stationary, 2250 lb rolling weight capacity
- Locking, reversible, and removable doors and panels
General Information
Name: Eaton Tripp Lite SR42UBSD SmartRack Shallow-Depth Rack Enclosure Cabinet with Doors and Side Panels, 32" (81cm), 3000lb (1360.8kg), 42U
Category: Data Comm & Networking, Racks & Enclosures, Rack Cabinets & Frames
UPC Code: 037332163936
Country of Origin: China. Country of origin is subject to change.
Specifications
-
ADI Part Number TC-SR42UBSD Brand Name Eaton Tripp Lite Manufacturer Eaton Manufacturer Part Number SR42UBSD Product Line SmartRack Product Model SR42UBSD Product Name SmartRack SR42UBSD Premium Rack Cabinet Product Type Rack Cabinet Weight 260.15 lb
-
Application/Usage Commercial Color Black Depth 32" Height 78.5" Material Metal, Steel Maximum Weight Capacity 3000 lb Rack Height 42U Rack Width 19" Width 23.6"
-
Limited Warranty 5-Year
-
Compatibility Airflow optimization accessories as well as cable management accessories Country of Origin CN Environmental Certification RoHS Environmentally Friendly Yes Features UL 60950-1 Package Contents - SR42UBSD Rack Enclosure
- (4) Side panels
- (4) Side panel locks
- (2) Door & side panel keys
- (50) M6 screws
- (50) M6 cage nuts
- (50) M6 washers
- Owner's Manual
