Tripp Lite SR42UBSD1032 42U SmartRack Shallow-Depth Rack Enclosure Cabinet, Threaded 10-32 Mounting Holes with Doors and Side Panels
SR42UBSD1032 | TC-SR42UBSD1
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

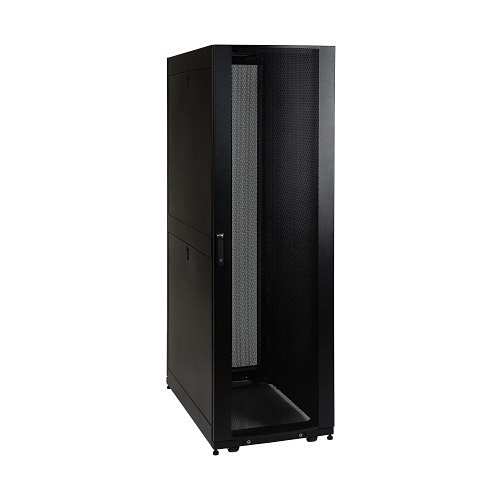

The SR42UBSD1032 is a shallow-depth rack enclosure. Its 32" depth (825mm) is ideal for shallow-depth audio / video equipment, smaller equipment installs or areas with limited floor space. The SR42UBSD1032 houses 3,500 lb (1588 kg) of standard 19" rack equipment in 42U. Its front and rear pairs of vertical rails have threaded 10-32 mounting holes that are adjustable in quarter-inches increments from 4 to 27". Adjustment is quick and an easy-view depth index ensures consistent rail placement without requiring time-consuming measurements. Each rack space within the enclosure is numbered for ready reference. The SR42UBSD1032 features a massive front-to-rear ventilation capacity that meets or exceeds server manufacturer requirements. Its integrated baying tabs make it easy to combine multiple enclosures in rows for data center applications. This enclosure is also compatible with hot-aisle/cold-aisle configurations. With its locking, reversible, removable front and rear doors and locking, removable side panels, the SR42UBSD1032 provides ultimate equipment safety. The side panels are half-size for ease of removal and reinstallation. The split rear door design allows the enclosure to be placed closer to a wall. The SR42UB1032 meets all requirements toward PCI DSS compliance. The top panel of the SR42UBSD1032 is vented to help remove warm air from the enclosure and draw in cool air by convection. The top panel includes ports for cable routing and can be quickly removed without tools. To facilitate cable access, the SR42UB1032 is open-bottom. All components of the SR42UBSD1032 are grounded to the enclosure frame. Front and rear threaded grounding points are provided for connection to the facility earth ground. The removable front and rear doors feature quick-release ground wires. To simplify deployment, the SR42UBSD1032 comes with preinstalled casters that enable it to be easily maneuvered into the desired location, where it can be secured by adjusting the preinstalled levelers. Note: The casters are intended for minor position adjustments and are not designed for moving the enclosure over long distances.
Main Features
- 42U SmartRack with shallow-depth design
- Threaded 10-32 mounting holes
- Ships fully assembled with removable casters
- Adjustable mounting rails in 1/4" increments
- Toolless accessory mounting rails for PDUs
- Textured powder coat finish for durability
- 65%+ open space for ventilation

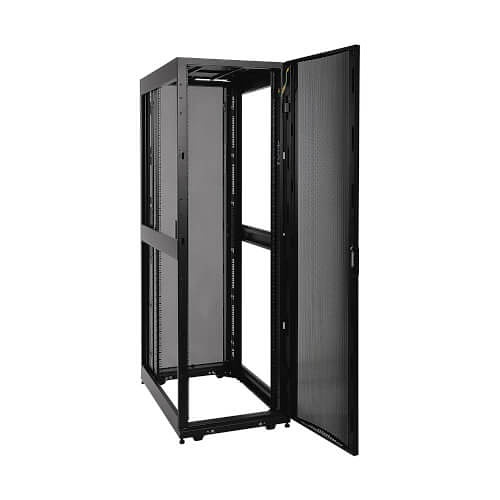

- Locking, reversible, and removable doors

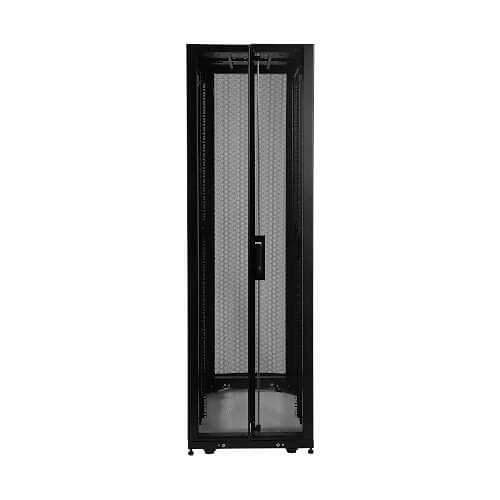

- Split rear door design for easy access

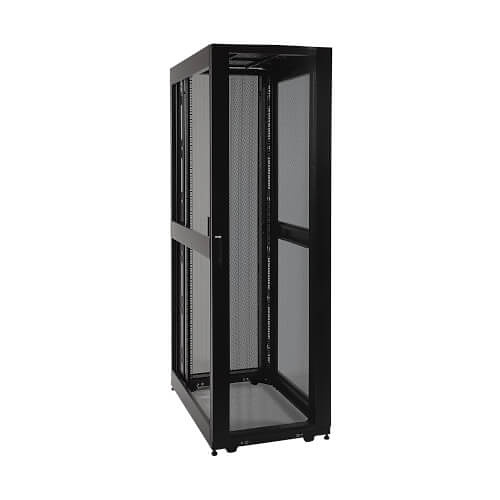

- Locking removable side panels for easy servicing
General Information
Name: Tripp Lite SR42UBSD1032 42U SmartRack Shallow-Depth Rack Enclosure Cabinet, Threaded 10-32 Mounting Holes with Doors and Side Panels
Category: Data Comm & Networking, Racks & Enclosures, Rack Cabinets & Frames
UPC Code: 037332175366
Country of Origin: China. Country of origin is subject to change.
Specifications
-
ADI Part Number TC-SR42UBSD1 Brand Name Eaton Tripp Lite Manufacturer Eaton Manufacturer Part Number SR42UBSD1032 Product Line SmartRack Product Model SR42UBSD1032 Product Name SmartRack SR42UBSD1032 Rack Cabinet Product Type Rack Cabinet Weight 216.05lb
-
Application/Usage Commercial Color Black Depth 32.5" Height 78.5" Material Metal, Steel Maximum Weight Capacity 3000 lb Rack Height 42U Rack Width 19" Width 23.6"
-
Mount Type Freestanding
-
Limited Warranty 5-Year
-
Assembly Required No Country of Origin CN Environmental Certification RoHS Environmentally Friendly Yes Features UL 60950-1 Package Contents - SR42UBSD1032 Rack Enclosure
- (4) Side panels
- (4) Side panel locks
- (2) Door & side panel keys
- Mounting Hardware
- Owner's Manual
