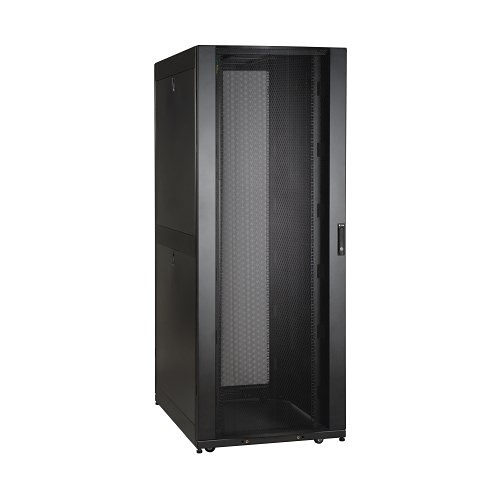

Tripp Lite SR42UBWD SmartRack Wide Standard-Depth Rack Enclosure Cabinet with Doors and Side Panels, 42" (107cm), 3000lb (1360.8kg), 42U

Brand: Tripp Lite by Eaton
ADI #:TC-SR42UBWD Model #: SR42UBWD  Name: Tripp Lite SR42UBWD SmartRack Wide Standard-Depth Rack Enclosure Cabinet with Doors and Side Panels, 42" (107cm), 3000lb (1360.8kg), 42U
  • 42U SmartRack enclosure with doors and side panels
  • 4 interior vertical posts with unthreaded square hole openings
  • 30" (750 mm)Width for optimizing airflow through cabinet
Tripp Lite 42U Rack Enclosure Server Cabinet 29.5" Wide w/ Doors & Sides

Product Overview

A WIDE version of our standard 42U SmartRack. This enclosure is 750mm wide (29.5") compared to the standard 600mm wide (23.6"). This extra width allows for high density equipment installations. It allows cable management and PDU mounting off to the sides of the rack in order to keep these items out of the airflow for proper cooling. All features from the standard SmartRacks carry over to these wide racks to allow cross usage of accessories. Meets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) Compliance.

General Information

Name : Tripp Lite SR42UBWD SmartRack Wide Standard-Depth Rack Enclosure Cabinet with Doors and Side Panels, 42" (107cm), 3000lb (1360.8kg), 42U , Tripp Lite by Eaton
Category : Rack Cabinets & Frames
UPC Code : 037332150639
Country of Origin : China. Country of origin is subject to change.

Specifications

General Information

ADI Part Number : TC-SR42UBWD
Brand Name : Tripp Lite by Eaton
Manufacturer : Tripp Lite by Eaton
Manufacturer Part Number : SR42UBWD
Product Model : SR42UBWD
Product Name : SR42UBWD Rack Enclosure Server Cabinet Wide - 42U - 19"
Product Type : Rack Cabinet

Physical Characteristics

Depth : 43"
Depth (mm) : 1092.2
Dynamic/Rolling Weight Capacity : 2250 lb
Dynamic/Rolling Weight Capacity (g) : 1020582.833
Height : 78.5"
Height (mm) : 1993.9
Rack Height : 42U
Static/Stationary Weight Capacity : 3000 lb
Static/Stationary Weight Capacity (g) : 1360777.11
Width : 29.5"
Width (mm) : 750.062

Warranty

Limited Warranty : 5 Year

Miscellaneous

Environmental Certification : RoHS
Environmentally Friendly : Yes
Features : UL 60950-1
