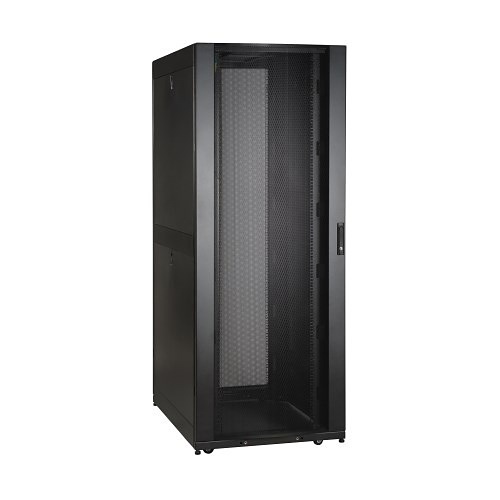

Eaton Tripp Lite SR42UBWDVRT 42U SmartRack Wide Standard-Depth Rack Enclosure Cabinet with 2 Pre-Installed SRCABLEVRT3, Sides and doors
SR42UBWDVRT
|TC-SR42UBWDV
Shop All Eaton Tripp Lite
Eaton Tripp Lite SR42UBWDVRT 42U SmartRack Wide Standard-Depth Rack Enclosure Cabinet with 2 Pre-Installed SRCABLEVRT3, Sides and doors
SR42UBWDVRT | TC-SR42UBWDV
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
SR42UBWDVRT Is a wider version of the standard 42U SmartRack enclosure (750mm wide compared to the standard 600mm wide) and includes two pre-installed SRCABLEVRT3 6' (1.8m) vertical cable managers. SRCABLEVRT3 Helps eliminate cable stress by organizing the cables within the enclosure. The vertical cable managers are 6 feet high and 3" wide. The SR42UBWDVRT houses 3,500 lb (1588 kg) of standard 19" rack equipment in 42U. Its front and rear pairs of vertical rails have square mounting holes that are adjustable in quarter-inches increments from 4 to 37". Adjustment is quick and an easy-view depth index ensures consistent rail placement without requiring time-consuming measurements. Each rack space within the enclosure is numbered for ready reference. With its locking, reversible, removable front and rear doors and locking, removable side panels, the SR42UBWDVRT provides ultimate equipment safety. The side panels are half-size for ease of removal and re-installation. The split rear door design allows the enclosure to be placed closer to a wall. The SR42UBWDVRT meets all requirements toward PCI DSS compliance. The top panel of the SR42UBWDVRT is vented to help remove warm air from the enclosure and draw in cool air by convection. The top panel includes ports for cable routing and can be quickly removed without tools. All components of the SR42UBWDVRT are grounded to the enclosure frame. Front and rear threaded grounding points are provided for connection to the facility earth ground. The removable front and rear doors feature quick-release ground wires. To simplify deployment, the SR42UBWDVRT comes with preinstalled casters that enable it to be easily maneuvered into the desired location, where it can be secured by adjusting the preinstalled levelers. Note: The casters are intended for minor position adjustments and are not designed for moving enclosures over long distances.
Specifications
ADI Part Number TC-SR42UBWDV Brand Name Eaton Tripp Lite Manufacturer Tripp Lite Manufacturer Part Number SR42UBWDVRT Product Line SmartRack Product Model SR42UBWDVRT Product Name SmartRack SR42UBWDVRT Rack Cabinet Product Type Rack Cabinet
Application/Usage Commercial
Depth 43" Maximum Weight Capacity 795.38 lb Rack Height 42U Width 30"
Limited Warranty 5-Year
Assembly Required No Country of Origin CN Environmental Certification RoHS Environmentally Friendly Yes Package Contents - SR42UBWDVRT Rack Enclosure
- (4) side panels
- (4) side panel locks
- (2) door & side panel keys
- (50) M6 screws
- (50) M6 washers
- (50) M6 cage nuts
- Owner's Manual
