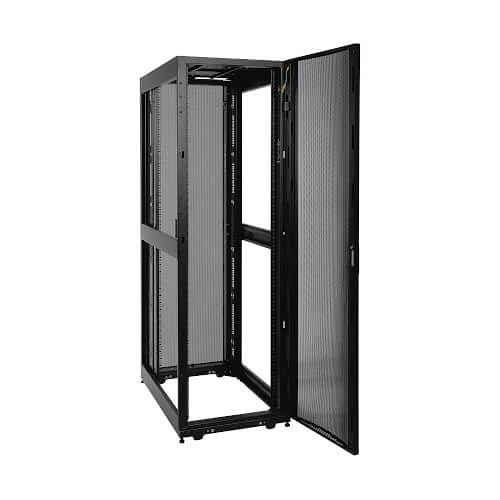

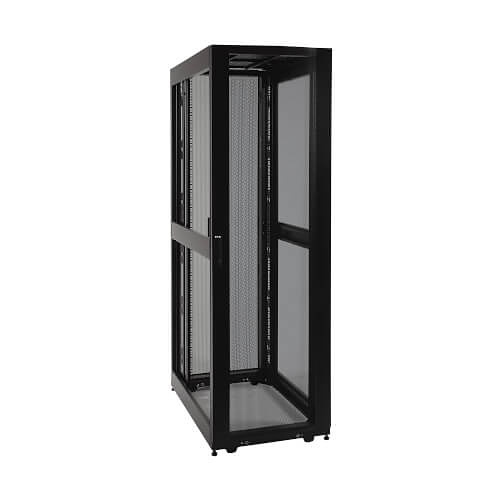

The SR45UBMD is part of our new line of mid-depth rack enclosures. It features a massive front-to rear-ventilation capacity that meets or exceeds server manufacturer requirements. Its integrated baying tabs make it easy to combine multiple enclosures in rows for data center applications. This enclosure is also compatible with hot-aisle/cold-aisle configurations. The SR45UBMD houses 3000 lb of standard 19-inch rack equipment in 45U. Its front and rear pairs of vertical rails have square mounting holes that are adjustable in quarter-inch increments from 4 to 31 inches. Adjustment is quick and an easy-view depth index ensures consistent rail placement without requiring time-consuming measurements. Each rack space within the enclosure is numbered for ready reference.Two of the adjustable vertical mounting rails support toolless button-mount 0U installation of up to four compatible PDUs and cable managers. This feature makes it easier to route cabling to rack equipment and reduces cord clutter. With its locking, reversible, removable front and rear doors, and locking, removable side panels, the SR45UBMD provides ultimate equipment safety. The side panels are half size for ease of removal and reinstallation. The split rear door design allows the enclosure to be placed closer to a wall. The SR45UBMD meets all requirements toward PCI DSS compliance. The top panel of the SR45UBMD is vented to help remove warm air from the enclosure and draw in cool air by convection. The top panel includes ports for cable routing, and can be quickly removed without tools. To facilitate cable access, the SR45UBMD is open-bottom.

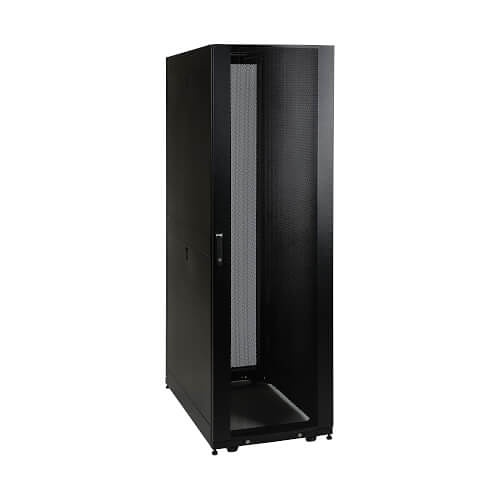

Name : Tripp Lite SR45UBMD SmartRack Mid-Depth Rack Enclosure Cabinet with Doors and Side Panels, 36" (91cm), 3000lb (1360.8kg), 45U , Tripp Lite by Eaton
Category : Rack Cabinets & Frames
UPC Code : 037332174475
Country of Origin : China. Country of origin is subject to change.
ADI Part Number : TC-SR45UBMD
Brand Name : Tripp Lite
Manufacturer : Tripp Lite by Eaton
Manufacturer Part Number : SR45UBMD
Product Line : SmartRack
Product Model : SR45UBMD
Product Name : 45U Mid-Depth SmartRack Premium Enclosure (Includes Doors and Side Panels)
Product Type : Rack Cabinet
Weight (Approximate) (g) : 129000
Depth : 36"
Depth (mm) : 914.4
Dynamic/Rolling Weight Capacity : 2250 lb
Dynamic/Rolling Weight Capacity (g) : 1020582.833
Height : 83.8"
Height (mm) : 2127.25
Product Color : Black
Rack Height : 45U
Rack Width : 19"
Rack Width (mm) : 482.6
Static/Stationary Weight Capacity : 3000 lb
Static/Stationary Weight Capacity (g) : 1360777.11
Weight (Approximate) : 284.40 lb
Width : 23.6"
Width (mm) : 600.202
Limited Warranty : 5 Year
Country of Origin : China
Environmental Certification : RoHS
Environmentally Friendly : Yes
