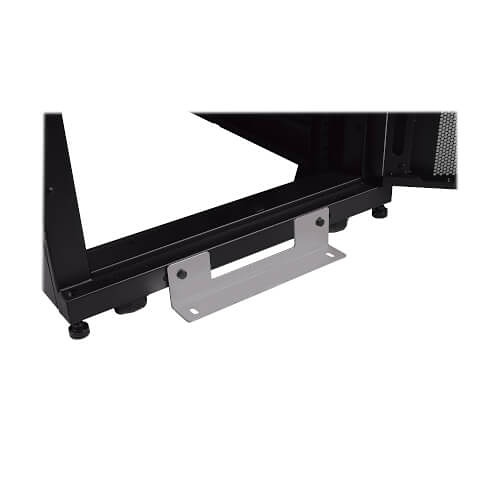

  • Integrated baying tabs for easy row combination
Key Features
What's Included
  • 48U SmartRack with 750mm wide design for high-density installations
  • Massive front-to-rear ventilation for optimal cooling
  • Integrated baying tabs for easy row combination

Sign In for Dealer Pricing

Become an ADI Customer
Speco
Key Features
What's Included
  • 48U SmartRack with 750mm wide design for high-density installations
  • Massive front-to-rear ventilation for optimal cooling
  • Integrated baying tabs for easy row combination
Eaton Tripp Lite

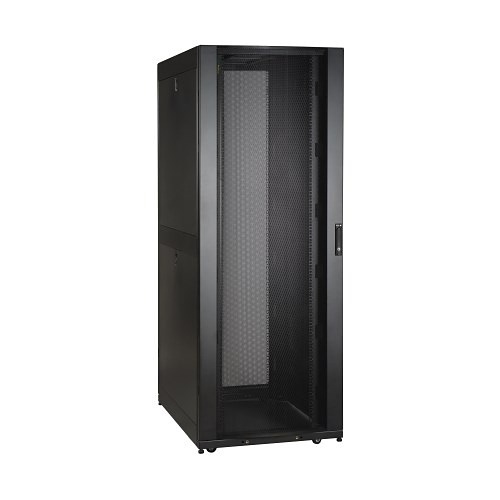

Eaton Tripp Lite SR48UBWD 48U SmartRack Wide Standard-Depth Rack Enclosure Cabinet with Doors

SR48UBWD | TC-SR48UBWD

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

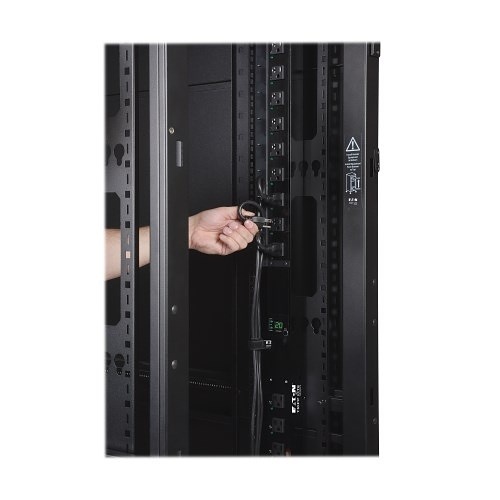

The SR48UBWD is a wider version of the standard 48U SmartRack cabinet. This enclosure is 750mm wide (30") compared to the standard 600mm wide. This extra width allows for high-density equipment installations. It allows cable management and PDU mounting off to the sides of the rack in order to keep these items out of the airflow for proper cooling. The SR48UBWD features a massive front-to-rear ventilation capacity that meets or exceeds server manufacturer requirements. Its integrated baying tabs make it easy to combine multiple enclosures in rows for data center applications. This enclosure is also compatible with hot-aisle / cold-aisle configurations. The SR48UBWD houses 3,500 lb (1588 kg) of standard 19" rack equipment in 48U. Its front and rear pairs of vertical rails have square mounting holes that are adjustable in quarter-inches increments from 4 to 37". Adjustment is quick and an easy-view depth index ensures consistent rail placement without requiring time-consuming measurements. Each rack space within the enclosure is numbered for ready reference. Two of the adjustable vertical mounting rails support toolless button-mount 0U installation of up to four compatible PDUs and cable managers. This feature makes it easier to route cabling to rack equipment and reduces cord clutter. With its locking, reversible, removable front and rear doors and locking, removable side panels, the SR48UBWD provides ultimate equipment safety. The side panels are half-size for ease of removal and reinstallation. The split rear door design allows the enclosure to be placed closer to a wall. The SR48UBWD meets all requirements toward PCI DSS compliance. The top panel of the SR48UBWD is vented to help remove warm air from the enclosure and draw in cool air by convection. The top panel includes ports for cable routing and can be quickly removed without tools. To facilitate cable access, the SR45UBWD is open-bottom. All components of the SR48UBWD are grounded to the enclosure frame. Front and rear threaded grounding points are provided for connection to the facility earth ground. The removable front and rear doors feature quick-release ground wires. To simplify deployment, the SR48UBWD comes with preinstalled casters that enable it to be easily maneuvered into the desired location, where it can be secured by adjusting the preinstalled levelers. Note: The casters are intended for minor position adjustments and are not designed for moving the enclosure over long distances.

Main Features

  • 48U SmartRack with 750mm wide design for high-density installations
  • Massive front-to-rear ventilation for optimal cooling
  • Integrated baying tabs for easy row combination
  • Supports up to 3000 lb of standard 19-inch rack equipment
  • Adjustable vertical rails with square mounting holes
  • Toolless 0U installation for PDUs and cable managers
  • Locking, reversible, removable doors and side panels
  • Split rear door design for wall proximity
  • Vented top panel with cable routing ports
  • Grounded components with quick-release ground wires

General Information

Name: Eaton Tripp Lite SR48UBWD 48U SmartRack Wide Standard-Depth Rack Enclosure Cabinet with Doors
Category: Data Comm & Networking, Racks & Enclosures, Rack Cabinets & Frames
UPC Code: 037332156815
Country of Origin: China. Country of origin is subject to change.
