Tripp Lite SR4POST48HD 48U Heavy-Duty 4-Post SmartRack Open Frame Network Rack Equipment
SR4POST48HD|TC-SR4POST48
Tripp Lite SR4POST48HD 48U Heavy-Duty 4-Post SmartRack Open Frame Network Rack Equipment
SR4POST48HD|TC-SR4POST48
Key Features
What's Included
- 48U Heavy-Duty 4-Post SmartRack
- 3000 lb. weight capacity
- Supports depths up to 35"
Key Features
What's Included
- 48U Heavy-Duty 4-Post SmartRack
- 3000 lb. weight capacity
- Supports depths up to 35"
Key Features
What's Included
- 48U Heavy-Duty 4-Post SmartRack
- 3000 lb. weight capacity
- Supports depths up to 35"
Eaton Tripp Lite
Tripp Lite SR4POST48HD 48U Heavy-Duty 4-Post SmartRack Open Frame Network Rack Equipment
SR4POST48HD | TC-SR4POST48
Please sign in to view pricing and availability and to add to cart.
Accessories
Keystone Jacks
ADI # 0E-C6KEYBL10
MODEL # 0E-C6KEYBL10
0E-C6KEYBL10|0E-C6KEYBL10
Sign In for Dealer Pricing
Rack Bases, Doors & Panels
ADI # TC-SR1UPANEL
MODEL # SR1UPANEL10
SR1UPANEL10|TC-SR1UPANEL
Sign In for Dealer Pricing
Rack Accessories
ADI # TC-SRBOLTDWN
MODEL # SRBOLTDOWN
SRBOLTDOWN|TC-SRBOLTDWN
Sign In for Dealer Pricing
Cable Ducts
ADI # TC-SRCABDCT1
MODEL # SRCABLEDUCT1U
SRCABLEDUCT1U|TC-SRCABDCT1
Sign In for Dealer Pricing
Cable Managers
ADI # TC-SRCABL1U
MODEL # SRCABLERING1U
SRCABLERING1U|TC-SRCABL1U
Sign In for Dealer Pricing
Cable Managers
ADI # TC-SRCABL2U
MODEL # SRCABLERING2U
SRCABLERING2U|TC-SRCABL2U
Sign In for Dealer Pricing
Rack Accessories
ADI # TC-SRCAGEN5M
MODEL # SRCAGENUT5MM
SRCAGENUT5MM|TC-SRCAGEN5M
Sign In for Dealer Pricing
Rack Accessories
ADI # TC-SRCAGENUT
MODEL # SRCAGENUTS
SRCAGENUTS|TC-SRCAGENUT
Sign In for Dealer Pricing
Overview
Specifications
Documents

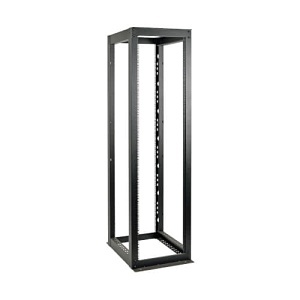

Product Overview
This 48U Heavy-Duty 4-Post Open Frame Rack helps IT managers organize their equipment array and provides fast, easy access to installed IT equipment. The SR4POST48HD is a simple solution for housing IT equipment in secure environments and other areas that don't require a lockable rack solution. This 48U rack features heavy-duty cold-rolled steel construction with a black powder-coated finish for durability. It supports stationary loads up to 3,000 lb (1360.8 kg). The SR4POST48HD comes with all the hardware required for assembly and has a self-squaring design with bolt-down provisions. For high-density applications, multiple units can be bolted together side by side. The open design of the SR4POST48HD provides unobstructed airflow and easy access to equipment and cabling. It has numbered, square-hole mounting positions for easy installation of standard 19" rack equipment. The SR4POST48HD supports equipment depths up to 35". This rack also accommodates toolless button-hole mounting for vertical PDUs and cable managers. The optional SRCASTERHDKIT Heavy-Duty Rolling Caster Kit (sold separately) adds mobility to the SR4POST48HD. The SR4POST48HD also supports optional side panels with the SR48SIDE4PHD, a set of two half-size side panels that add a finished look to end-of-row racks in your data center.
Main Features
- 48U Heavy-Duty 4-Post SmartRack
- 3000 lb. weight capacity
- Supports depths up to 35"
- Textured black powder coat finish
- Cold-rolled steel construction

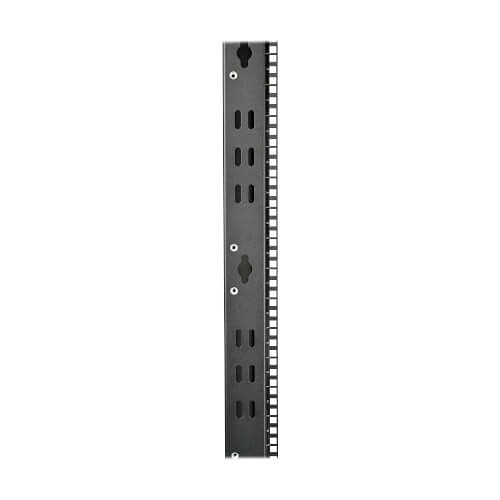

- Numbered mounting positions
- Bolt down provisions
- Self-squaring design
- Easy assembly
- Optional caster kit for mobility
General Information
Name: Tripp Lite SR4POST48HD 48U Heavy-Duty 4-Post SmartRack Open Frame Network Rack Equipment
Category: Data Comm & Networking, Racks & Enclosures, Rack Cabinets & Frames
UPC Code: 037332185778
Country of Origin: China. Country of origin is subject to change.
Specifications
-
ADI Part Number TC-SR4POST48 Brand Name Eaton Tripp Lite Manufacturer Eaton Manufacturer Part Number SR4POST48HD Product Line SmartRack Product Model SR4POST48HD Product Name SR4POST48HD Heavy-Duty 4-Post Open Frame Rack Product Type Rack Frame Weight 109.13lb
-
Color Black Depth 35.3" Height 90" Material CRS Maximum Weight Capacity 3000 lb Rack Depth 35.25" Rack Height 48U Rack Width 19" Width 24"
-
Limited Warranty 5-Year
-
Assembly Required Yes Country of Origin CN Environmental Certification RoHS Environmentally Friendly Yes Features Cable Management, Casters, Removable Side Panel Package Contents - SR4POST48HD Heavy-Duty 4-Post Open Frame Rack
- Installation hardware
- (2x) PDU/Cable management brackets
- Owner's manual with warranty information
