Tripp Lite SRGROUND25 SmartRack Copper Bus Grounding Bar for 24U and 25U Racks

Brand: Tripp Lite by Eaton
ADI #:TC-SRGROUND2 Model #: SRGROUND25  Name: Tripp Lite SRGROUND25 SmartRack Copper Bus Grounding Bar for 24U and 25U Racks
  • Copper grounding bar provides ground contact for your rack-mount equipment
  • Installs in your 24U or 25U enclosure or open frame rack with included hardware
  • Reco mmended for large data centers that have ground-sensitive equipment
Image of TC-SRGROUND2

Product Overview

Provides Convenient Ground Contact for Your Rack-Mounted Equipment

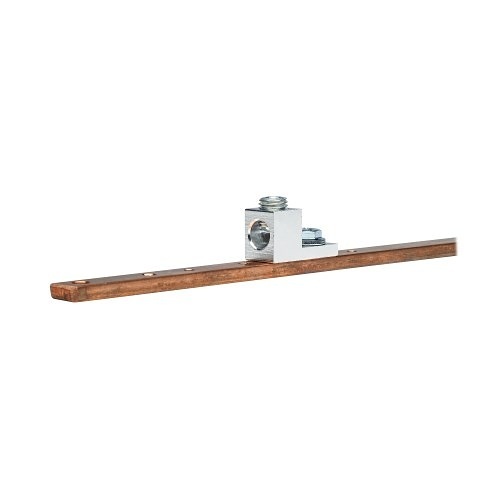

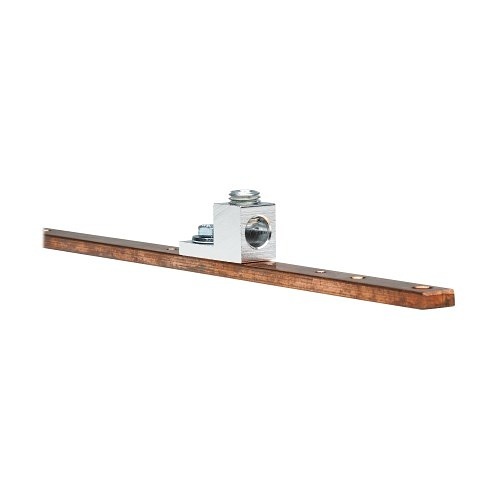

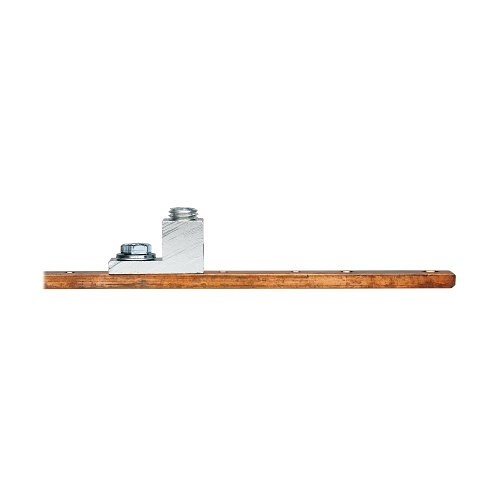

This SmartRack® grounding bar is a thin strip of heavy-gauge solid copper that attaches to any EIA-standard 24U or 25U rack enclosure or open frame rack. Every other U space has a drilled and tapped hole to allow a ground wire jumper to be installed, providing convenient ground contact for standard rack equipment. The jumper then bridges to individual rack components, with grounding straps, allowing a direct path to ground, rather than going through surrounding equipment.

Easy to Install with All Hardware Included
You can mount the SRGROUND25 in any EIA-standard 24U or 25U rack enclosure or open frame rack. Either screw it into a rack enclosure using the included mounting hardware, or install it in an open frame rack with the included toolless mounting buttons. This copper grounding bar is ideal for large data centers that contain ground-sensitive equipment.

Typical Applications
Provides convenient ground contact for standard rack-mount equipment in a 24U or 25U rack

General Information

Name : Tripp Lite SRGROUND25 SmartRack Copper Bus Grounding Bar for 24U and 25U Racks , Tripp Lite by Eaton
Category : Cable Lacing Bars
UPC Code :

Specifications

General Information

ADI Part Number : TC-SRGROUND2
Brand Name : Tripp Lite
Manufacturer : Tripp Lite by Eaton
Manufacturer Part Number : SRGROUND25
Packaged Quantity : 1
Product Name : Copper Bus Grounding Bar for 24U and 25U Racks
Product Type : Grounding Bar
Weight (Approximate) (g) : 1360

Physical Characteristics

Depth : 0.3"
Depth (mm) : 6.35
Height : 45.2"
Height (mm) : 1148.08
Weight (Approximate) : 3 lb
Width : 0.6"
Width (mm) : 15.88

Warranty

Limited Warranty : 5 Year

Miscellaneous

Environmentally Friendly : Yes
Package Contents : <ul><li>Copper Bus Grounding Bar for 24U and 25U Racks</li><li>2 x Mounting Buttons</li><li>13 x Grounding Straps</li><li>2 x M4 Self-tapping Screws</li><li>13 x M4 Screws</li><li>13 x Washers</li><li>2 x Cage Nuts</li><li>and more below</li></ul>, 2 x M6 x 12 Screws, Owner'S Manual
