Tripp Lite SRN3RG6US SmartRack Industrial Enclosure, Wall Mount, Locking, Hinged Back, Fan with Thermal Switch, 28" Depth, 6U, NEMA 3R, Metal, Gray
SRN3RG6US|TC-SRN3RG6US
Tripp Lite SRN3RG6US SmartRack Industrial Enclosure, Wall Mount, Locking, Hinged Back, Fan with Thermal Switch, 28" Depth, 6U, NEMA 3R, Metal, Gray
SRN3RG6US|TC-SRN3RG6US
Key Features
What's Included
- NEMA 3R Rated for protection against harsh elements
- Wall-mount design saves space
- Houses 6U of 19" rack equipment
Key Features
What's Included
- NEMA 3R Rated for protection against harsh elements
- Wall-mount design saves space
- Houses 6U of 19" rack equipment
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
What's Included
- NEMA 3R Rated for protection against harsh elements
- Wall-mount design saves space
- Houses 6U of 19" rack equipment
Eaton Tripp Lite
Tripp Lite SRN3RG6US SmartRack Industrial Enclosure, Wall Mount, Locking, Hinged Back, Fan with Thermal Switch, 28" Depth, 6U, NEMA 3R, Metal, Gray
SRN3RG6US | TC-SRN3RG6US
Please sign in to view pricing and availability and to add to cart.
Accessories
Structured Wiring Enclosures
ADI # TC-SRGP4PLAS
MODEL # SRGP4PLASTIC
SRGP4PLASTIC|TC-SRGP4PLAS
Sign In for Dealer Pricing
Structured Wiring Enclosures
ADI # TC-SRGP2KO
MODEL # SRGP2KO
SRGP2KO|TC-SRGP2KO
Sign In for Dealer Pricing
Structured Wiring Enclosures
ADI # TC-SRGP3RM
MODEL # SRGP3RM
SRGP3RM|TC-SRGP3RM
Sign In for Dealer Pricing
Structured Wiring Enclosures
ADI # TC-SRGP1KO
MODEL # SRGP1KO
SRGP1KO|TC-SRGP1KO
Sign In for Dealer Pricing
Overview
Specifications
Documents
Product Overview
Locking metal enclosure protects your rack-mount equipment against theft, damage, tampering, and excess moisture and debris.
Features | Space-Saving Wall-Mount Enclosure Houses Rack Equipment up to 28 in. Deep

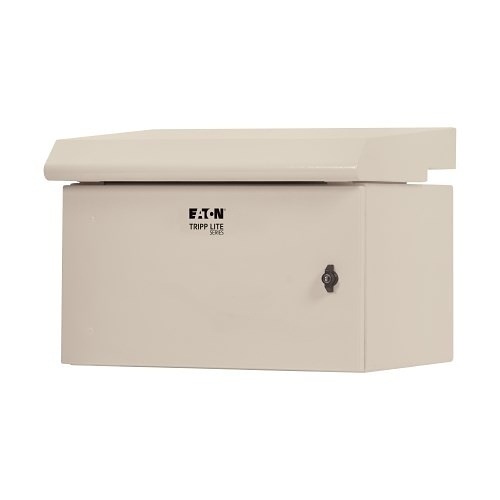

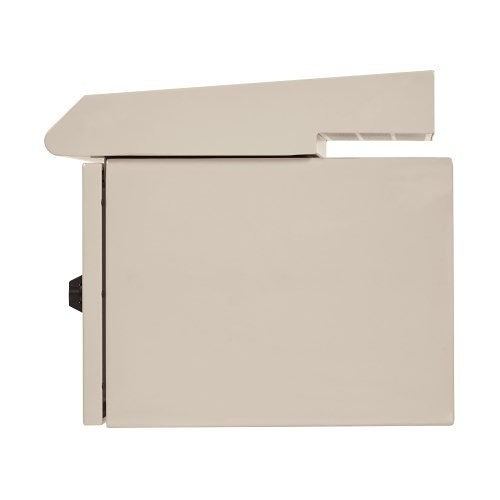

This SmartRack® industrial enclosure is designed to house 6U of 19-inch rack-mount equipment, such as network switches and patch panels. Constructed from steel with a durable gray powder-coated finish, the SRN3RG6US has a maximum load capacity of 200 pounds (90.7 kilograms) and is suitable for indoor and outdoor applications.
NEMA 3R Enclosure Designed for Protection Against Harsh Elements
The SRN3RG6US protects its contents against the ingress of water (including rain, sleet and snow), solid foreign objects (including falling dirt) and even ice forming on the outside of the enclosure. It is ideal for a multitude of industrial sites, such as factories, construction areas, utility plants, power stations, transportation terminals, distribution hubs, warehouses and other areas where you need to keep sensitive equipment secure, organized and out of the way.
Locks and Hinged Back Allow Easy Authorized Access to Equipment and Cabling

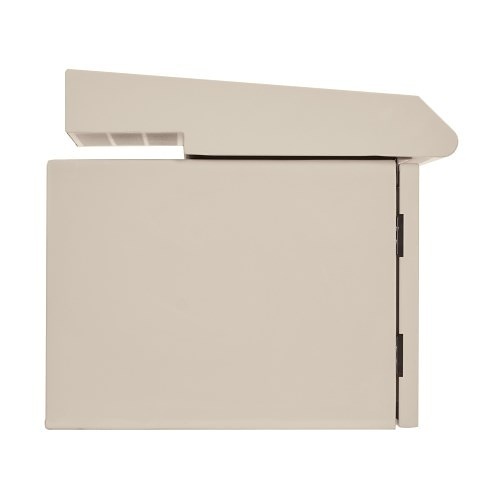

The fully welded steel housing locks securely with the included keys to protect its contents against theft, tampering and unauthorized access. The enclosure swings away from the wall on a sturdy hinge, allowing easy back-door access to equipment and cabling during installation and maintenance. Data and power cables may be routed through a bottom conduit cutout.
Easy Enclosure and Equipment Installation
This 6U industrial enclosure comes fully assembled and ready to mount to the wall with user-supplied hardware. Front and rear mounting rails adjust independently to accommodate equipment up to 28 inches deep. Hardware for mounting equipment inside the enclosure is included. Built-in fans help keep mounted equipment cool and lasting longer.
Features | Space-Saving Wall-Mount Enclosure Houses Rack Equipment up to 28 in. Deep
This SmartRack® industrial enclosure is designed to house 6U of 19-inch rack-mount equipment, such as network switches and patch panels. Constructed from steel with a durable gray powder-coated finish, the SRN3RG6US has a maximum load capacity of 200 pounds (90.7 kilograms) and is suitable for indoor and outdoor applications.
NEMA 3R Enclosure Designed for Protection Against Harsh Elements
The SRN3RG6US protects its contents against the ingress of water (including rain, sleet and snow), solid foreign objects (including falling dirt) and even ice forming on the outside of the enclosure. It is ideal for a multitude of industrial sites, such as factories, construction areas, utility plants, power stations, transportation terminals, distribution hubs, warehouses and other areas where you need to keep sensitive equipment secure, organized and out of the way.
Locks and Hinged Back Allow Easy Authorized Access to Equipment and Cabling
The fully welded steel housing locks securely with the included keys to protect its contents against theft, tampering and unauthorized access. The enclosure swings away from the wall on a sturdy hinge, allowing easy back-door access to equipment and cabling during installation and maintenance. Data and power cables may be routed through a bottom conduit cutout.
Easy Enclosure and Equipment Installation
This 6U industrial enclosure comes fully assembled and ready to mount to the wall with user-supplied hardware. Front and rear mounting rails adjust independently to accommodate equipment up to 28 inches deep. Hardware for mounting equipment inside the enclosure is included. Built-in fans help keep mounted equipment cool and lasting longer.
Main Features
- NEMA 3R Rated for protection against harsh elements
- Wall-mount design saves space
- Houses 6U of 19" rack equipment
- Durable steel with gray powder-coated finish
- 200 lb Maximum load capacity
- Locks and hinged back for secure access
- Built-in fans with thermal switch for cooling
- Adjustable mounting rails for 28" depth
- Ideal for indoor and outdoor use
- Easy installation with included hardware
General Information
Name: Tripp Lite SRN3RG6US SmartRack Industrial Enclosure, Wall Mount, Locking, Hinged Back, Fan with Thermal Switch, 28" Depth, 6U, NEMA 3R, Metal, Gray
Category: Data Comm & Networking, Racks & Enclosures, Structured Wiring Enclosures
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
-
ADI Part Number TC-SRN3RG6US Brand Name Eaton Tripp Lite Manufacturer Eaton Manufacturer Part Number SRN3RG6US Product Line SmartRack Product Model SRN3RG6US Product Name SRN3RG6US Industrial Enclosure Product Type Rack Mount Enclosure Weight 116.20lb
-
Application/Usage Computer, DVR, LAN Switch, Patch Panel, PDU, Server, UPS Color Gray Depth 32.1" Form Factor Wall Mount Height 18" Material Metal, Powder Coated Steel Width 25.2"
-
Limited Warranty 5-Year
-
Country of Origin CN Environmental Certification REACH, RoHS Environmentally Friendly Yes Features Adjustable Mounting Rails, Anti-theft, Cable Management, Lockable Door Package Contents - SRN3RG6US Industrial Enclosure
- (24) 10-32 screws
- (24) M6 washers
- (4) LDPE sheet metal plugs
- (4) M10 foam washers
- (2) Keys
- Owner's manual
