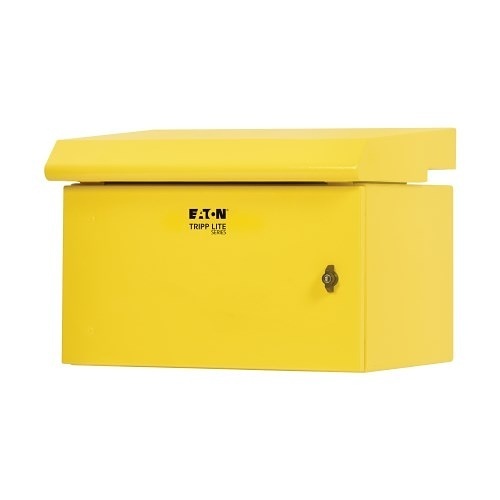

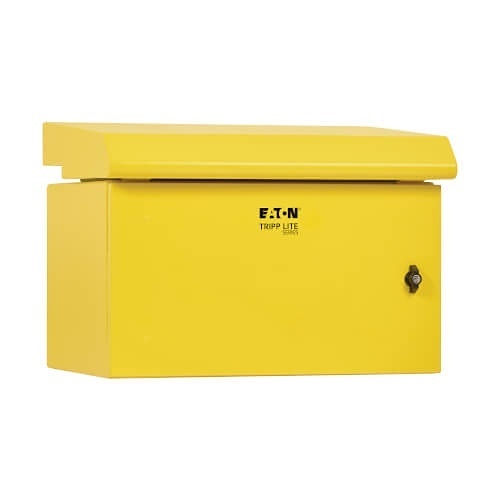

Eaton Tripp Lite SRN3RY6U SmartRack Industrial Enclosure, Fan with Thermal Switch, Wall Mount, NEMA 3R, 16.5" Depth, 6U, Metal, Yellow
Eaton Tripp Lite SRN3RY6U SmartRack Industrial Enclosure, Fan with Thermal Switch, Wall Mount, NEMA 3R, 16.5" Depth, 6U, Metal, Yellow
- NEMA 3R Rated for protection against harsh elements
- Space-saving wall-mount design
- Houses up to 6U of 19" rack equipment
- NEMA 3R Rated for protection against harsh elements
- Space-saving wall-mount design
- Houses up to 6U of 19" rack equipment
Sign In for Dealer Pricing
Become an ADI Customer- NEMA 3R Rated for protection against harsh elements
- Space-saving wall-mount design
- Houses up to 6U of 19" rack equipment

Eaton Tripp Lite SRN3RY6U SmartRack Industrial Enclosure, Fan with Thermal Switch, Wall Mount, NEMA 3R, 16.5" Depth, 6U, Metal, Yellow
SRN3RY6U | TC-SRN3RY6U
Please sign in to view pricing and availability and to add to cart.
Accessories
Product Overview
Space-Saving Wall-Mount Enclosure Houses Rack Equipment up to 16.5 in. Deep
This SmartRack® industrial enclosure is designed to house 6U of 19-inch rack-mount equipment, such as network switches and patch panels. Constructed from steel with a durable yellow powder-coated finish, the SRN3RY6U has a maximum load capacity of 200 pounds (90.7 kilograms) and is suitable for indoor and outdoor applications, especially security, fire, law enforcement and other first-responder applications.
NEMA 3R Enclosure Designed for Protection Against Harsh Elements
The SRN3RY6U protects its contents against the ingress of water (including rain, sleet and snow), solid foreign objects (including falling dirt) and even ice forming on the outside of the enclosure. It is ideal for a multitude of industrial sites, such as factories, construction areas, utility plants, power stations, transportation terminals, distribution hubs, warehouses and other areas where you need to keep sensitive equipment secure, organized and out of the way.
Locks Securely to Help Prevent Theft, Damage and Tampering
The fully welded steel housing locks securely with the included keys to protect its contents against theft, tampering and unauthorized access. The weather-sealed door allows easy access to equipment and cabling during installation and maintenance. Data and power cables may be routed through a bottom conduit cutout.
Easy Enclosure and Equipment Installation
This 6U industrial enclosure comes fully assembled and ready to mount to the wall with user-supplied hardware. Front and rear mounting rails adjust independently to accommodate equipment up to 16.5 inches deep. Hardware for mounting equipment inside the enclosure is included. Built-in fans help keep mounted equipment cool and lasting longer.
Main Features
- NEMA 3R Rated for protection against harsh elements
- Space-saving wall-mount design
- Houses up to 6U of 19" rack equipment
- Durable yellow powder-coated steel construction
- Supports up to 200 lb (90.7 kg)
- Locks securely to prevent theft and tampering
- Weather-sealed door for easy access
- Adjustable front and rear mounting rails
- Includes built-in fans with thermal switch
- Ideal for indoor and outdoor industrial use
General Information
Specifications
-
ADI Part Number TC-SRN3RY6U Brand Name Eaton Tripp Lite Manufacturer Eaton Manufacturer Part Number SRN3RY6U Product Line SmartRack Product Model SRN3RY6U Product Name SRN3RY6U Industrial Enclosure Product Type Rack Mount Enclosure Weight 73.53lb
-
Application/Usage Computer, DVR, LAN Switch, Patch Panel, PDU, Server, UPS Color Yellow Depth 20.8" Form Factor Wall Mount Height 18" Material Metal, Powder Coated Steel Width 25.2"
-
Limited Warranty 5-Year
-
Country of Origin CN Environmental Certification REACH, RoHS Environmentally Friendly Yes Features Adjustable Mounting Rails, Anti-theft, Cable Management, Lockable Door Indoor/Outdoor Indoor, Outdoor Package Contents - SRN3RY6U Industrial Enclosure
- (24) 10-32 screws
- (24) M6 washers
- (4) LDPE sheet metal plugs
- (4) M10 foam washers
- (2) Keys
- Owner's manual
