Tripp Lite SRQP42UB SmartRack 42U Standard-Depth Quiet Server Rack Enclosure Cabinet with Sound Suppression
SRQP42UB|TC-SRQP42UB
Tripp Lite SRQP42UB SmartRack 42U Standard-Depth Quiet Server Rack Enclosure Cabinet with Sound Suppression
SRQP42UB|TC-SRQP42UB
Key Features
What's Included
- 42U quiet server rack for EIA-standard 19-inch equipment
- Heavy-duty steel with black powder-coated finish
- 2400 lb. stationary load capacity; 2000 lb. rolling load capacity
Key Features
What's Included
- 42U quiet server rack for EIA-standard 19-inch equipment
- Heavy-duty steel with black powder-coated finish
- 2400 lb. stationary load capacity; 2000 lb. rolling load capacity
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
What's Included
- 42U quiet server rack for EIA-standard 19-inch equipment
- Heavy-duty steel with black powder-coated finish
- 2400 lb. stationary load capacity; 2000 lb. rolling load capacity

Eaton Tripp Lite
Tripp Lite SRQP42UB SmartRack 42U Standard-Depth Quiet Server Rack Enclosure Cabinet with Sound Suppression
SRQP42UB | TC-SRQP42UB
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

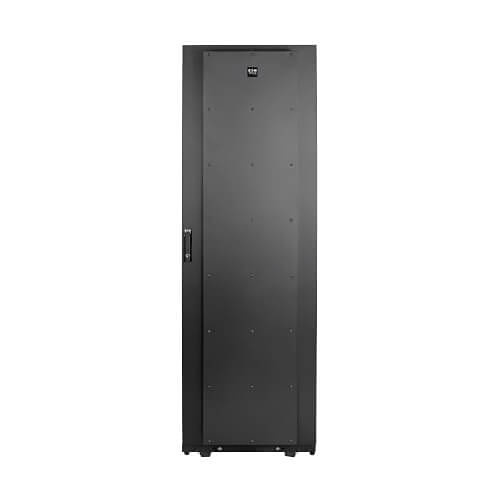

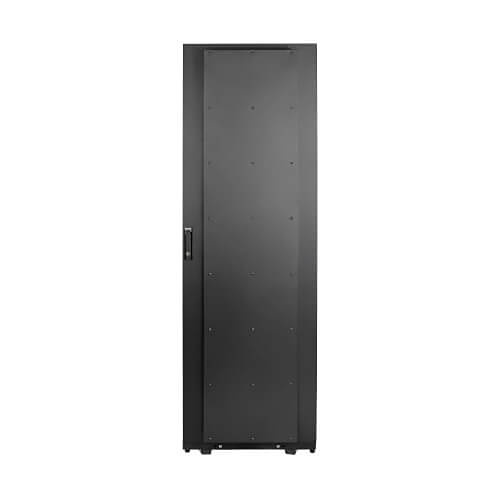

The SRQP42UB SmartRack 42U Quiet Server Rack Enclosure Cabinet is ideal for storing EIA-standard 19" rack equipment in offices, recording studios, retail applications and other areas where you need equipment to be secure, organized and quiet. Constructed from heavy-duty steel with a durable black powder-coated finish, the SRQP42UB has a maximum stationary load capacity of 2400 lbs (1088.6 kgs). This quiet server cabinet is specifically designed to muffle noisy network equipment. Special foam sound-dampening panels are built into the reversible front and rear doors, removable side panels, removable top panel and bottom panel to reduce acoustic levels, by up to 20 decibels, and keep noise to a minimum. The doors and side panels lock securely to help prevent damage, tampering or theft. A unique passive airflow design maximizes cooling by drawing in cool air through the front door's intake, passing it horizontally through the enclosure, and pushing warm air out through the rear door. Convenient top and bottom cable brush strips allow easy cable routing through the cabinet while keeping dust and debris out. The SRQP42UB comes fully assembled and ready to deploy with pre-installed casters that let you easily maneuver it through standard doorways into proper position, where it can be secured by adjusting the removable levelers. Square mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 1/4" increments to accommodate equipment up to 37" deep.
Main Features
- 42U quiet server rack for EIA-standard 19-inch equipment
- Heavy-duty steel with black powder-coated finish
- 2400 lb. stationary load capacity; 2000 lb. rolling load capacity
- Sound-dampening panels reduce noise by up to 20 decibels
- Lockable doors and panels for security against tampering
- Unique airflow design for efficient cooling
- Cable brush strips for easy routing and dust prevention
- Pre-installed casters and levelers for easy maneuverability
- Adjustable vertical rails for equipment up to 37 inches deep
- Ships fully assembled for quick deployment
General Information
Name: Tripp Lite SRQP42UB SmartRack 42U Standard-Depth Quiet Server Rack Enclosure Cabinet with Sound Suppression
Category: Data Comm & Networking, Racks & Enclosures, Rack Cabinets & Frames
UPC Code: 037332204059
Country of Origin: China. Country of origin is subject to change.
Specifications
-
ADI Part Number TC-SRQP42UB Brand Name Eaton Tripp Lite Manufacturer Tripp Lite Manufacturer Part Number SRQP42UB Product Line SmartRack Product Model SRQP42UB Product Name SRQP42UB SmartRack 42U Quiet Server Rack Enclosure Cabinet Product Type Rack Cabinet
-
Application/Usage Server Color Black Depth 56" Form Factor Floor Standing Material Steel Maximum Weight Capacity 195.37 lb Rack Depth 28" Rack Height 42U Width 24"
-
Limited Warranty 5-Year
-
Assembly Required No Country of Origin CN Environmental Certification RoHS Environmentally Friendly Yes Package Contents - SRQP42UB SmartRack 42U Quiet Server Rack Enclosure Cabinet
- (50) M6 screws
- (50) M6 cage nuts
- (50) M6 washers
- (2) Keys
- Owner’s manual
