Eaton Tripp Lite SRW10US SmartRack 10U Low-Profile Switch-Depth Wall-Mount Small Rack Enclosure, Hinged Back
SRW10US|TC-SRW10US
Eaton Tripp Lite SRW10US SmartRack 10U Low-Profile Switch-Depth Wall-Mount Small Rack Enclosure, Hinged Back
SRW10US|TC-SRW10US
Key Features
What's Included
- 10U rack space for EIA-standard 19 in. equipment
- 200 lb maximum load capacity
- Hinged back for easy access and maintenance
Key Features
What's Included
- 10U rack space for EIA-standard 19 in. equipment
- 200 lb maximum load capacity
- Hinged back for easy access and maintenance
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
What's Included
- 10U rack space for EIA-standard 19 in. equipment
- 200 lb maximum load capacity
- Hinged back for easy access and maintenance
Eaton Tripp Lite
Eaton Tripp Lite SRW10US SmartRack 10U Low-Profile Switch-Depth Wall-Mount Small Rack Enclosure, Hinged Back
SRW10US | TC-SRW10US
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

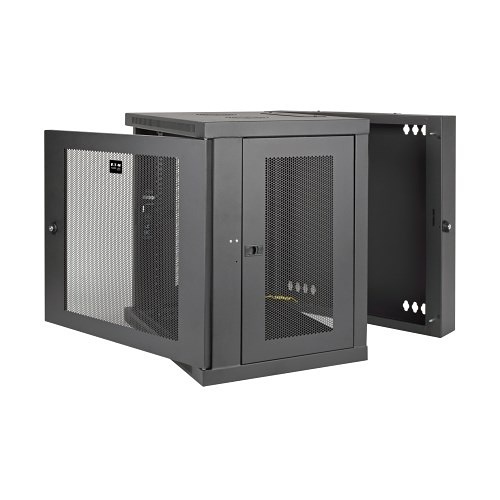

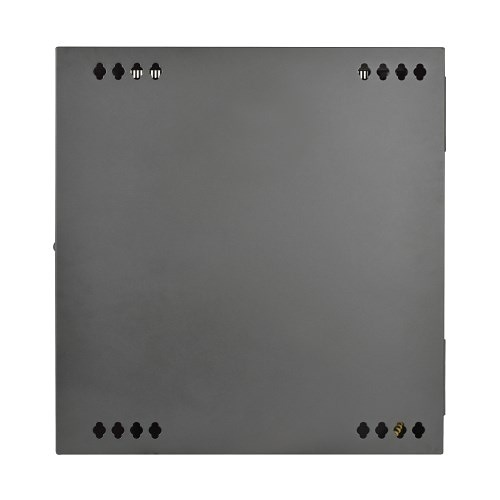

The SRW10US SmartRack 10U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19" rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 lb (90.7 kg). The cabinet swings away from the wall on a sturdy hinge, allowing easy back-door access to equipment and cabling during installation and maintenance. The doors and side panels lock securely to help prevent damage, tampering or theft. The front, top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible doors can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing. The SRW10US comes fully assembled and ready to mount to the wall, or use the optional SRCASTER rolling caster kit (sold separately) to make it a mobile rack. Square and 12-24 threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8" increments to accommodate equipment up to 20.5" deep, such as network switches and patch panels.
Main Features
- 10U rack space for EIA-standard 19 in. equipment
- 200 lb maximum load capacity
- Hinged back for easy access and maintenance
- Reversible doors for flexible installation
- Lockable side panels and doors for security
- Vented panels for optimal airflow
- Cable routing Ports with removable covers
- Ships fully assembled for quick setup
- Wall or floor mounting options available
- Complies with PCI DSS security standards
General Information
Name: Eaton Tripp Lite SRW10US SmartRack 10U Low-Profile Switch-Depth Wall-Mount Small Rack Enclosure, Hinged Back
Category: Data Comm & Networking, Racks & Enclosures, Rack Cabinets & Frames
UPC Code: 037332154828
Country of Origin: China. Country of origin is subject to change.
Specifications
-
ADI Part Number TC-SRW10US Brand Name Eaton Tripp Lite Manufacturer Eaton Manufacturer Part Number SRW10US Product Line SmartRack Product Model SRW10US Product Name SRW10US Wall mount Rack Enclosure Cabinet 10U 19" Product Type Rack Cabinet
-
Color Black Depth 21.5" Form Factor Wall Mount Height 21.6" Maximum Weight Capacity 140 lb Rack Height 10U Rack Width 19" Width 23.6"
-
Limited Warranty 5-Year
-

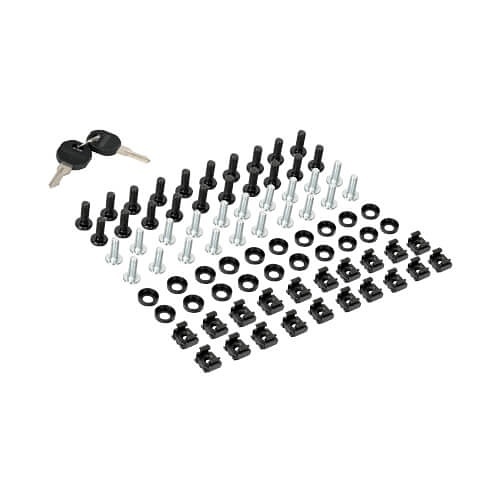

Country of Origin CN Environmental Certification RoHS Environmentally Friendly Yes Package Contents - SRW10US SmartRack 10U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet
- (24) M6 screws
- (24) M6 cage nuts
- (24) M6 washers
- (24) 12-24 screws
- (2) Keys
- Owner’s manual
