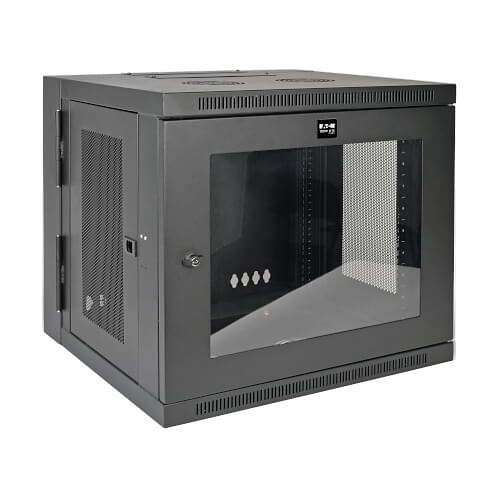

Eaton Tripp Lite SRW10USG SmartRack Low-Profile Small Wall Mount Rack Enclosure with Clear Acrylic Window and Hinged Back, 20.5" (52cm), 200lb (90.7kg), 10U
SRW10USG | TC-SRW10USG
Please sign in to view pricing and availability and to add to cart.
Product Overview

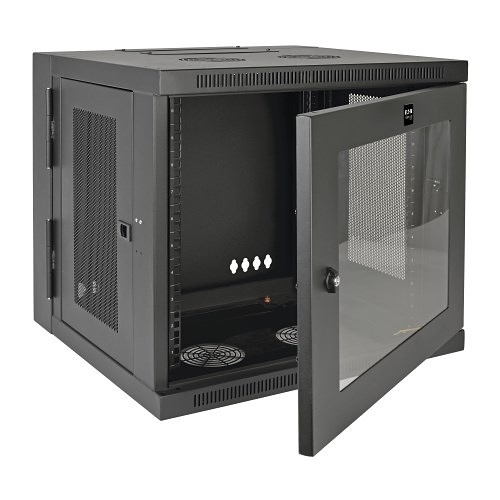

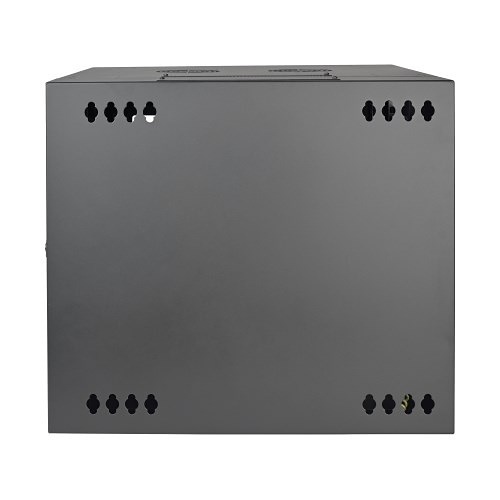

The SRW10USG SmartRack 10U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 pounds.The front door features a shatter-resistant clear acrylic window that lets you monitor equipment readouts without unlocking the enclosure. Not only does the window help prevent equipment tampering and reduce acoustic noise, but it also adds visual flair to your IT installation.The cabinet swings away from the wall on a sturdy hinge, allowing easy back-door access to equipment and cabling during installation and maintenance. The doors and side panels lock securely to help prevent damage, tampering or theft. The top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible doors can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing.The SRW10USG comes fully assembled and ready to mount to the wall, or use Tripp Lite's optional SRCASTER rolling caster kit to make it a mobile rack. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 20.5 inches deep, such as network switches and patch panels.
Main Features
- 10U rack space for EIA-standard 19 in. equipment
- 200 lb. maximum load capacity
- Hinged back for easy access and maintenance
- Clear acrylic window for monitoring and security
- Lockable side panels and doors for equipment safety
- Vented panels for optimal airflow and cooling
- Ships fully assembled for quick installation
- Wall-mount or optional caster kit for mobility

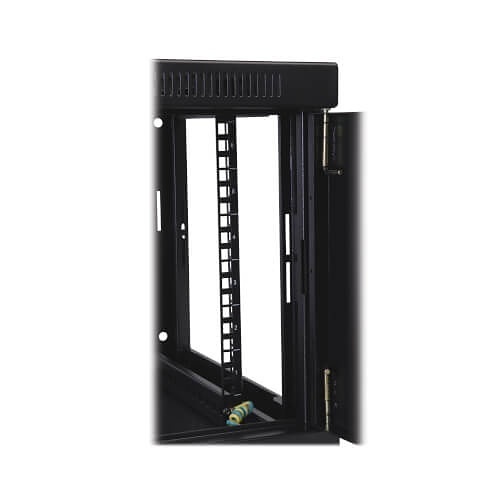

- Adjustable vertical mounting rails for flexibility
- PCI DSS Compliance for secure media storage
General Information
Specifications
-
ADI Part Number TC-SRW10USG Brand Name Eaton Tripp Lite Manufacturer Eaton Manufacturer Part Number SRW10USG Product Line SmartRack Product Model SRW10USG Product Name SmartRack SRW10USG Rack Cabinet Product Type Rack Cabinet Weight 53.40 lb
-
Application/Usage LAN Switch Color Black Depth 21.6" Form Factor Wall Mount Height 21.6" Material Plexiglass Maximum Weight Capacity 200 lb Rack Height 10U Width 23.6"
-
Limited Warranty 5-Year
-
Assembly Required No Country of Origin CN Environmental Certification RoHS Environmentally Friendly Yes Package Contents - SRW10USG SmartRack 10U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet
- (24) M6 screws
- (24) M6 cage nuts
- (24) M6 washers
- (24) 12-24 screws
- (2) Keys
- Owner’s manual
