Eaton Tripp Lite SRW12USDPG SmartRack UPS-Depth Small Wall Mount Rack Enclosure with Clear Acrylic Window and Hinged Back, 24.5" (62cm), 200lb (90.7kg), 12U
SRW12USDPG|TC-SRW12SDPG
Eaton Tripp Lite SRW12USDPG SmartRack UPS-Depth Small Wall Mount Rack Enclosure with Clear Acrylic Window and Hinged Back, 24.5" (62cm), 200lb (90.7kg), 12U
SRW12USDPG|TC-SRW12SDPG
Key Features
What's Included
- 12U rack space for EIA-standard 19 in. equipment
- 200 lb maximum load capacity
- Hinged back for easy access and maintenance
Key Features
What's Included
- 12U rack space for EIA-standard 19 in. equipment
- 200 lb maximum load capacity
- Hinged back for easy access and maintenance
Key Features
What's Included
- 12U rack space for EIA-standard 19 in. equipment
- 200 lb maximum load capacity
- Hinged back for easy access and maintenance

Eaton Tripp Lite
Eaton Tripp Lite SRW12USDPG SmartRack UPS-Depth Small Wall Mount Rack Enclosure with Clear Acrylic Window and Hinged Back, 24.5" (62cm), 200lb (90.7kg), 12U
SRW12USDPG | TC-SRW12SDPG
Please sign in to view pricing and availability and to add to cart.
Accessories
Network Patch Panels
Sign In for Dealer Pricing
Category 6 Patch Cables
Sign In for Dealer Pricing
Rack Accessories
Sign In for Dealer Pricing
Overview
Specifications
Documents
Product Overview

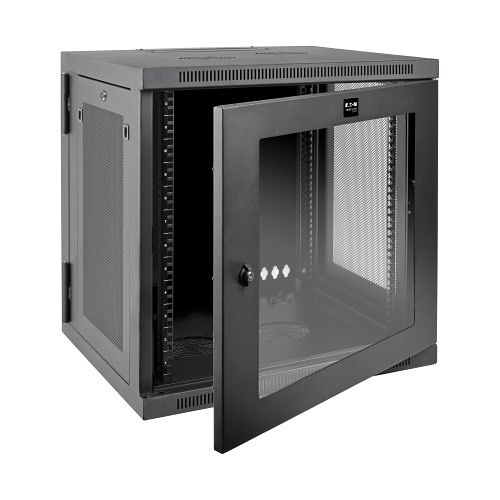

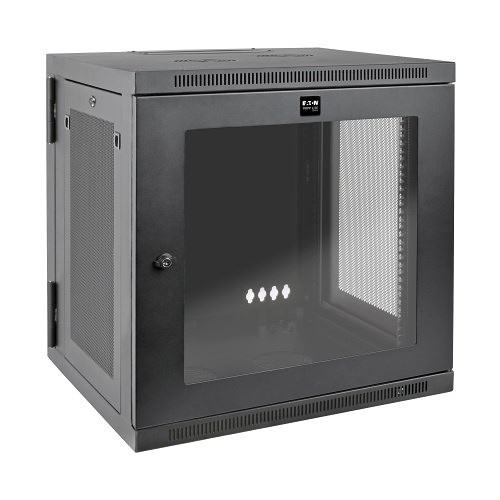

The SRW12USDPG SmartRack 12U UPS-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19" rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 lb (90.7 kg). The front door features a shatter-resistant clear acrylic window that lets you monitor equipment readouts without unlocking the enclosure. Not only does the window help prevent equipment tampering and reduce acoustic noise, but it also adds visual flair to your IT installation. The cabinet swings away from the wall on a sturdy hinge, allowing easy back-door access to equipment and cabling during installation and maintenance. The doors and side panels lock securely to help prevent damage, tampering or theft. The top, bottom and removable side panels are vented, which allows air to flow freely and keeps equipment cool. The reversible doors can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing. The SRW12USDPG comes fully assembled and ready to mount to the wall, or use the optional SRCASTER rolling caster kit (sold separately) to make it a mobile rack. Square and 12-24 threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8" increments to accommodate equipment up to 24.5" deep, such as network switches, UPS systems and related battery packs and cabling.
Main Features
- 12U rack space for EIA-standard 19 in. equipment
- 200 lb maximum load capacity
- Hinged back for easy access and maintenance
- Clear acrylic window for monitoring without unlocking
- Lockable side panels and doors for security
- Vented panels for optimal airflow
- Ships fully assembled for quick installation
- Wall-mount or optional caster kit for mobility
- Adjustable rails for equipment up to 24.5 in. deep
- PCI DSS Compliance for secure media storage
General Information
Name: Eaton Tripp Lite SRW12USDPG SmartRack UPS-Depth Small Wall Mount Rack Enclosure with Clear Acrylic Window and Hinged Back, 24.5" (62cm), 200lb (90.7kg), 12U
Category: Data Comm & Networking, Racks & Enclosures, Rack Cabinets & Frames
UPC Code: 037332189721
Country of Origin: China. Country of origin is subject to change.
Specifications
-
ADI Part Number TC-SRW12SDPG Brand Name Eaton Tripp Lite Manufacturer Eaton Manufacturer Part Number SRW12USDPG Product Line SmartRack Product Model SRW12USDPG Product Name SRW12USDPG SmartRack 12U UPS-Depth Wall-Mount Rack Enclosure Cabinet Product Type Rack Cabinet Weight 64lb
-
Application/Usage UPS Color Black Depth 25.5" Form Factor Wall Mount Height 25.1" Material Acrylic, Steel Maximum Weight Capacity 200 lb Rack Depth 24.50" Rack Height 12U Rack Width 19" Width 23.6"
-
Limited Warranty 5-Year
-
Assembly Required No Country of Origin CN Environmental Certification RoHS Environmentally Friendly Yes Package Contents - SRW12USDPG SmartRack 12U UPS-Depth Wall-Mount Rack Enclosure Cabinet
- (20) M6 screws
- (20) M6 cage nuts
- (20) M6 washers
- (20) 12-24 screws
- (2) Keys
- Owner’s manual
