Eaton Tripp Lite SRW12U SmartRack Low-Profile Switch-Depth Small Wall Mount Rack Enclosure, 16.5" (42cm), 200lb (90.7kg), 12U
SRW12U|TC-SRW12U
Eaton Tripp Lite SRW12U SmartRack Low-Profile Switch-Depth Small Wall Mount Rack Enclosure, 16.5" (42cm), 200lb (90.7kg), 12U
SRW12U|TC-SRW12U
Key Features
- 12U rack space for EIA-standard 19 in. equipment
- 200 lb maximum load capacity
- Secure locking side panels and front door
Key Features
- 12U rack space for EIA-standard 19 in. equipment
- 200 lb maximum load capacity
- Secure locking side panels and front door
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- 12U rack space for EIA-standard 19 in. equipment
- 200 lb maximum load capacity
- Secure locking side panels and front door
Eaton Tripp Lite
Eaton Tripp Lite SRW12U SmartRack Low-Profile Switch-Depth Small Wall Mount Rack Enclosure, 16.5" (42cm), 200lb (90.7kg), 12U
SRW12U | TC-SRW12U
Please sign in to view pricing and availability and to add to cart.
Accessories
ADI # 0E-C5EPP24
MODEL # 0E-C5EPP24
Sign In for Dealer Pricing
ADI # 0E-C6BL36
MODEL # 0E-C6BL36
Sign In for Dealer Pricing
ADI # 0E-C6KEYBL10
MODEL # 0E-C6KEYBL10
0E-C6KEYBL10|0E-C6KEYBL10
Sign In for Dealer Pricing
ADI # TC-SRCABDCT1
MODEL # SRCABLEDUCT1U
SRCABLEDUCT1U|TC-SRCABDCT1
Sign In for Dealer Pricing
ADI # TC-SRCABL1U
MODEL # SRCABLERING1U
SRCABLERING1U|TC-SRCABL1U
Sign In for Dealer Pricing
ADI # TC-SRCAGEN5M
MODEL # SRCAGENUT5MM
SRCAGENUT5MM|TC-SRCAGEN5M
Sign In for Dealer Pricing
ADI # TC-SRCAGENUT
MODEL # SRCAGENUTS
SRCAGENUTS|TC-SRCAGENUT
Sign In for Dealer Pricing
ADI # TC-SRCASTER
MODEL # SRCASTER
Sign In for Dealer Pricing
ADI # TC-SRCBD1UHD
MODEL # SRCABLEDUCT1UHD
SRCABLEDUCT1UHD|TC-SRCBD1UHD
Sign In for Dealer Pricing
ADI # TC-SRFANWM
MODEL # SRFANWM
SRFANWM|TC-SRFANWM
Sign In for Dealer Pricing
Overview
Specifications
Documents
Product Overview

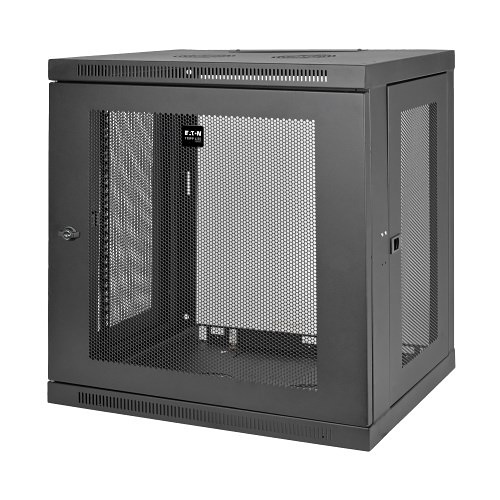

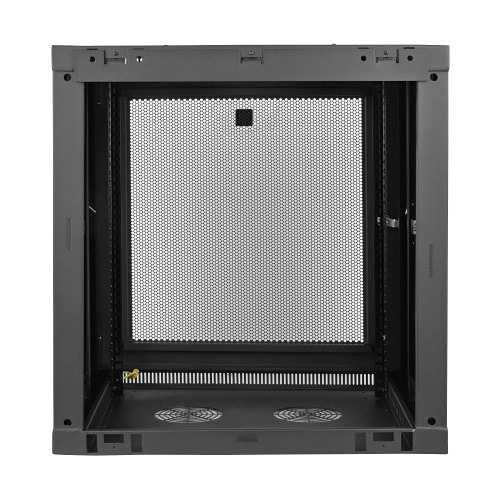

The SRW12U SmartRack 12U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19" rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 lb (90.7 kg). The side panels and front door lock securely to help prevent damage, tampering or theft. The front, top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible front door can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing. The SRW12U comes fully assembled and ready to mount to the wall, or use the optional SRCASTER rolling caster kit (sold separately) to make it a mobile rack. Square and 12-24 threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8" increments to accommodate equipment up to 16.5" deep, such as network switches and patch panels.
Main Features
- 12U rack space for EIA-standard 19 in. equipment
- 200 lb maximum load capacity
- Secure locking side panels and front door
- Vented panels for optimal airflow
- Reversible front door for flexible access
- Convenient Cable routing ports
- Ships fully assembled for quick setup
- Wall-mount or optional caster kit for mobility
- Adjustable rails for equipment up to 16.5 in. deep
- Complies with PCI DSS security standards
General Information
Name: Eaton Tripp Lite SRW12U SmartRack Low-Profile Switch-Depth Small Wall Mount Rack Enclosure, 16.5" (42cm), 200lb (90.7kg), 12U
Category: Data Comm & Networking, Racks & Enclosures, Rack Cabinets & Frames
UPC Code: 037332174451
Country of Origin: China. Country of origin is subject to change.
Specifications
-
ADI Part Number TC-SRW12U Brand Name Eaton Tripp Lite Manufacturer Eaton Manufacturer Part Number SRW12U Product Line SmartRack Product Model SRW12U Product Name SmartRack 12U Wall-Mount Rack Enclosure Cabinet Product Type Rack Cabinet Weight 48.50 lb
-
Color Black Depth 17.7" Form Factor Wall Mount Height 25.1" Maximum Weight Capacity 200 lb Rack Height 12U Rack Width 19" Width 23.6"
-
Limited Warranty 5-Year
-
Country of Origin CN Environmental Certification RoHS Environmentally Friendly Yes Features UL 60950-1
