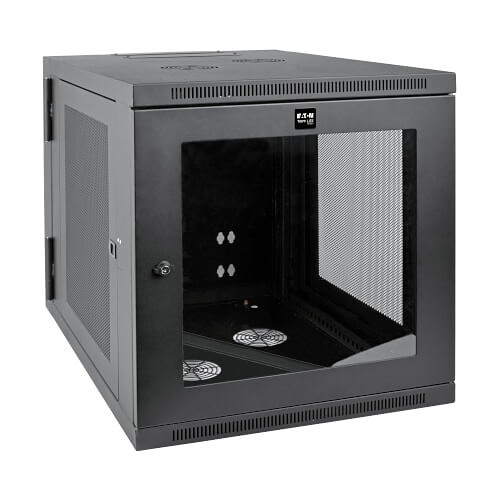

The SRW12US33G SmartRack 12U Server-Depth Wall-Mount Rack Enclosure Cabinet is ideal for storing 19-inch rack equipment up to 32.5 inches in depth in areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 250 pounds.

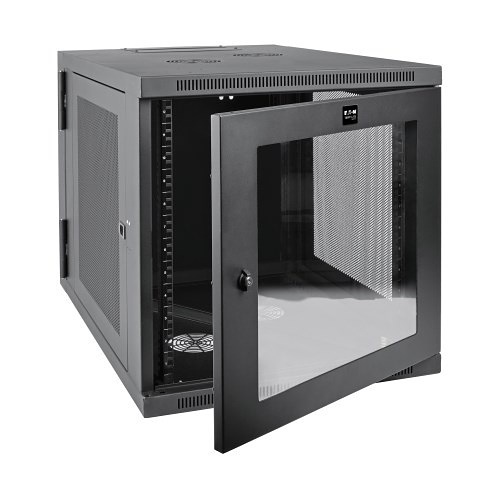

The front door features a shatter-resistant clear acrylic window that lets you monitor equipment readouts without unlocking the enclosure. Not only does the window help prevent equipment tampering and reduce acoustic noise, but it also adds visual flair to your IT installation.

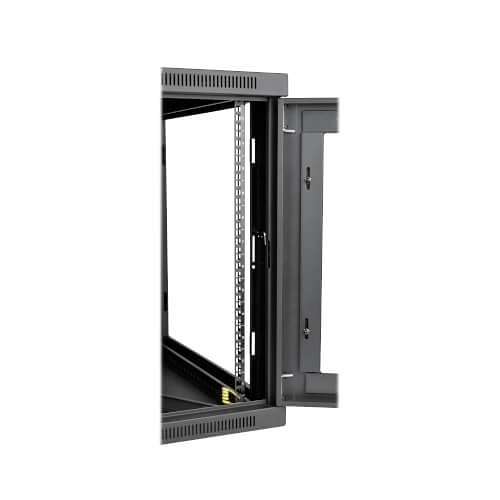

The cabinet swings away from the wall on a sturdy hinge, allowing easy access to equipment and cabling during installation and maintenance. To ensure your valuable equipment stays secure, the doors and side panels lock. The top, bottom and removable side panels are vented, which allows air to flow freely through the rack to keep equipment cool. The reversible doors can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing through the cabinet.
The SRW12US33G comes fully assembled and ready to mount to the wall. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 32.5 inches, such as 1U servers, UPS systems, battery packs and switches.
Name : Tripp Lite SRW12US33G SmartRack Server-Depth Wall Mount Small Rack Enclosure with Clear Acrylic Window and Hinged Back, 32.5" (83cm), 250lb (113.4kg), 12U , Tripp Lite by Eaton
Category : Rack Cabinets & Frames
UPC Code : 037332187352
Country of Origin : China. Country of origin is subject to change.
ADI Part Number : TC-SRW12US3G
Brand Name : Tripp Lite
Manufacturer : Tripp Lite by Eaton
Manufacturer Part Number : SRW12US33G
Product Line : SmartRack
Product Model : SRW12US33G
Product Name : SRW12US33G SmartRack 12U Server-Depth Wall-Mount Rack Enclosure Cabinet
Product Type : Rack Cabinet
Weight (Approximate) (g) : 42864.479
Application/Usage : LAN Switch, Patch Panel, PDU, Server
Depth : 33.5"
Depth (mm) : 850.9
Form Factor : Wall Mountable
Height : 25"
Height (mm) : 635
Maximum Weight Capacity : 250 lb
Maximum Weight Capacity (g) : 113398.093
Product Color : Black Powder Coat
Product Material : Acrylic, Steel
Rack Depth : 25.99"
Rack Depth (mm) : 660.146
Rack Height : 12U
Rack Width : 19"
Rack Width (mm) : 482.6
Static/Stationary Weight Capacity : 250 lb
Static/Stationary Weight Capacity (g) : 113398.093
Weight (Approximate) : 94.50 lb
Width : 23.6"
Width (mm) : 600.202
Limited Warranty : 5 Year
Assembly Required : No
Country of Origin : China
Environmental Certification : RoHS
Environmentally Friendly : Yes
Package Contents : <ul> <li>SRW12US33G SmartRack 12U Server-Depth Wall-Mount Rack Enclosure Cabinet</li> <li>36 x M6 Screws</li> <li>36 x M6 Cage Nuts</li> <li>36 x M6 Washers</li> <li>36 x 12-24 Screws</li> <li>2 x Keys</li> <li>Owner's Manual</li> </ul>
