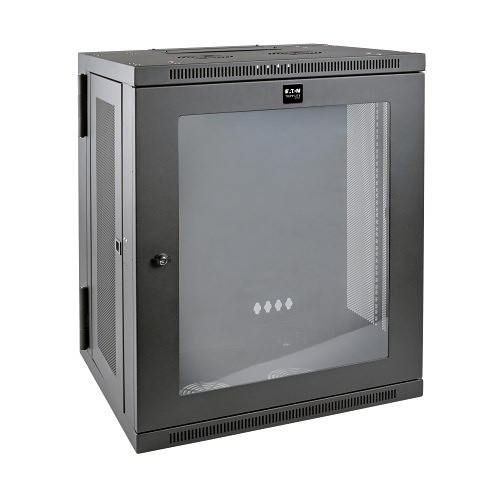

The SRW15USG SmartRack 15U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet is ideal for storing EIA-standard 19-inch rack equipment in network closets and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 pounds.

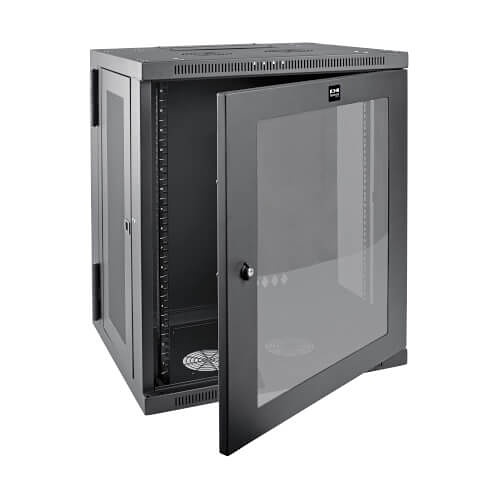

The front door features a shatter-resistant clear acrylic window that lets you monitor equipment readouts without unlocking the enclosure. Not only does the window help prevent equipment tampering and reduce acoustic noise, but it also adds visual flair to your IT installation.

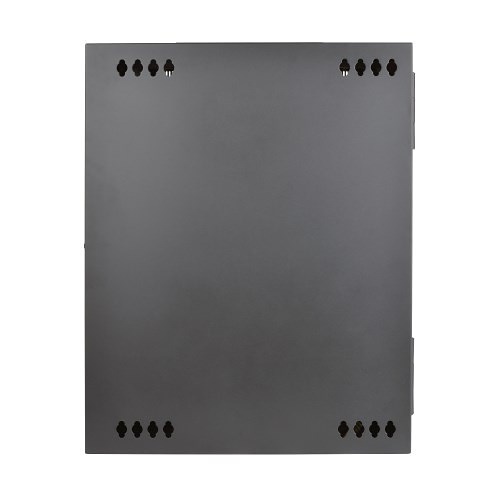

The cabinet swings away from the wall on a sturdy hinge, allowing easy access to equipment and cabling during installation and maintenance. To ensure your valuable equipment stays secure, the doors and side panels lock. The top, bottom and removable side panels are vented, which allows air to flow freely through the rack to keep equipment cool. The reversible doors can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing through the cabinet.

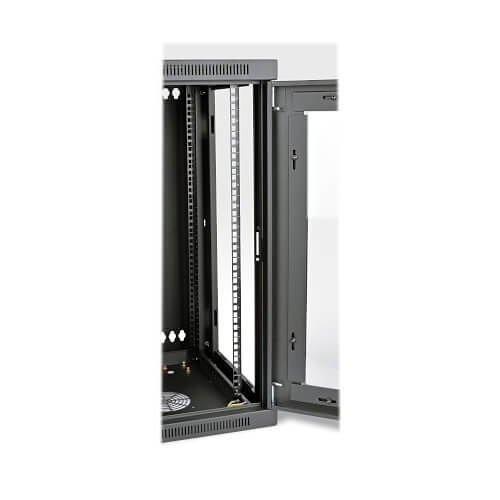

The SRW15USG comes fully assembled and ready to mount to the wall. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to house equipment up to 20.5 inches deep, such as network switches and patch panels.
Name : Tripp Lite SRW15USG SmartRack Low-Profile Switch-Depth Wall-Mount Half-Height Rack Enclosure with Clear Acrylic Window and Hinged Back, 20.5" (52cm), 200lb (90.7kg), 15U , Tripp Lite by Eaton
Category : Rack Cabinets & Frames
UPC Code : 037332187369
Country of Origin : China. Country of origin is subject to change.
ADI Part Number : TC-SRW15USG
Brand Name : Tripp Lite
Manufacturer : Tripp Lite by Eaton
Manufacturer Part Number : SRW15USG
Product Line : SmartRack
Product Model : SRW15USG
Product Name : SRW15USG SmartRack 15U Low-Profile Switch-Depth WallMount Rack Enclosure Cabinet
Product Type : Rack Cabinet
Weight (Approximate) (g) : 40006.847
Application/Usage : LAN Switch, Patch Panel
Depth : 21.6"
Depth (mm) : 548.64
Form Factor : Wall Mountable
Height : 30.3"
Height (mm) : 770.382
Maximum Weight Capacity : 200 lb
Maximum Weight Capacity (g) : 90718.474
Product Color : Black Powder Coat
Product Material : Acrylic, Steel
Rack Depth : 10.42"
Rack Depth (mm) : 264.668
Rack Height : 15U
Rack Width : 19"
Rack Width (mm) : 482.6
Static/Stationary Weight Capacity : 200 lb
Static/Stationary Weight Capacity (g) : 90718.474
Weight (Approximate) : 88.20 lb
Width : 23.6"
Width (mm) : 599.948
Limited Warranty : 5 Year
Assembly Required : No
Country of Origin : China
Environmental Certification : RoHS
Environmentally Friendly : Yes
Package Contents : <ul> <li>SRW15USG SmartRack 15U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet</li> <li>20 x M6 Screws</li> <li>20 x M6 Cage Nuts</li> <li>20 x M6 Washers</li> <li>20 x 12-24 Screws</li> <li>2 x Keys</li> <li>Owner's Manual</li> </ul>
