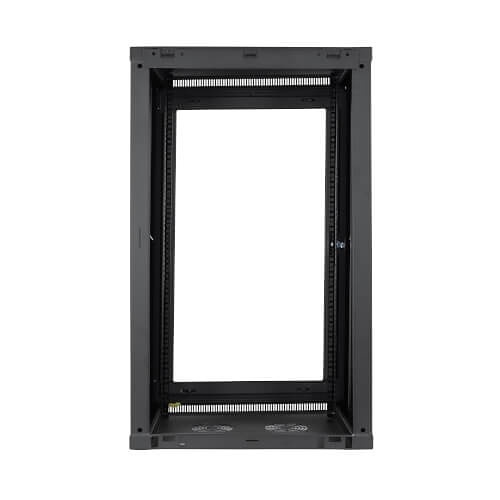

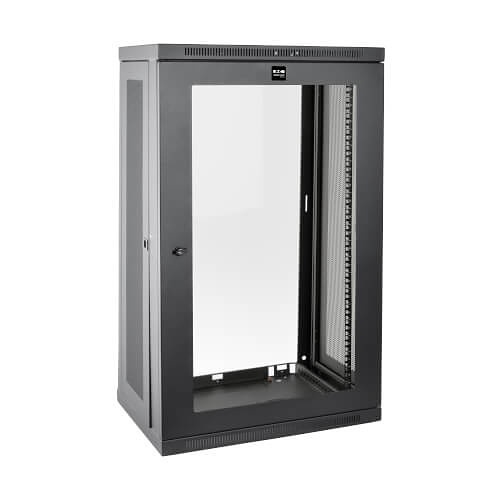

The SRW21UG SmartRack 21U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet is ideal for storing EIA-standard 19-inch rack equipment in network closets, retail locations, classrooms and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 pounds.

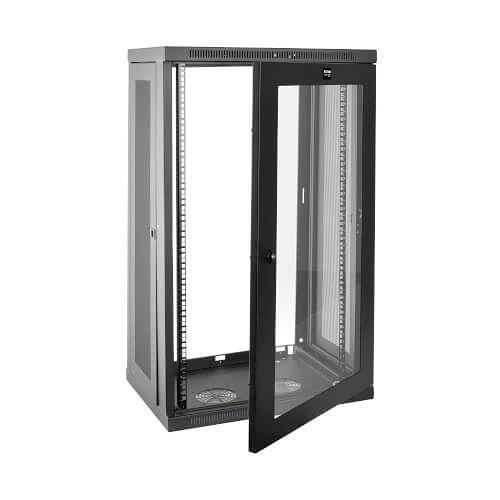

The front door features a shatter-resistant clear acrylic window that lets you monitor equipment without unlocking the enclosure. Not only does the window help prevent equipment tampering and reduce acoustic noise, but it also adds visual flair to your IT installation.

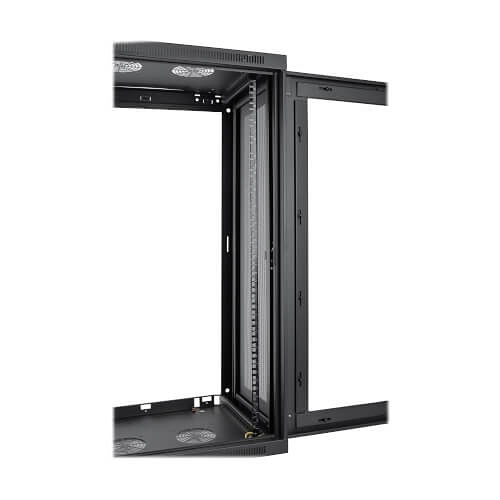

To ensure your valuable equipment stays secure, the side panels and front door lock. The top, bottom and removable side panels are vented, which allows air to flow freely through the cabinet to keep equipment cool. The reversible front door can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing through the cabinet.
The SRW21UG comes fully assembled and ready to mount to the wall(or use Tripp Lite's optional SRCASTER caster kit to make it a mobile rolling rack). Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 16.5 inches deep, such as network switches and patch panels.Features
Saves Valuable Workspace
- Perfect for network closets, retail locations, classrooms and other areas with limited floor space where you need equipment to be secure, organized and out of the way
- Houses EIA-standard 19 in. rack equipment in 21U of space
- Maximum load capacity of 200 lb.
Shatter-Resistant Clear Acrylic Front Window
- Lets you monitor equipment without unlocking the enclosure
- Prevents equipment tampering
- Reduces acoustic noise
- Provides extra visual flair
Keeps Important Equipment Secure
- Side panels and front door lock securely
- Vented panels allow generous airflow that keeps equipment cool
- Rotate cabinet 180° before mounting to open reversible front door left or right
- Convenient ports with removable covers allow cable routing through top and bottom
Easy Enclosure and Equipment Installation
- Ships fully assembled for quick installation
- Mounts to wall or rolls on floor with Tripp Lite's optional SRCASTER caster kit
- Wall-mounting holes spaced 16 in. apart to accommodate standard wall stud placement
- Vertical mounting rails adjust in 7/8 in. increments to house equipment up to 16.5 in. deep
- Rails adjust easily-unscrew them, slide them to desired depth, and screw them back in
- Rails support square-hole or threaded-hole mounting
- Rack spaces numbered for easy reference
Meets Payment Card Industry Standards
- Provides physical equipment and media security required for PCI DSS(Payment Card Industry Data Security Standard) compliance
Name : Tripp Lite SRW21UG SmartRack Low-Profile Switch-Depth Wall Mount Half-Height Rack Enclosure with Clear Acrylic Window, 16.5" (42cm), 200lb (90.7kg), 21U , Tripp Lite by Eaton
Category : Rack Cabinets & Frames
UPC Code : 037332187338
Country of Origin : China. Country of origin is subject to change.
ADI Part Number : TC-SRW21UG
Brand Name : Tripp Lite
Manufacturer : Tripp Lite by Eaton
Manufacturer Part Number : SRW21UG
Product Line : SmartRack
Product Model : SRW21UG
Product Name : SRW21UG SmartRack 21U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet
Product Type : Rack Cabinet
Weight (Approximate) (g) : 23223.929
Application/Usage : LAN Switch, Patch Panel
Depth : 17.7"
Depth (mm) : 450.088
Form Factor : Wall Mountable
Height : 40.9"
Height (mm) : 1038.098
Maximum Weight Capacity : 200 lb
Maximum Weight Capacity (g) : 90718.474
Product Color : Black Powder Coat
Product Material : Acrylic, Steel
Rack Depth : 16.50"
Rack Depth (mm) : 419.1
Rack Height : 21U
Rack Width : 19"
Rack Width (mm) : 482.6
Static/Stationary Weight Capacity : 200 lb
Static/Stationary Weight Capacity (g) : 90718.474
Weight (Approximate) : 51.20 lb
Width : 23.6"
Width (mm) : 600.202
Limited Warranty : 5 Year
Assembly Required : No
Country of Origin : China
Environmental Certification : RoHS
Environmentally Friendly : Yes
