Eaton Tripp Lite SRW26USDP SmartRack UPS-Depth Wall Mount Half-Height Rack Enclosure with Hinged Back, 24.5" (62cm), 250lb (113.4kg), 26U
SRW26USDP|TC-SRW26USDP
Eaton Tripp Lite SRW26USDP SmartRack UPS-Depth Wall Mount Half-Height Rack Enclosure with Hinged Back, 24.5" (62cm), 250lb (113.4kg), 26U
SRW26USDP|TC-SRW26USDP
Key Features
What's Included
- 26U rack space for EIA-standard 19 in. equipment
- Hinged design for easy access and maintenance
- Supports up to 250 lb (113.4 kg) load capacity
Key Features
What's Included
- 26U rack space for EIA-standard 19 in. equipment
- Hinged design for easy access and maintenance
- Supports up to 250 lb (113.4 kg) load capacity
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
What's Included
- 26U rack space for EIA-standard 19 in. equipment
- Hinged design for easy access and maintenance
- Supports up to 250 lb (113.4 kg) load capacity
Eaton Tripp Lite
Eaton Tripp Lite SRW26USDP SmartRack UPS-Depth Wall Mount Half-Height Rack Enclosure with Hinged Back, 24.5" (62cm), 250lb (113.4kg), 26U
SRW26USDP | TC-SRW26USDP
Please sign in to view pricing and availability and to add to cart.
Accessories
Keystone Jacks
ADI # 0E-C6KEYBL10
MODEL # 0E-C6KEYBL10
0E-C6KEYBL10|0E-C6KEYBL10
Sign In for Dealer Pricing
Rack Bases, Doors & Panels
ADI # TC-SR1UPANEL
MODEL # SR1UPANEL10
SR1UPANEL10|TC-SR1UPANEL
Sign In for Dealer Pricing
Rack Bases, Doors & Panels
ADI # TC-SR1UBRUSH
MODEL # SR1UBRUSH
SR1UBRUSH|TC-SR1UBRUSH
Sign In for Dealer Pricing
Cable Ducts
ADI # TC-SRCABDCT1
MODEL # SRCABLEDUCT1U
SRCABLEDUCT1U|TC-SRCABDCT1
Sign In for Dealer Pricing
Cable Managers
ADI # TC-SRCABL1U
MODEL # SRCABLERING1U
SRCABLERING1U|TC-SRCABL1U
Sign In for Dealer Pricing
Cable Managers
ADI # TC-SRCABL2U
MODEL # SRCABLERING2U
SRCABLERING2U|TC-SRCABL2U
Sign In for Dealer Pricing
Rack Accessories
ADI # TC-SRCAGENUT
MODEL # SRCAGENUTS
SRCAGENUTS|TC-SRCAGENUT
Sign In for Dealer Pricing
Overview
Specifications
Documents
Product Overview

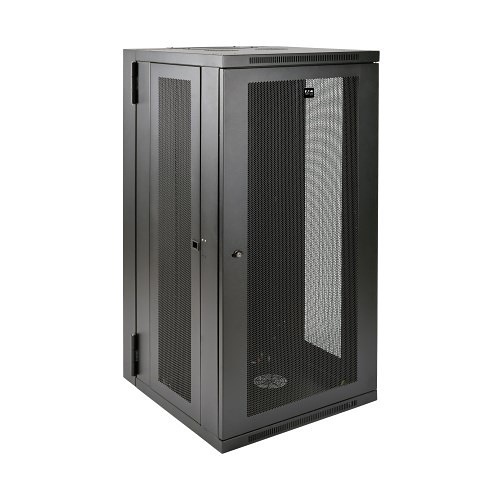

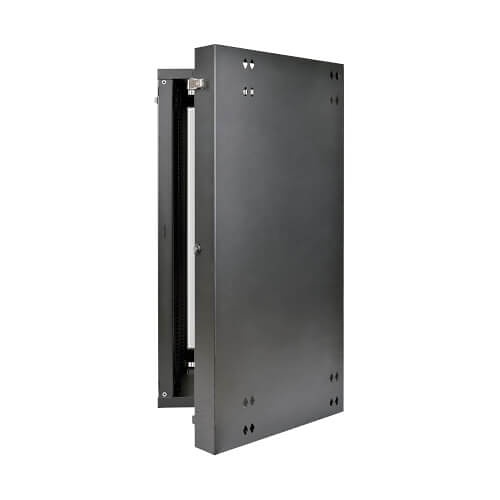

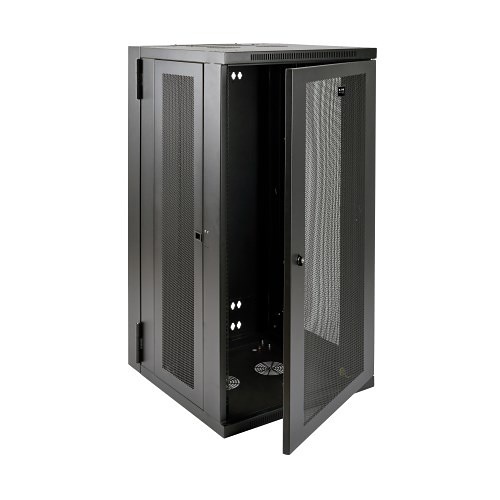

The SRW26USDP SmartRack 26U UPS-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19" rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 250 lb (113.4 kg). The cabinet swings away from the wall on a sturdy hinge, allowing easy back-door access to equipment and cabling during installation and maintenance. The doors and side panels lock securely to help prevent damage, tampering or theft. The front, top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible doors can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing. The SRW26USDP comes fully assembled and ready to mount to the wall, or use the optional SRCASTER rolling caster kit (sold separately) to make it a mobile rack. Square and 12-24 threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8" increments to accommodate equipment up to 24.5" deep, such as network switches, UPS systems and related battery packs and cabling.
Main Features
- 26U rack space for EIA-standard 19 in. equipment
- Hinged design for easy access and maintenance
- Supports up to 250 lb (113.4 kg) load capacity
- Lockable side panels and doors for security
- Vented panels for optimal airflow and cooling
- Ships fully assembled for quick installation
- Wall-mount or optional caster kit for mobility
- Adjustable rails for equipment up to 24.5 in. deep
- Complies with PCI DSS for secure installations
General Information
Name: Eaton Tripp Lite SRW26USDP SmartRack UPS-Depth Wall Mount Half-Height Rack Enclosure with Hinged Back, 24.5" (62cm), 250lb (113.4kg), 26U
Category: Data Comm & Networking, Racks & Enclosures, Rack Cabinets & Frames
UPC Code: 037332189714
Country of Origin: China. Country of origin is subject to change.
Specifications
-
ADI Part Number TC-SRW26USDP Brand Name Eaton Tripp Lite Manufacturer Eaton Manufacturer Part Number SRW26USDP Product Line SmartRack Product Model SRW26USDP Product Name SmartRack 26U UPS-Depth Wall-Mount Rack Enclosure Cabinet, Hinged Back Product Type Rack Cabinet Weight 124.90lb
-
Application/Usage UPS Color Black Depth 25.5" Form Factor Wall Mount Height 49.6" Material Steel Maximum Weight Capacity 250 lb Rack Depth 24.50" Rack Height 26U Rack Width 19" Width 23.6"
-
Limited Warranty 5-Year
-
Assembly Required No Country of Origin CN Environmental Certification RoHS Environmentally Friendly Yes Package Contents - SRW26USDP SmartRack 26U UPS-Depth Wall-Mount Rack Enclosure Cabinet
- (48) M6 screws
- (48) M6 cage nuts
- (48) M6 washers
- (48) 12-24 screws
- (2) Keys
- Owner’s manual
