Eaton Tripp Lite SRW26USG SmartRack Low-Profile Switch-Depth Wall Mount Half-Height Rack Enclosure with Clear Acrylic Window and Hinged Back, 20.5" (52cm), 250lb (113.4kg), 26U

SRW26USG|TC-SRW26USG
Shop all Eaton Tripp Lite

Eaton Tripp Lite SRW26USG SmartRack Low-Profile Switch-Depth Wall Mount Half-Height Rack Enclosure with Clear Acrylic Window and Hinged Back, 20.5" (52cm), 250lb (113.4kg), 26U

SRW26USG|TC-SRW26USG
Key Features
What's Included
  • 26U space for EIA-standard 19 in. rack equipment
  • 250 lb maximum load capacity
  • Hinged back for easy access
Key Features
What's Included
  • 26U space for EIA-standard 19 in. rack equipment
  • 250 lb maximum load capacity
  • Hinged back for easy access

Sign In for Dealer Pricing

Become an ADI Customer
Key Features
What's Included
  • 26U space for EIA-standard 19 in. rack equipment
  • 250 lb maximum load capacity
  • Hinged back for easy access
Eaton Tripp Lite

Eaton Tripp Lite SRW26USG SmartRack Low-Profile Switch-Depth Wall Mount Half-Height Rack Enclosure with Clear Acrylic Window and Hinged Back, 20.5" (52cm), 250lb (113.4kg), 26U

SRW26USG | TC-SRW26USG

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

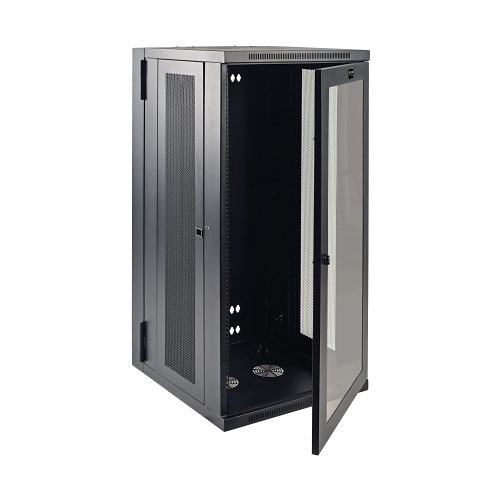

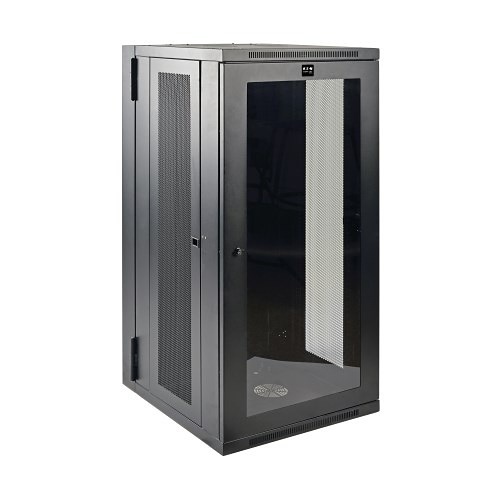

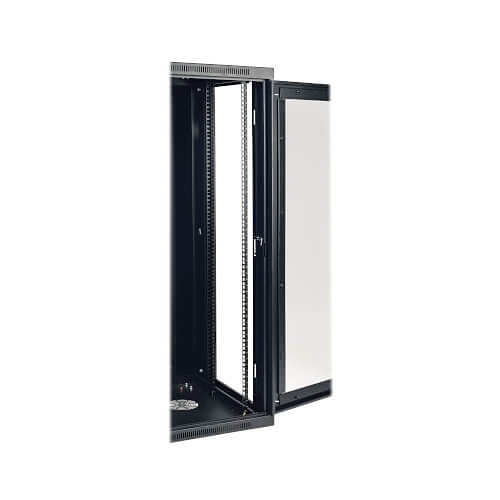

The SRW26USG SmartRack 26U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19" rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 250 lb (113.4 kg). The front door features a shatter-resistant clear acrylic window that lets you monitor equipment readouts without unlocking the enclosure. Not only does the window help prevent equipment tampering and reduce acoustic noise, but it also adds visual flair to your IT installation. The cabinet swings away from the wall on a sturdy hinge, allowing easy back-door access to equipment and cabling during installation and maintenance. The doors and side panels lock securely to help prevent damage, tampering or theft. The top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible doors can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing. The SRW26USG comes fully assembled and ready to mount to the wall, or use the optional SRCASTER rolling caster kit (sold separately) to make it a mobile rack. Square and 12-24 threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8" increments to accommodate equipment up to 20.5" deep, such as network switches and patch panels.

Main Features

  • 26U space for EIA-standard 19 in. rack equipment
  • 250 lb maximum load capacity
  • Hinged back for easy access
  • Clear acrylic window for monitoring
  • Lockable side panels and doors
  • Vented panels for airflow
  • Ships fully assembled
  • Wall or floor mounting options
  • Adjustable vertical mounting rails
  • PCI DSS Compliance for security

General Information

Name: Eaton Tripp Lite SRW26USG SmartRack Low-Profile Switch-Depth Wall Mount Half-Height Rack Enclosure with Clear Acrylic Window and Hinged Back, 20.5" (52cm), 250lb (113.4kg), 26U
Category: Pro AV, Commercial Furniture & Racks, Rack Cabinets & Frames
UPC Code: 037332187390
Country of Origin: China. Country of origin is subject to change.

Specifications

Product Documents and Resources

Product Data Sheet
User Manual
Manufacturer Brochure
Certification / Declaration
