Eaton Tripp Lite SRW9UDP SmartRack Low-Profile Switch-Depth-Plus Wall Mount Mini Rack Enclosure, 20.5" (52cm), 200lb (90.7kg), 9U
SRW9UDP|TC-SRW9UDP
Eaton Tripp Lite SRW9UDP SmartRack Low-Profile Switch-Depth-Plus Wall Mount Mini Rack Enclosure, 20.5" (52cm), 200lb (90.7kg), 9U
SRW9UDP|TC-SRW9UDP
Key Features
- 9U space for EIA-standard 19 in. rack equipment
- 200 lb (90.7 kg) maximum load capacity
- Secure locking side panels and front door
Key Features
- 9U space for EIA-standard 19 in. rack equipment
- 200 lb (90.7 kg) maximum load capacity
- Secure locking side panels and front door
Key Features
- 9U space for EIA-standard 19 in. rack equipment
- 200 lb (90.7 kg) maximum load capacity
- Secure locking side panels and front door
Eaton Tripp Lite
Eaton Tripp Lite SRW9UDP SmartRack Low-Profile Switch-Depth-Plus Wall Mount Mini Rack Enclosure, 20.5" (52cm), 200lb (90.7kg), 9U
SRW9UDP | TC-SRW9UDP
Please sign in to view pricing and availability and to add to cart.
Accessories
Rack Bases, Doors & Panels
ADI # TC-SR1UPANEL
MODEL # SR1UPANEL10
SR1UPANEL10|TC-SR1UPANEL
Sign In for Dealer Pricing
Cable Ducts
ADI # TC-SRCABDCT1
MODEL # SRCABLEDUCT1U
SRCABLEDUCT1U|TC-SRCABDCT1
Sign In for Dealer Pricing
Cable Managers
ADI # TC-SRCABL1U
MODEL # SRCABLERING1U
SRCABLERING1U|TC-SRCABL1U
Sign In for Dealer Pricing
Cable Managers
ADI # TC-SRCABL2U
MODEL # SRCABLERING2U
SRCABLERING2U|TC-SRCABL2U
Sign In for Dealer Pricing
Rack Accessories
ADI # TC-SRCAGEN5M
MODEL # SRCAGENUT5MM
SRCAGENUT5MM|TC-SRCAGEN5M
Sign In for Dealer Pricing
Rack Accessories
ADI # TC-SRCAGENUT
MODEL # SRCAGENUTS
SRCAGENUTS|TC-SRCAGENUT
Sign In for Dealer Pricing
Rack Bases, Doors & Panels
ADI # TC-SRFAN3U
MODEL # SRFAN3U
SRFAN3U|TC-SRFAN3U
Sign In for Dealer Pricing
Overview
Specifications
Documents
Product Overview

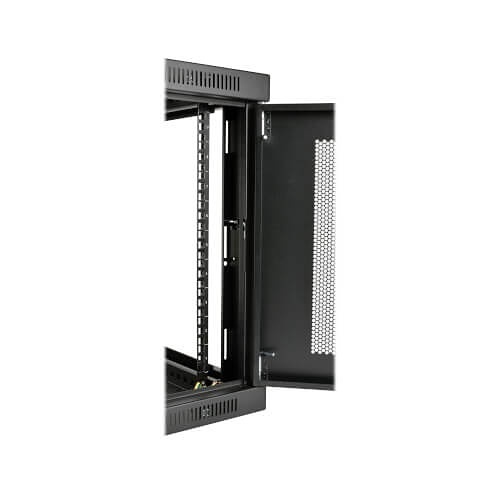

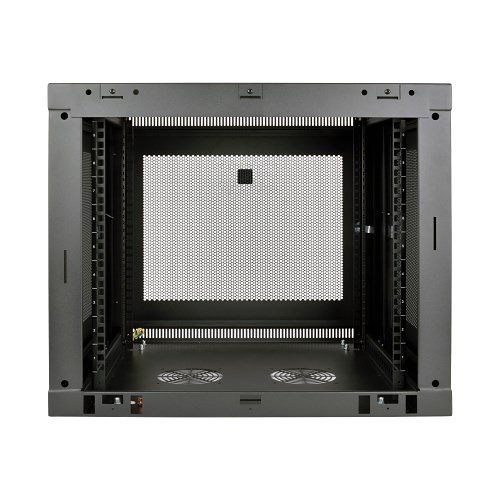

The SRW9UDP SmartRack 9U Low-Profile Switch-Depth-Plus Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19" rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 lb (90.7 kg). The side panels and front door lock securely to help prevent damage, tampering or theft. The front, top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible front door can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing. The SRW9UDP comes fully assembled and ready to mount to the wall, or use an optional SRCASTER rolling caster kit to make it a mobile rack. Square and 12-24 threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8" increments to accommodate equipment up to 20.5" deep, such as network switches and patch panels.
Main Features
- 9U space for EIA-standard 19 in. rack equipment
- 200 lb (90.7 kg) maximum load capacity
- Secure locking side panels and front door
- Vented panels for optimal airflow
- Reversible front door for flexible access
- Cable routing Ports with removable covers
- Ships fully assembled for quick setup
- Wall-mount or floor-roll with optional caster kit
- Adjustable rails for equipment up to 20.5 in. deep
- Complies with PCI DSS security standards
General Information
Name: Eaton Tripp Lite SRW9UDP SmartRack Low-Profile Switch-Depth-Plus Wall Mount Mini Rack Enclosure, 20.5" (52cm), 200lb (90.7kg), 9U
Category: Pro AV, Commercial Furniture & Racks, Rack Cabinets & Frames
UPC Code: 037332191465
Country of Origin: China. Country of origin is subject to change.
Specifications
-
ADI Part Number TC-SRW9UDP Brand Name Eaton Tripp Lite Manufacturer Eaton Manufacturer Part Number SRW9UDP Product Line SmartRack Product Model SRW9UDP Product Name SmartRack 9U Low-Profile Switch-Depth-Plus Wall-Mount Rack Enclosure Cabinet Product Type Rack Cabinet Weight 51.80lb
-
Application/Usage LAN Switch, Patch Panel Color Black Depth 21.7" Height 19.9" Maximum Weight Capacity 200 lb Rack Depth 20.50" Rack Height 9U Rack Width 19" Width 23.6"
-
Mount Type Wall Mount
-
Limited Warranty 5-Year
-
Assembly Required No Country of Origin CN Environmental Certification RoHS Environmentally Friendly Yes Features Cable Management
