Eaton Tripp Lite SRWF6U36 SmartRack 6U Low-Profile Vertical-Mount Server-Depth Wall Mount Rack Enclosure Cabinet
SRWF6U36|TC-SRWF6U36
Eaton Tripp Lite SRWF6U36 SmartRack 6U Low-Profile Vertical-Mount Server-Depth Wall Mount Rack Enclosure Cabinet
SRWF6U36|TC-SRWF6U36
Key Features
What's Included
- 6U vertical-mount rack saves valuable workspace
- Ideal for network closets and limited floor spaces
- Houses EIA-standard 19 in. rack equipment
Key Features
What's Included
- 6U vertical-mount rack saves valuable workspace
- Ideal for network closets and limited floor spaces
- Houses EIA-standard 19 in. rack equipment
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
What's Included
- 6U vertical-mount rack saves valuable workspace
- Ideal for network closets and limited floor spaces
- Houses EIA-standard 19 in. rack equipment
Eaton Tripp Lite
Eaton Tripp Lite SRWF6U36 SmartRack 6U Low-Profile Vertical-Mount Server-Depth Wall Mount Rack Enclosure Cabinet
SRWF6U36 | TC-SRWF6U36
Please sign in to view pricing and availability and to add to cart.
Accessories
ADI # 0E-C5EPP24
MODEL # 0E-C5EPP24
Sign In for Dealer Pricing
ADI # 0E-C6BL36
MODEL # 0E-C6BL36
Sign In for Dealer Pricing
ADI # 0E-C6KEYBL10
MODEL # 0E-C6KEYBL10
0E-C6KEYBL10|0E-C6KEYBL10
Sign In for Dealer Pricing
ADI # TC-SRFANWM
MODEL # SRFANWM
SRFANWM|TC-SRFANWM
Sign In for Dealer Pricing
ADI # TC-UPSHDKIT
MODEL # UPSHDEARKIT
UPSHDEARKIT|TC-UPSHDKIT
Sign In for Dealer Pricing
ADI # WT-OVRC1500U
MODEL # WT-OVRC1500U
WT-OVRC1500U|WT-OVRC1500U
Sign In for Dealer Pricing
ADI # WT-WB800IP12
MODEL # WT-WB800IP12
WT-WB800IP12|WT-WB800IP12
Sign In for Dealer Pricing
Overview
Specifications
Documents
Product Overview

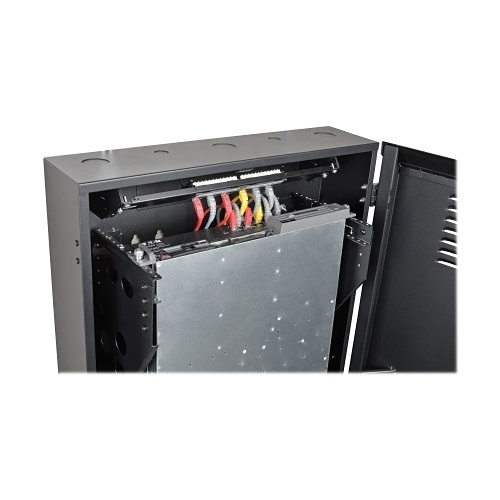

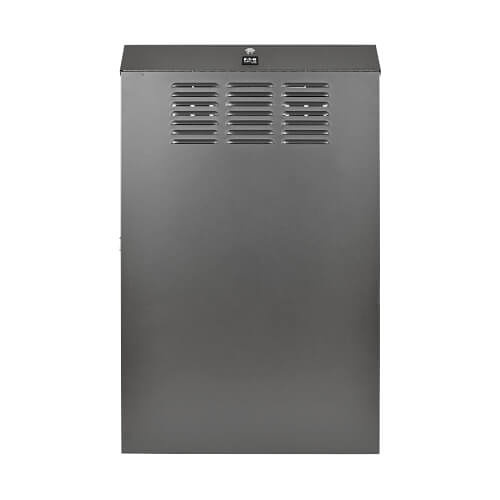

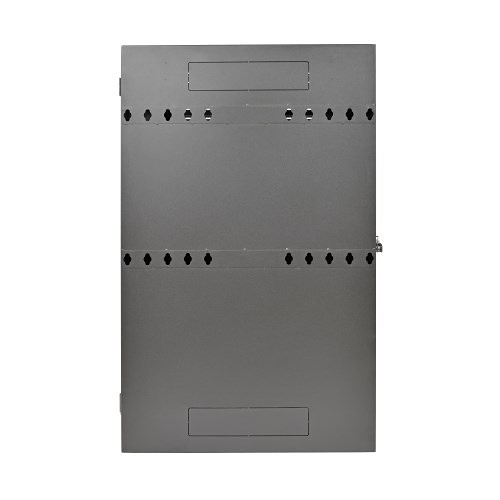

The SRWF6U36 SmartRack 6U Low-Profile Vertical-Mount Server-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19" rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 150 lb (68 kg). Because the low-profile cabinet mounts vertically, it extends less than 12" from the wall while housing equipment up to 36" deep, including 1U servers, UPS systems, battery packs and switches. In addition to 6U of rack space in the primary mounting area, it also includes a slide-out 2U mounting bracket at the top of the enclosure for patch panels up to 2.5" deep. The top panel and front door lock securely to help prevent damage, tampering or theft. The cabinet is vented, which allows air to flow freely and keeps equipment cool. The reversible front door can open left or right. Convenient top and bottom ports allow easy cable routing. The SRWF6U36 comes fully assembled and ready to mount to the wall. Equipment installation is easy with threaded mounting holes and hardware that support M6 or 12-24 mounting.
Main Features
- 6U vertical-mount rack saves valuable workspace
- Ideal for network closets and limited floor spaces
- Houses EIA-standard 19 in. rack equipment
- Supports equipment up to 36 in. deep
- Slide-out 2U bracket for patch panels
- 150 lb maximum load capacity
- Lockable top panel and front door for security
- Vented design keeps equipment cool
- Ships fully assembled for quick installation
- Complies with PCI DSS security standards
General Information
Name: Eaton Tripp Lite SRWF6U36 SmartRack 6U Low-Profile Vertical-Mount Server-Depth Wall Mount Rack Enclosure Cabinet
Category: Data Comm & Networking, Racks & Enclosures, Rack Cabinets & Frames
UPC Code: 037332190642
Country of Origin: China. Country of origin is subject to change.
Specifications
-
ADI Part Number TC-SRWF6U36 Brand Name Eaton Tripp Lite Manufacturer Eaton Manufacturer Part Number SRWF6U36 Product Line SmartRack Product Model SRWF6U36 Product Name SmartRack SRWF6U36 Rack Cabinet Product Type Rack Cabinet Weight 88.18 lb
-
Application/Usage Battery Pack, LAN Switch, Server, UPS Color Black Depth 11.5" Form Factor Wall Mount Height 43" Material Steel Maximum Weight Capacity 149.91 lb Rack Depth 36" Rack Height 6U Width 25.6"
-
Limited Warranty 5-Year
-
Assembly Required No Country of Origin CN Environmental Certification RoHS Environmentally Friendly Yes Package Contents - SRWF6U36 SmartRack 6U Low-Profile Vertical-Mount Server-Depth Wall-Mount Rack Enclosure Cabinet
- (12) M6 screws
- (12) M6 cup washers
- (12) 12-24 screws
- (2) Keys
- Owner’s manual
