Eaton Tripp Lite SRWO8U22 SmartRack Expandable Flat-Pack Low-Profile Switch-Depth Wall Mount Open Frame Rack, 18" (46cm), 150lb (68kg), 2-Post, 8U/12U/22U
SRWO8U22|TC-SRWO8U22
Eaton Tripp Lite SRWO8U22 SmartRack Expandable Flat-Pack Low-Profile Switch-Depth Wall Mount Open Frame Rack, 18" (46cm), 150lb (68kg), 2-Post, 8U/12U/22U
SRWO8U22|TC-SRWO8U22
Key Features
- Expandable 2-Post Open Frame Design
- Supports 8U, 12U, or 22U configurations
- Maximum load capacity of 150 lb (68 kgs)
Key Features
- Expandable 2-Post Open Frame Design
- Supports 8U, 12U, or 22U configurations
- Maximum load capacity of 150 lb (68 kgs)
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- Expandable 2-Post Open Frame Design
- Supports 8U, 12U, or 22U configurations
- Maximum load capacity of 150 lb (68 kgs)
Eaton Tripp Lite
Eaton Tripp Lite SRWO8U22 SmartRack Expandable Flat-Pack Low-Profile Switch-Depth Wall Mount Open Frame Rack, 18" (46cm), 150lb (68kg), 2-Post, 8U/12U/22U
SRWO8U22 | TC-SRWO8U22
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

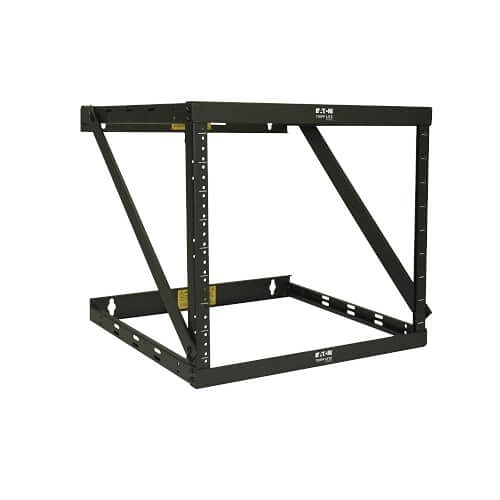

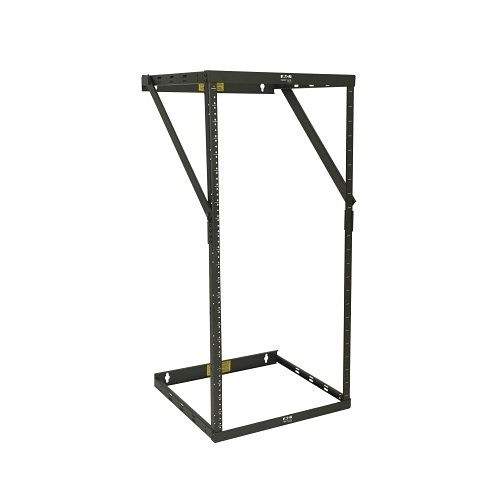

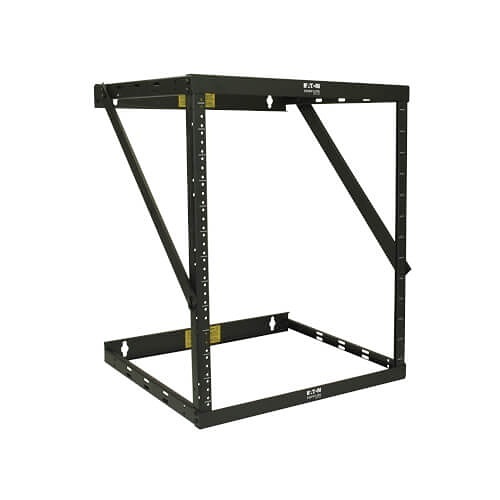

The SRWO8U22 SmartRack 8U/12U/22U Expandable Flat-Pack Low-Profile Switch-Depth Wall-Mount 2-Post Open-Frame Rack stores and organizes EIA-standard 19" rack equipment compatible with 2-post mounting in network wiring closets, back offices and other secure IT areas with limited floor space where a locked enclosure is not required. Mounted to the wall or resting on the floor, this rack offers fast, easy access to network components and cabling. Constructed from heavy-duty steel with a durable black powder-coated finish, the rack has a maximum load capacity of 150 lb (68 kg). The expandable design allows you to assemble the rack in an 8U, 12U or 22U configuration to meet your current needs, while leaving rack space in reserve for future expansion. The rack is simple to assemble and mount to the wall. Threaded 12-24 mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails accommodate equipment up to 18" deep, such as network switches and patch panels. Assembly and equipment-mounting hardware is included.
Main Features
- Expandable 2-Post Open Frame Design
- Supports 8U, 12U, or 22U configurations
- Maximum load capacity of 150 lb (68 kgs)
- Ideal for limited floor space areas
- Compatible with EIA-standard 19 in. rack equipment
- Easy wall-mount installation with 16 in. spaced holes
- Accommodates equipment up to 18 in. deep
- Includes assembly and mounting hardware
- Rack spaces numbered for easy reference
General Information
Name: Eaton Tripp Lite SRWO8U22 SmartRack Expandable Flat-Pack Low-Profile Switch-Depth Wall Mount Open Frame Rack, 18" (46cm), 150lb (68kg), 2-Post, 8U/12U/22U
Category: Data Comm & Networking, Racks & Enclosures, Rack Cabinets & Frames
UPC Code: 037332156778
Country of Origin: China. Country of origin is subject to change.
Specifications
-
ADI Part Number TC-SRWO8U22 Brand Name Eaton Tripp Lite Manufacturer Eaton Manufacturer Part Number SRWO8U22 Product Line SmartRack Product Model SRWO8U22 Product Name SmartRack SRWO8U22 Wall Mount Open Rack Frame Cabinet Product Type Rack Frame
-
Color Black Depth 18.2" Form Factor Wall Mount Material Steel Maximum Weight Capacity 150 lb Rack Height 8U|12U|22U Width 20.1"
-
Limited Warranty 5-Year
-
Country of Origin CN Environmental Certification RoHS Environmentally Friendly Yes
